4.3 An overview of the EXAKT 312
Front view

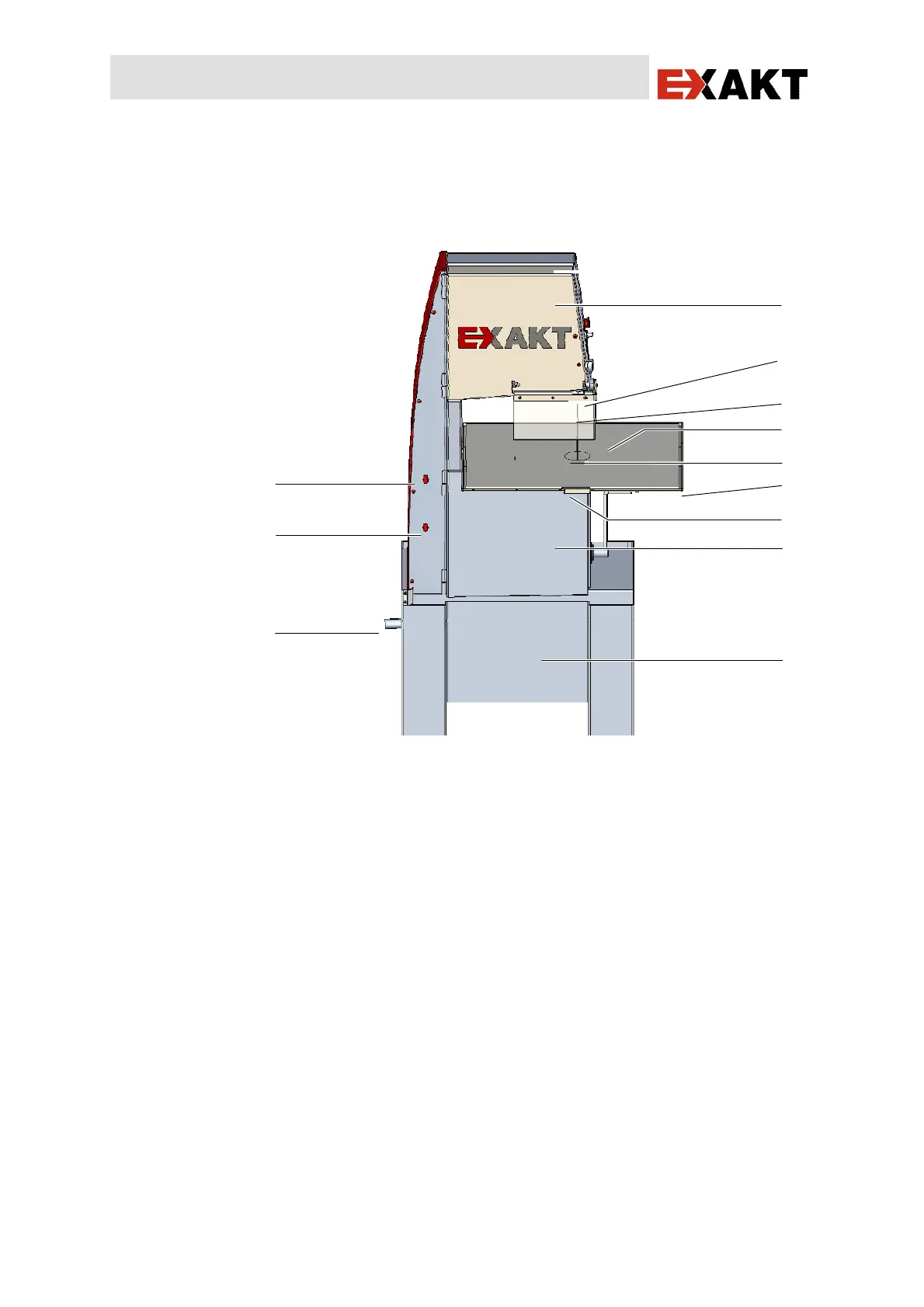

Abb. 2 Front side of unit
1 Splash guard 8 Door, bottom
2 Door, top
3 Cutting band 10 Drain pan to drain off the
waste water
4 Work plate (plastic) 11 Drain nozzle for the water
drain hose
5 Cutting band guide, work
table
12 Flush water control to
control the amount of flush
water
6 Work table tray to drain off the
waste water
13 Cooling water control to
control the cooling water
flow rate
7 Run-off plate, connected under
the work table tray
