Installation
Edition 10_2010 - 38891EN-900-AB
25

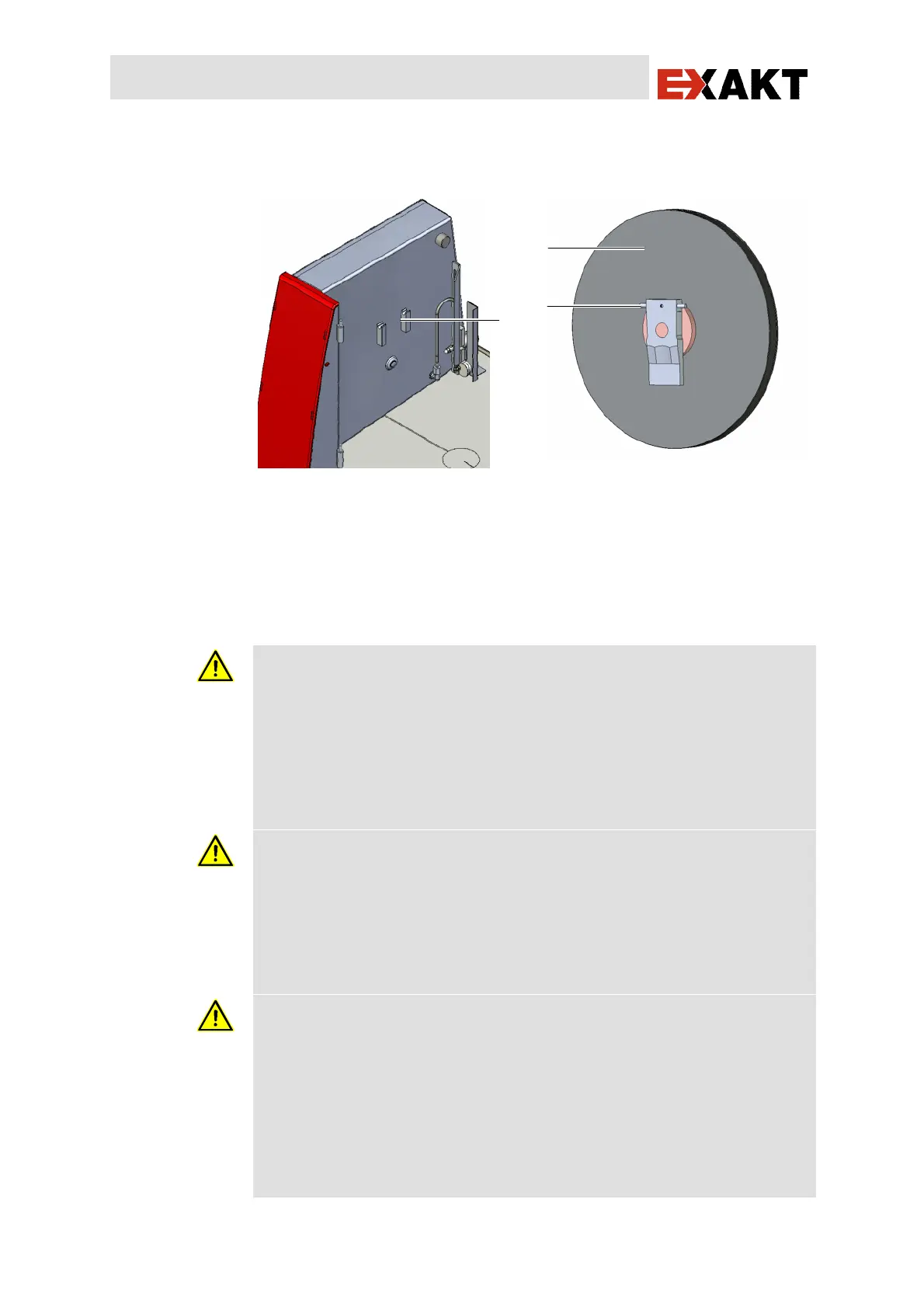

Fitting the top pulley
Abb. 10 Pulley mount
Abb. 11 Rear view of the pulley with
cross-pin at top
u Hold the top pulley 25 with the cross-pin 36 at the top.
u Place the cross-pin 36 in the pulley mount 35 on the saw base unit.
Fitting the cutting band
Caution – injuries and damage due to untensioned cutting band!
An untensioned cutting band can jump off the pulleys when the EXAKT
312 starts and cause injuries or damage.
u It is imperative you conclude the Fitting the cutting band work step
with the tensioning of the cutting band.
u Always check the position of the tensioning lever prior to starting the
EXAKT 312.
Attention – damage due to incorrect cutting bands!
The use of cutting bands that have not been recommended by EXAKT
can impair the safety and function of the EXAKT 312.
u Only fit the recommended original EXAKT diamond cutting bands.
u Never fit toothed cutting bands, as these are unsuitable for the
EXAKT 312 and will jeopardise safety.
Attention – damage to the cutting band!
The cutting band can be rendered unusable.
u Do not kink the cutting band.
u Carefully hold up the folded cutting band to unfold it.
u Do not place objects on the cutting band.
u On fitting the cutting band, always ensure there is an intact yellow belt
on the pulleys (see section 9.4 Annual maintenance).
