Exakt 312 - Disinfecting the Cutting Band Guide

Cleaning
Edition 10_2010 - 38891EN-900-AB
45
Disinfecting the cutting band guide
The cutting band guide can be removed from its bracket for cleaning and
disinfecting.

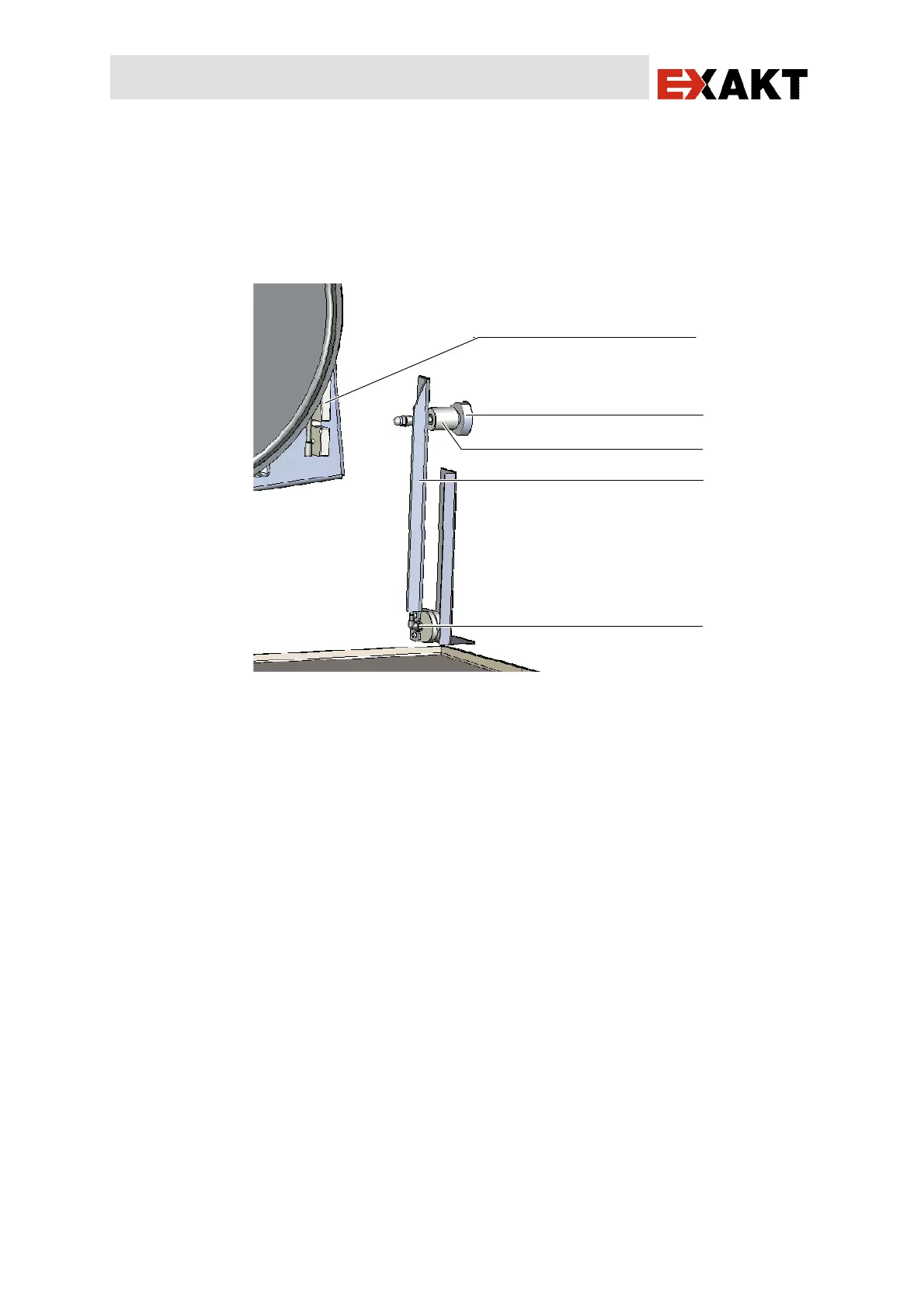

Abb. 33 Cutting band guide removed
u Completely undo the clamping bolt of the cutting band guide 19
(counter-clockwise).
u The slide 50 can now be removed from the
bracket 52 to the left and then to the front. For this purpose the nut 51
(of the clamping bolt) must be moved slightly to the left to clear the
bracket.
u If necessary pull the hose off the elbow fitting 39 to be able to better
disinfect the cutting band guide.
u Re-fit in the reverse order of removal.
The cutting band guide has now been disinfected.
52
19
51
50
39
