Installation
Edition 10_2010 - 38891EN-900-AB
24

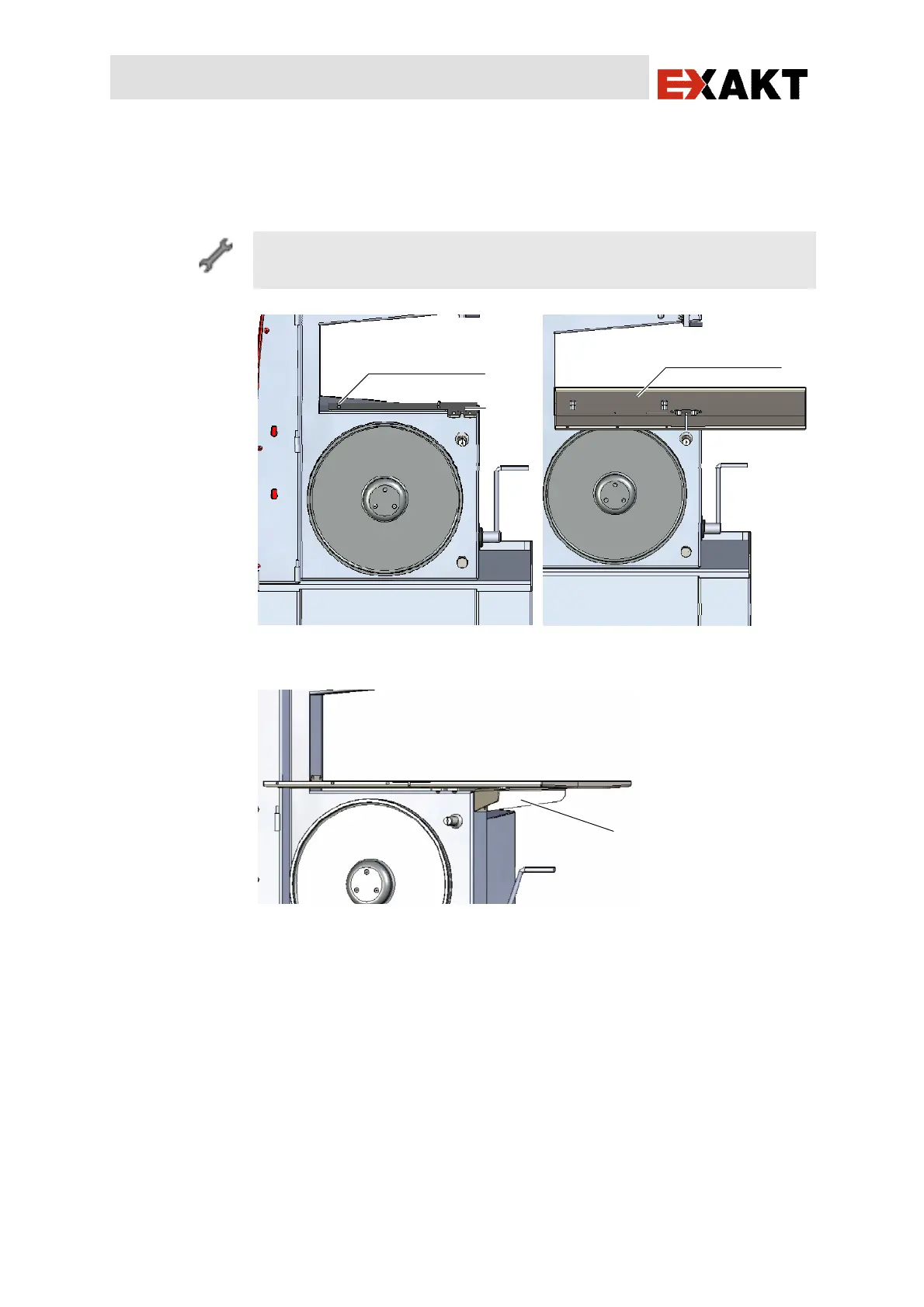

Assembly of the work table, 1st part
– Fitting the work table tray
You need an open-end spanner AF 14 for the 6 collared nuts.
Abb. 7 Base unit with base plate
Abb. 8 Work table tray mounted on base
plate
Abb. 9 Tray support fitted
u Place the work table tray 6 on the base plate 34 of the saw base unit
so that the screw holes in the tray are over the studs 33 on the base
plate.
u Fasten the work table tray using the collared nuts supplied.
u Fit the tray support 53 using the pre-assembled screws. After fitting
the work plate, fix so that the work plate is in good contact at the
edge.
