4-1-2. Installation Base and Parts
A firm and stable base must require the following approaches and conditions
a. Base area must comply with the base dimension of machine.
b. Only qualified architecture can ensure the construction of firm base.
c. Base must not locate on damping, oiling, and water-leaking area.
d. Required bolts, nuts, washers for the base installation must comply with the specifications of this
manual.

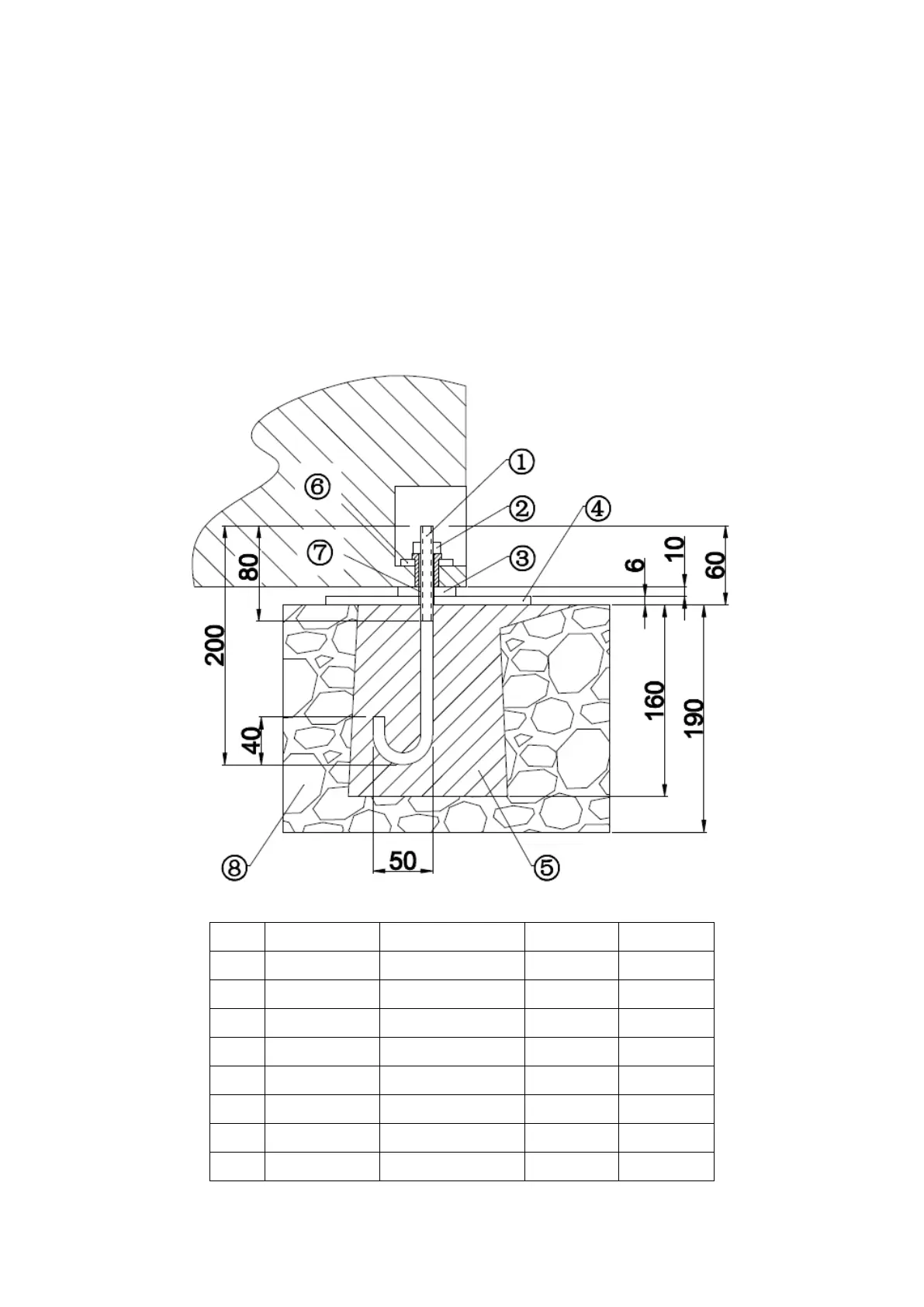

e. Please construct the base according to the following drawing.
Base Drawing and Parts List
