18

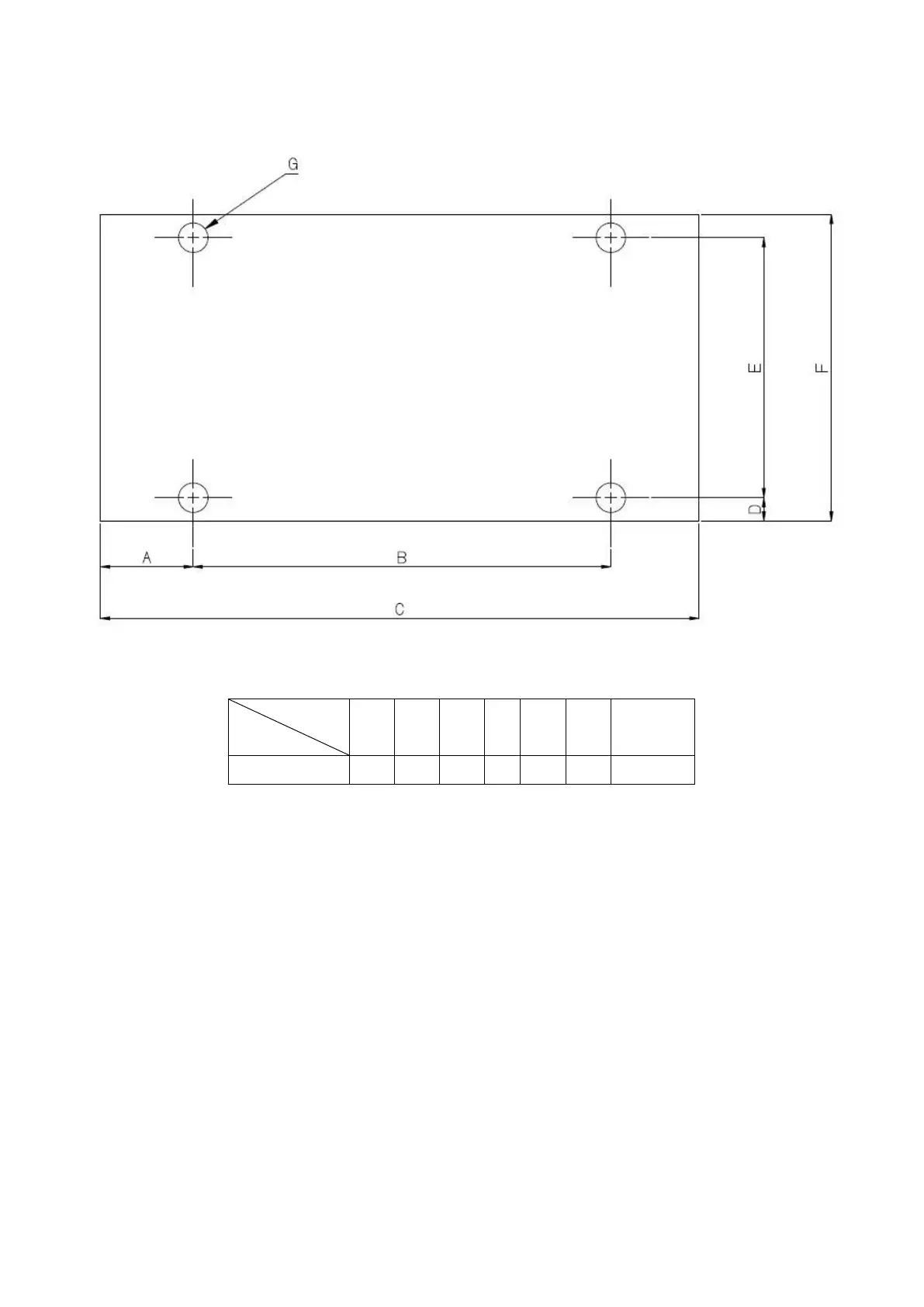

4-1-3. Drawing of Base Holes
Please construct the base according to the following holes drawing:
(Scale : mm)
ITEM
MODEL
A
B
C
D
E
F
G
KP-200
100
450
645
25
280
330
M16*2.0
4-1-4. Power Supply(Power , Grounding and Requirement of Power Supply at the User’s End)
a. AC Voltage : 3 phase AC220V or 380V or 400V or 415V ±10 % (Use transformer if necessary)
b. Frequency: 50 or 60 HZ ±1 %
c. Power Capacity: 12 KVA
d. Main circuit breaker: 20 A
e. Power cable must meet CE standard.
f. Cable must be above 2.0 mm
2
g. Coloring of cable must meet CE standard.
h. Connector end of cable must be with device of over-loading break.
i. Grounding cable must be 2.0 mm
2
, <50Ω, yellow/green.
j. Surroundings must be 0°C to 45°C, humidity <90 %.
k. Voltage Steady state voltage: 0,9 to 1,1 of nominal voltage.
