ITEM 5 d
Malfunction
Oil level of pressure adjusting value decreases abnormally
Cause
d. Oil seal or O ring on top cover of cylinder and piston bar
Trouble shooting
d. Replace O ring of P-28, or UPH 28*43*10 of oil seal, in the event two seals
requiring replacements, a dust seal of 36*28*6T must be replaced together as

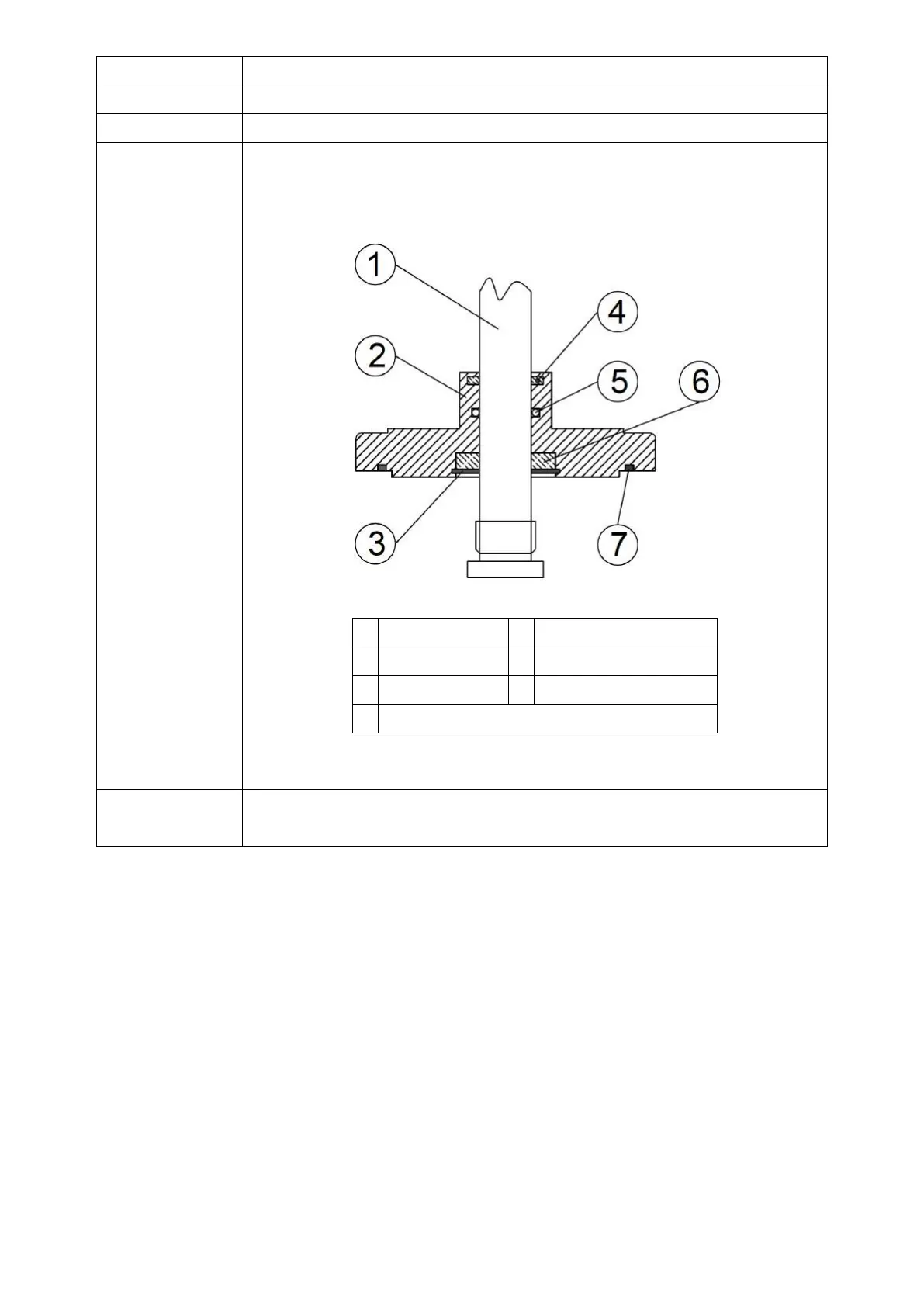

following illustration:
1
Big Piston Bar
2
Top Cover of Cylinder
3
C Clasp RTW-43
4
Dust Seal 36*28*6
5
O Ring P-22A
6
Oil Seal UPH 28*43*10
7
O Ring KP-200 /G105
Remark
d. Repaired by qualified technician, dismantled parts must be placed in clean
place. Replenish oil after replacement, refer the manual instruction
