61
ITEM 5 e
Malfunction
Oil level of pressure adjusting value decreases abnormally
Cause
e. Magnetic valve or O ring between which and cylinder deteriorated or
damaged
Trouble shooting

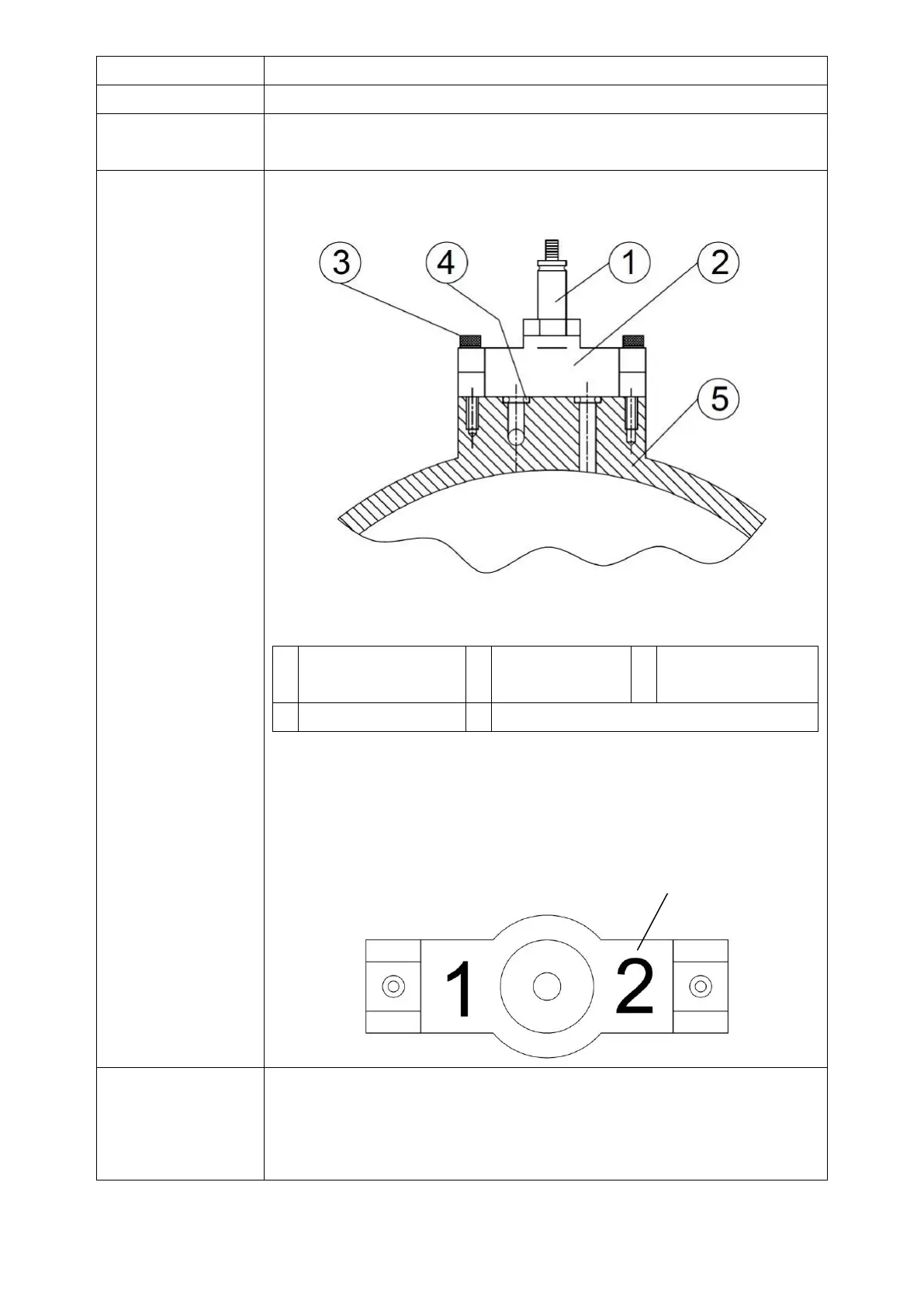

e. Replace O ring as following illustration:
1
Spring Tube of
Magnetic Valve
2
Base of
Magnetic Valve
3
Fixing Bolt of
Magnetic Valve
4
O Ring P-9
5
Bottom Cover of Cylinder
O ring○
4
must be placed inside the trough without outstanding part
The sections marked 1 and 2 on top of magnetic valve can’t be exchanged,
or it may cause malfunction of hydraulic oil, as following illustration:
Remark
1. Repaired by qualified technician, ensure the O ring placed inside the
trough completely to avoid leaking of oil
2. To discharge the oil to 1/3 to avoid wasting
3. Parts subject to local dealer or producer
The section can’t be exchanged, must face operator
