METALJET D2+ INSTALLATION
Revision 19, November 2016 Page 4-4

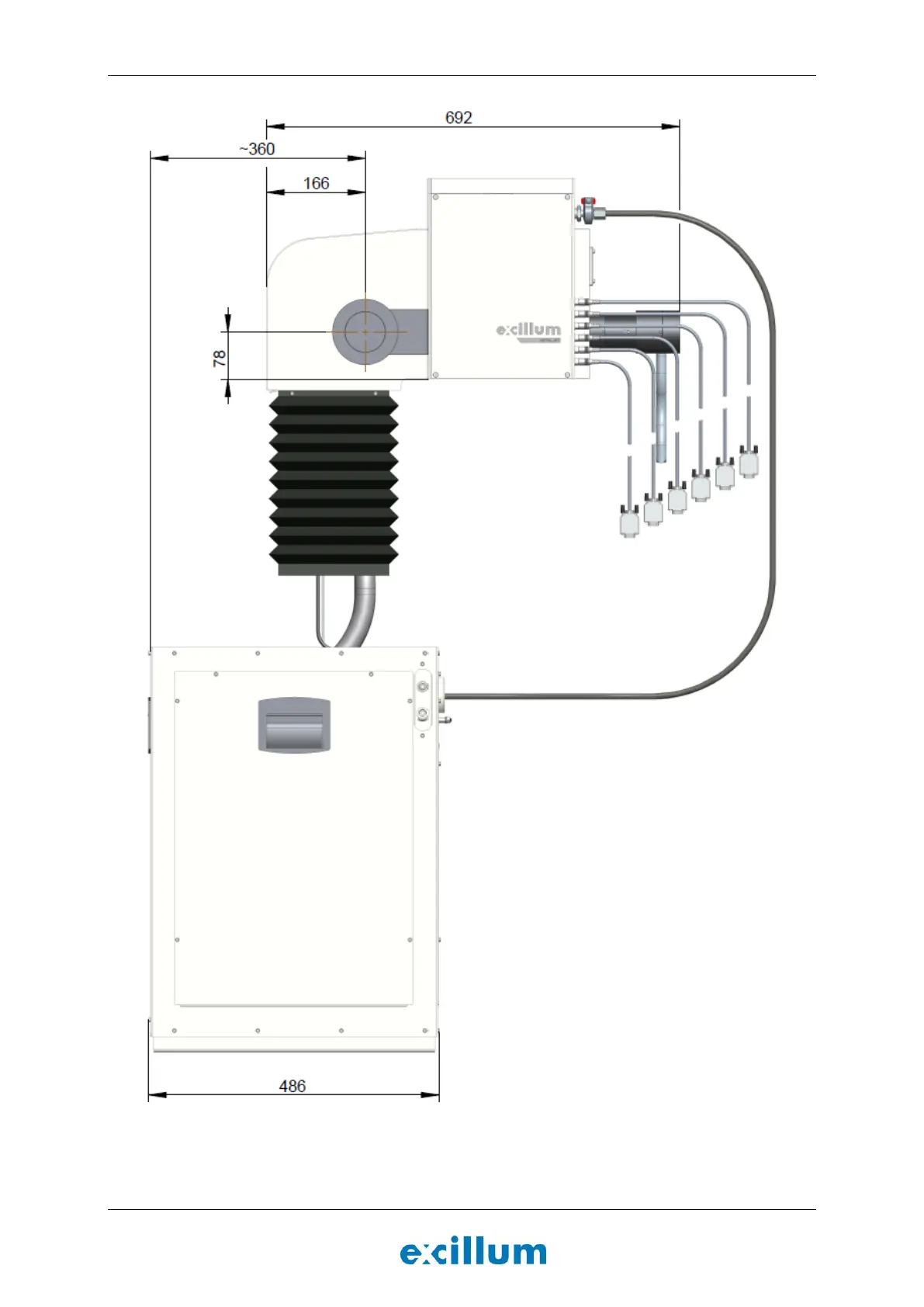

Figure 4-2. The minimum distance from the lid of the pump box and the base plate is 45 cm, and the maximum
distance is 55 cm. Also, the jet-exit port should be placed straight above the rectangular hole in the pump-box
lid.
