Test Configurator Overview
Test Configurator Overview
The Test Configurator tab displays the interconnected blocks composing
the test structure. Each block of the test structure gives an overview of its
configuration/status. Availability of each block depends on the selected test
application and its structure. Arrows are used to indicate the
interconnection between blocks as well as the direction of the clock and
data flow. Tap on a block to change the configuration parameters of this
block.
From the Test menu, tap Setup, and the Test Configurator tab.
Intelligent Apps:

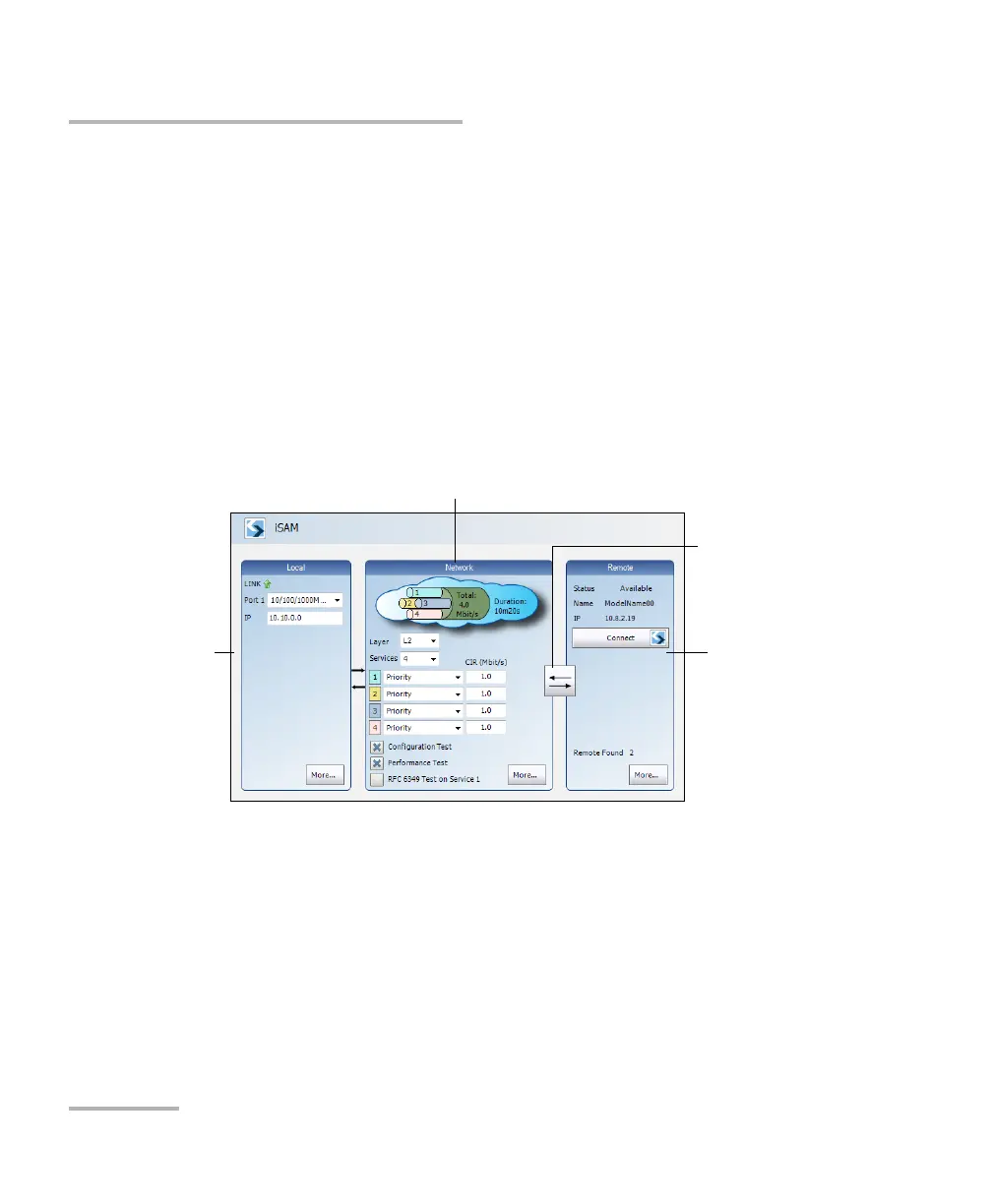

The block arrangement represents the network under test. From any
block, either select the basic parameters or click on More for all
settings.
Local block displays and allows to change basic interface settings.
Tap on the More button to access all settings.
Network block displays and allows to change basic test settings.
Tap on the More button to access all settings.
Remote
Operation Mode
Remote BlockLocal Block
Network Block
To Next Page
