Selecting and Starting a Test
76 FTB-700G/800 Series
Transport Test Applications
Transport Test Applications
To select, configure, and start a Transport test:
1. From the test menu, tap Setup.
2. From the Test Applications tab, under Transport, tap a test icon.
3. From the Test Configurator tab configure the signal structure and its
parameters.
3a. Tap the Modify Structure button to set the basic structure of the
test such as the interface/rate, connector, etc. (refer to Modify
Structure Button on page 97).
3b. Tap the interface block to configure the signal parameters (refer
to page 87).
3c. For an embedded signal, tap the protocol block to configure the
signal (refer to page 87).

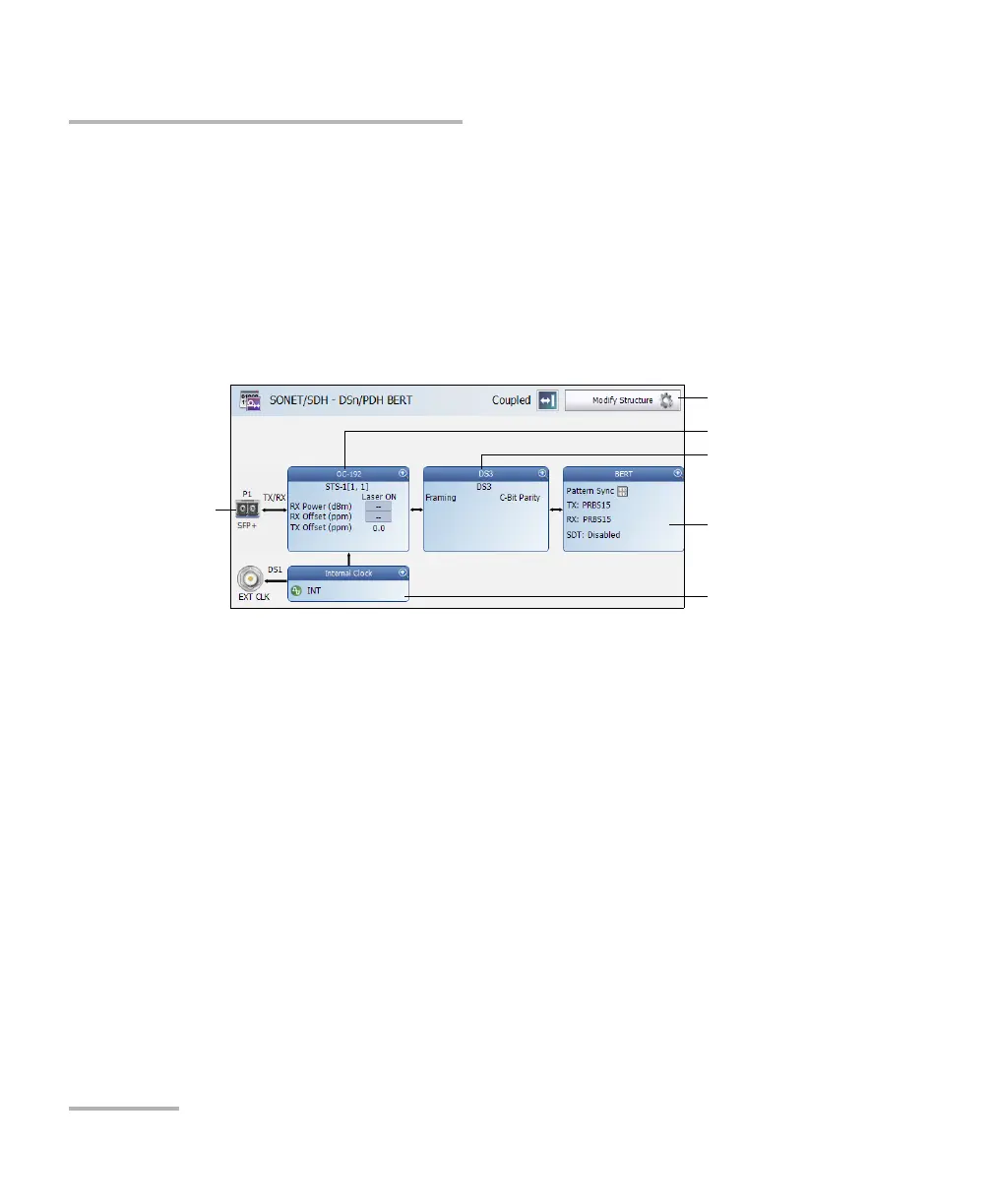

Modify Structure
Protocol Block
Te st B l o ck
Clock Block
Interface Block
Physical
Interface Port
