1 Holding the QSFP+ connector by its sides, insert the connector into the port on the switch as shown

in the following ﬁgures.

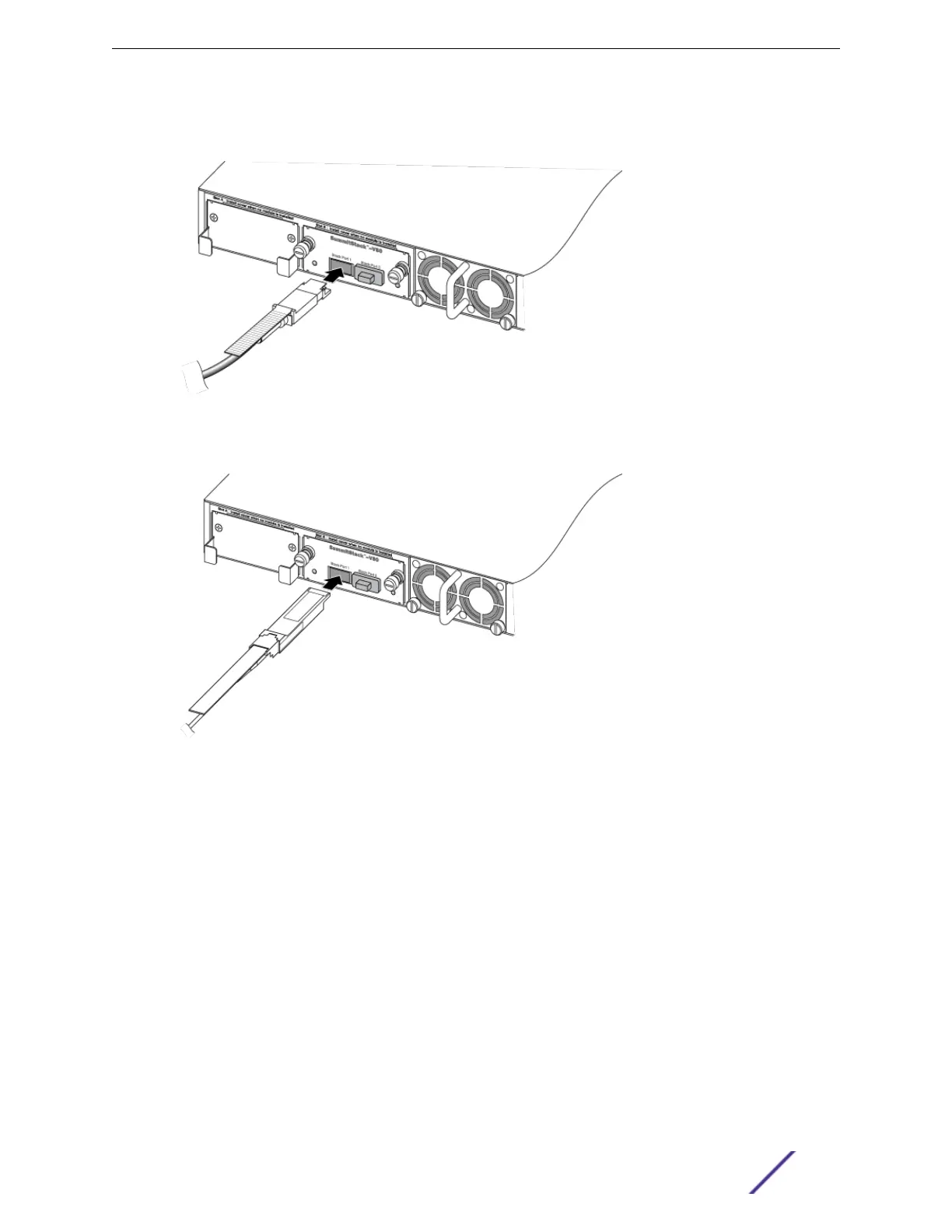

Figure 132: Connecting a QSFP+ Passive Copper Direct-Attach Cable to a

SummitStack-V Module

Figure 133: Connecting a QSFP+ Active Optical Direct-Attach Cable to a

SummitStack-V Module

2 Push the connector into the port until you hear it click into place.

Connecting Your Stack to the Management Network

Before you can conﬁgure ExtremeXOS for a new stack, your management console must be connected

to at least one switch in the stack.

Connect your management console to the Ethernet management port on the switch that will become

the stack master node. If you plan to conﬁgure redundancy, we recommend connecting to the console

ports of all switches in the stack that will be master-capable.

If you followed the cabling examples in Connecting the Switches to Form the Stack Ring on page 170,

and if you use the Easy Setup conﬁguration procedure, only slots 1 and 2 will be allowed to become the

master node. However, you may connect all switch management ports in the stack if you choose to do

Building Stacks

ExtremeSwitching and Summit Switches: Hardware Installation Guide 177
