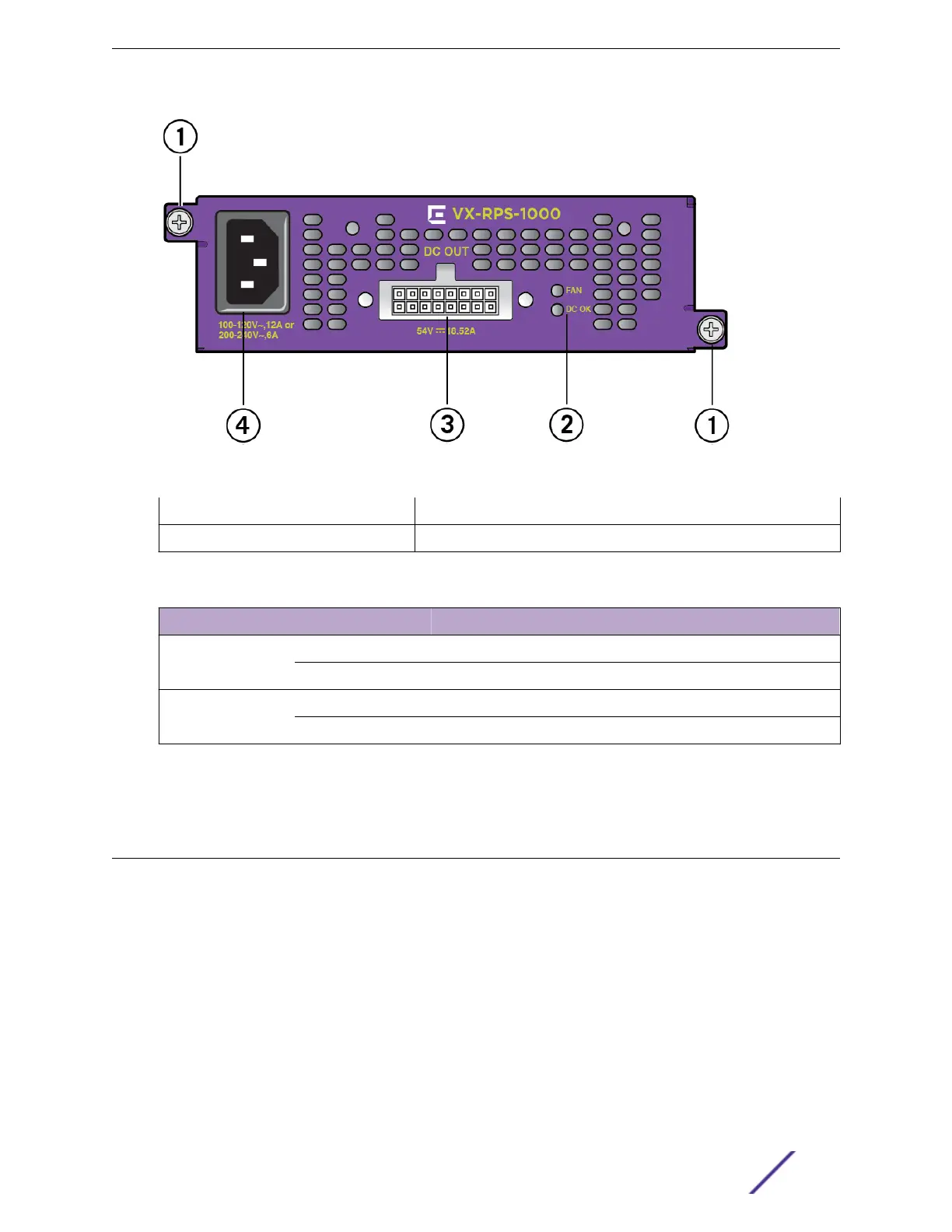

Figure 102: VX-RPS-1000 Front Panel
1 = Captive screws 3 = Connector to port extender
2 = Status LEDs 4 = AC power input connector
Table 38: VX-RPS-1000 LED Status Definitions
LED LED Color Status
AC OK Green AC input within operational range
O No AC voltage or AC voltage is outside the operational range
DC OK Green DC input within operational range
O No DC voltage or DC voltage is outside the operational range
For technical specifications, including pin locations and functions, see VX-RPS-1000 Redundant Power
Supply Technical Specifications on page 391.
Replaceable Internal Power Supplies
Several ExtremeSwitching switch models have two bays for installing one or two replaceable AC or DC
power supplies.
In a redundant power configuration, both power supplies are fully fault-tolerant and load-sharing. You
can remove one power supply without interrupting switch operation.
Specific switch series and models are compatible with dierent power supply models, as shown in the
following table:
Power Supplies for Use with Your Switch
ExtremeSwitching and Summit Switches: Hardware Installation Guide 104

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
