Extreme Networks ExtremeSwitching X440-G2 Series User Manual

3 Remove the cover plate from the VIM or clock module slot:
a Remove the retaining screws at the top corners of the slot cover plate, and set the screws aside
in a safe place.
b Save the retaining screws to secure the new module in the switch.
c Pull the cover plate away from the module slot.

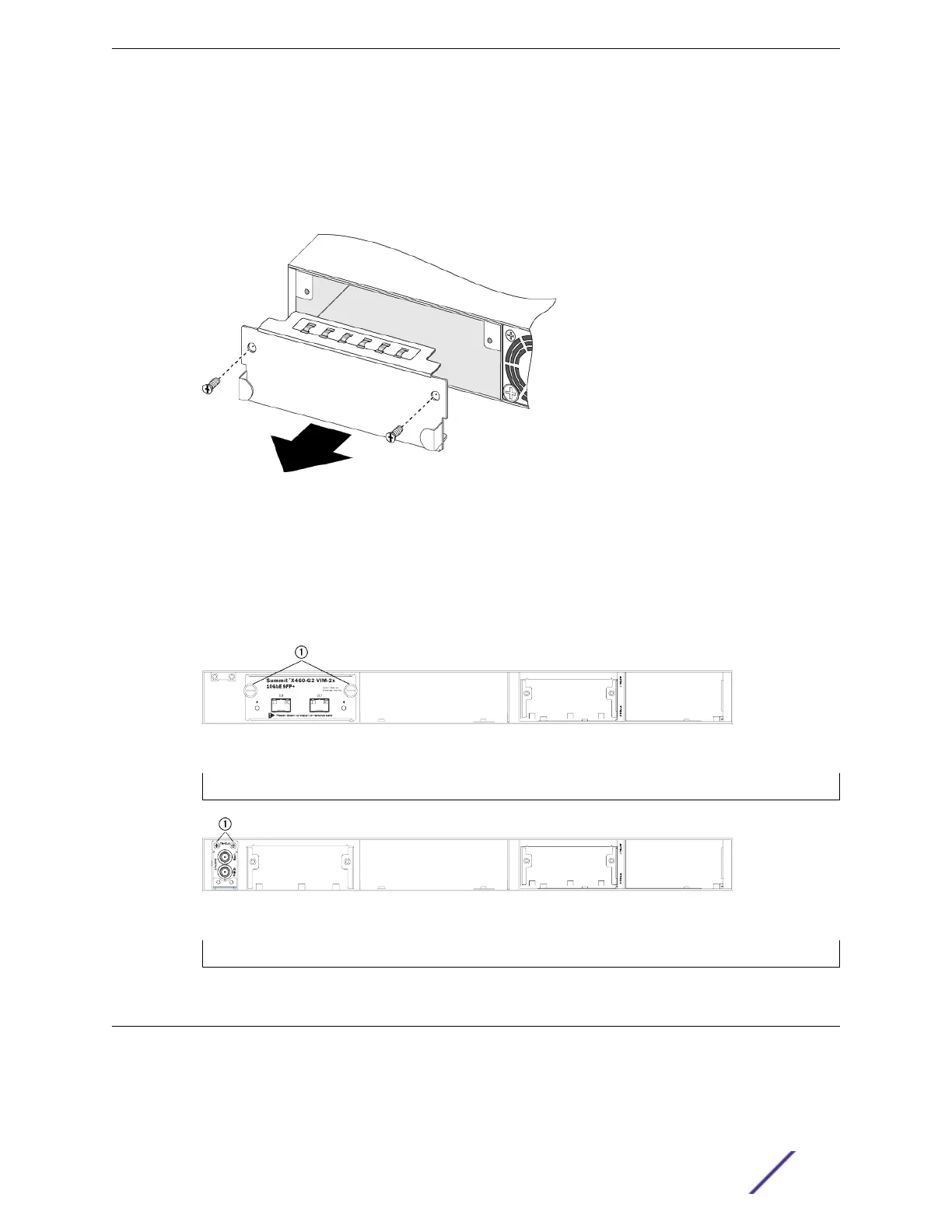

Figure 201: Removing a slot Cover Plate (VIM slot cover shown)
4 Remove the new VIM or clock module from its anti-static packaging.
5 Install the VIM or clock module in the switch:
a Carefully slide the module into the switch.
b Insert and tighten the retaining screws you removed in step 3. The clock module uses Phillips
screws and the VIM modules use slotted screws.
Figure 202: Tighten Screws on the Inserted VIM Module
1 = VIM module retaining screw locations
Figure 203: Tighten Screws on the Inserted Clock Module
1 = clock module retaining screw locations
Install an SSD Module
This section describes how to install a Solid-state Drive (SSD) module in the rear slot of a switch.
You need the following tools and materials to install an SSD module:
Installing Expansion Modules
ExtremeSwitching and Summit Switches: Hardware Installation Guide 259

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
