5 Connect the ground wire to the grounding point as follows:
a Loosen the screw enough to allow the spade terminal to slide underneath the captive square
washer.

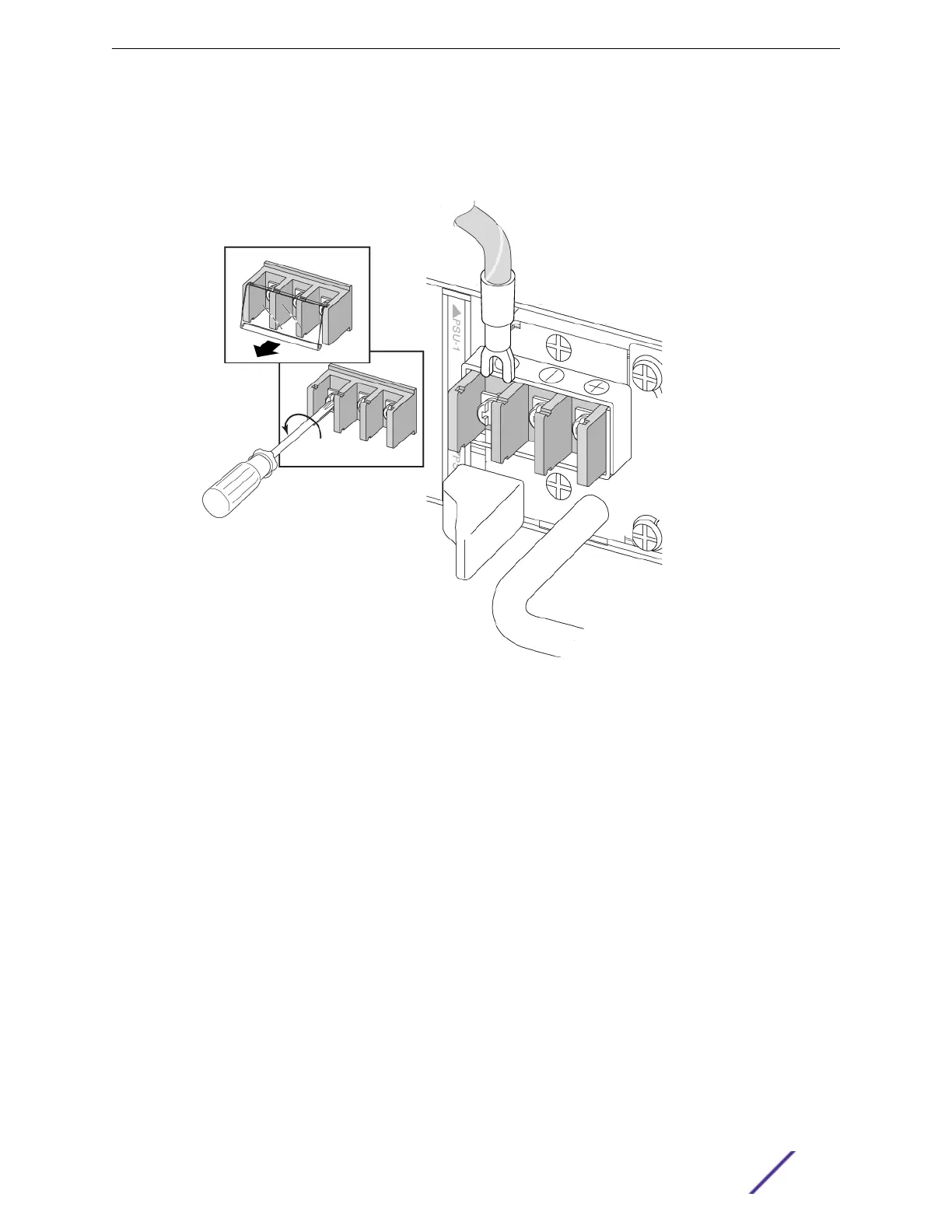

Figure 150: Connecting the Ground Wire
b Slide the spade terminal of the ground wire under the captive square washer.
Installing Your Extreme Networks Switch
