5 Connect the half-duplex ports (HD1 - HD4) to your half-duplex devices.
Mounting a Half-Duplex to Full-Duplex Converter on a Wall
Refer to Installing a Half-Duplex to Full-Duplex Converter on page 256 for installation options for the
Half-Duplex to Full-Duplex Converter.
To mount a Half-Duplex to Full-Duplex Converter unit on a wall, follow these steps:
1 Drill two holes in the wall, each 4 mm (0.16 in.) in diameter.
The holes should be 10.5 cm (4.13 in.) apart so that they correspond to the locations of the holes in
the bottom of the converter.
2 Insert an anchor bolt (not provided) into each hole in the wall.
3 Place a screw (not provided) into each anchor bolt and tighten so that the screw head protrudes
slightly from the wall.
4 Place the converter onto the screws and gently lower it so that it locks into place.
5 Connect the converter to its power adapter, following the instructions in Connecting a Half-Duplex
to Full-Duplex Converter to its Power Adapter on page 257.
6 Connect the full-duplex ports (FD1 - FD4) to the switch.
7 Connect the half-duplex ports (HD1 - HD4) to your half-duplex devices.
Connecting a Half-Duplex to Full-Duplex Converter to its Power Adapter
Before connecting the Half-Duplex to Full-Duplex Converter to power, install it using one of the options
described in Installing a Half-Duplex to Full-Duplex Converter on page 256.
The Half-Duplex to Full-Duplex Converter operates on DC power, which it receives from its power
adapter.
Connection points to the power adapter are located on the sides of the converter, as shown in Figure
200.

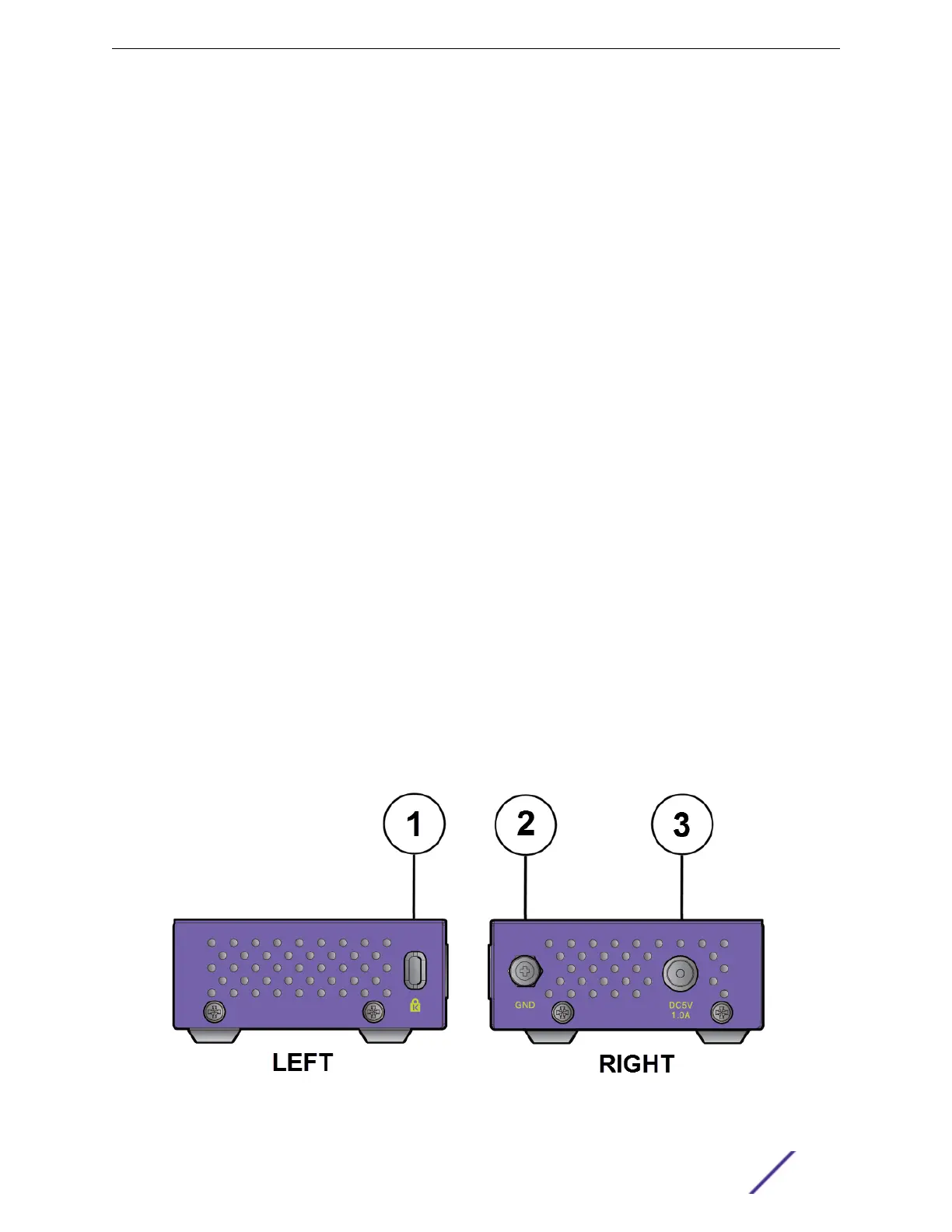

Figure 200: Half-Duplex to Full-Duplex Converter: Side Panels
Installing Expansion Modules
ExtremeSwitching and Summit Switches: Hardware Installation Guide 257
