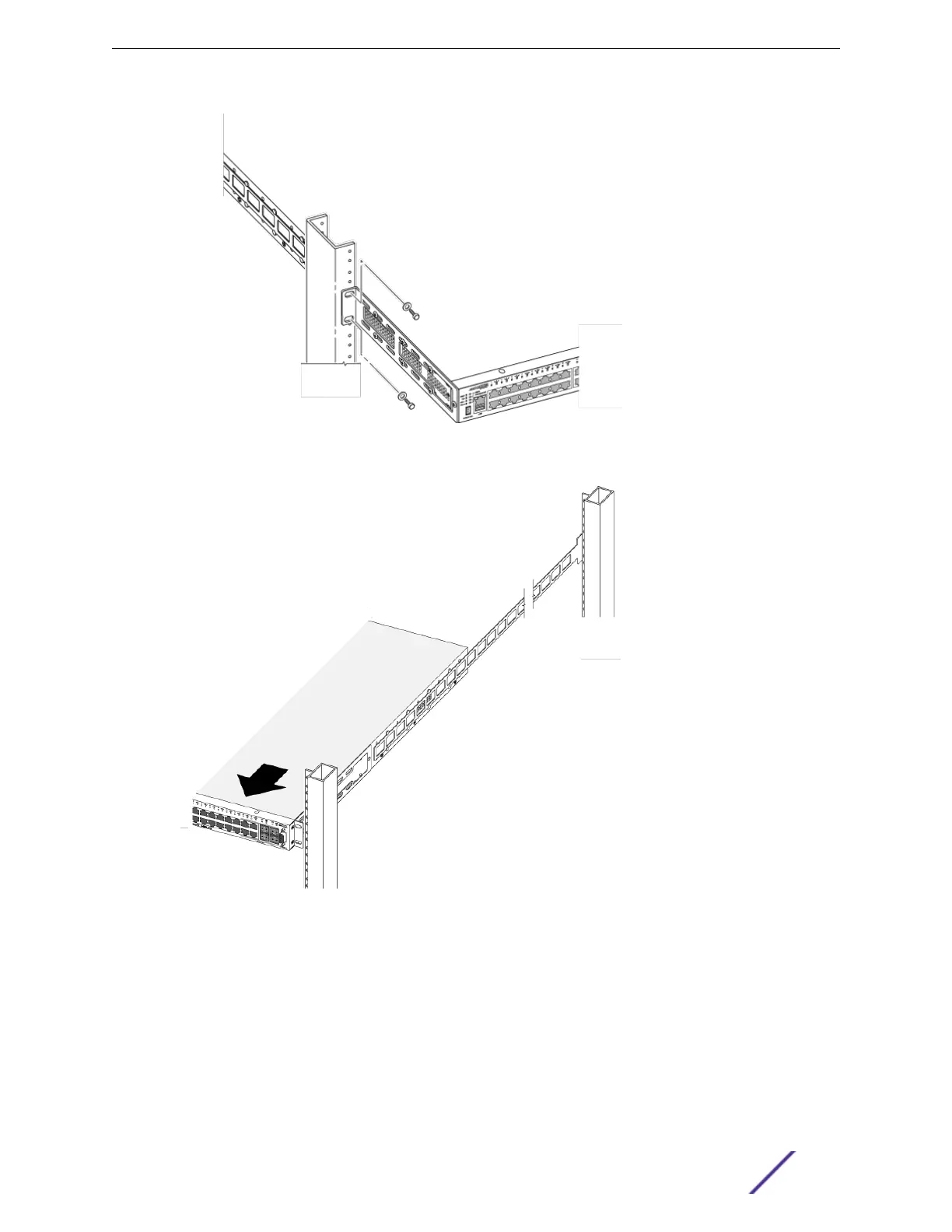

Figure 251: Removing a Front-Mounted Switch from a Two-Post Rack
Figure 252: Removing the Switch from a Four-Post Rack
3 Place the switch on a secure, flat surface.
4 Using a #2 Phillips screwdriver, remove the front mounting brackets from the sides of the switch.
5 For four-post installations, remove the rear mounting brackets from the rear rack posts.
Removing Switches from Service
ExtremeSwitching and Summit Switches: Hardware Installation Guide 314
