Extreme Networks ExtremeSwitching X440-G2 Series User Manual

•
One rear panel VIM slot.
•
One rear panel TM-CLK (clock) slot.
•
Rear dual PSU power slots with front-to-back or back-to-front airflow.
•
One rear slot for fan module with front-to-back or back-to-front airflow.

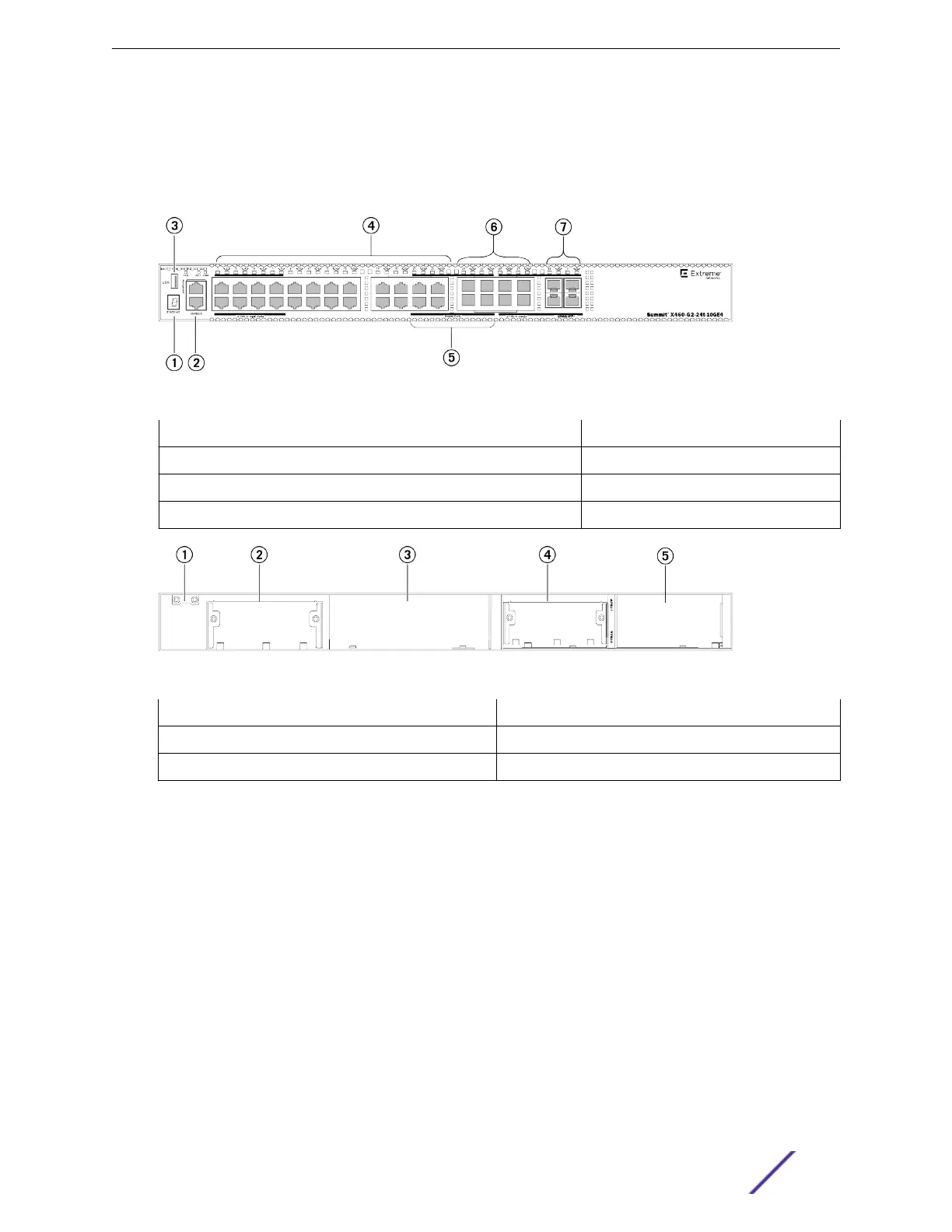

Figure 43: X460-G2-24t-10GE4 Front Panel
1 = Stack number indicator 5 = Combo ports
2 = Console port/Ethernet management port 6 = SFP ports
3 = USB port 7 = SFP+ 10GBASE-X ports
4 = 10/100/1000BASE-T ports
Figure 44: X460-G2-24t-10GE4 Rear Panel
1 = TM-CLK (clock) slot cover
4 = Blank power supply cover
2 = VIM slot cover 5 = Power supply slot
3 = Fan module slot
ExtremeSwitching X460-G2-24x-10GE4 Switch Ports and Slots
X460-G2-24x-10GE4 switch ports and slots include:
•
24 front panel ports of 100/1000BASE-X (ports 1-24, four of which are shared with
10/100/1000BASE-T ports).
•
Four front panel combo (shared) 10/100/1000BASE-T ports and four dedicated 10/100/1000BASE-T
ports.
•
Four front panel ports of 10GBASE-X SFP+ (ports 29-32, with two of these ports configurable to be
stacking ports).
•
One front panel USB port.
•
Ethernet management port 1 x 10/100/1000BASE-T.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
ExtremeSwitching Switches
ExtremeSwitching and Summit Switches: Hardware Installation Guide 44

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
