Rear dual PSU power slots with front-to-back or back-to-front airflow.
•
One rear slot for fan module with front-to-back or back-to-front airflow.

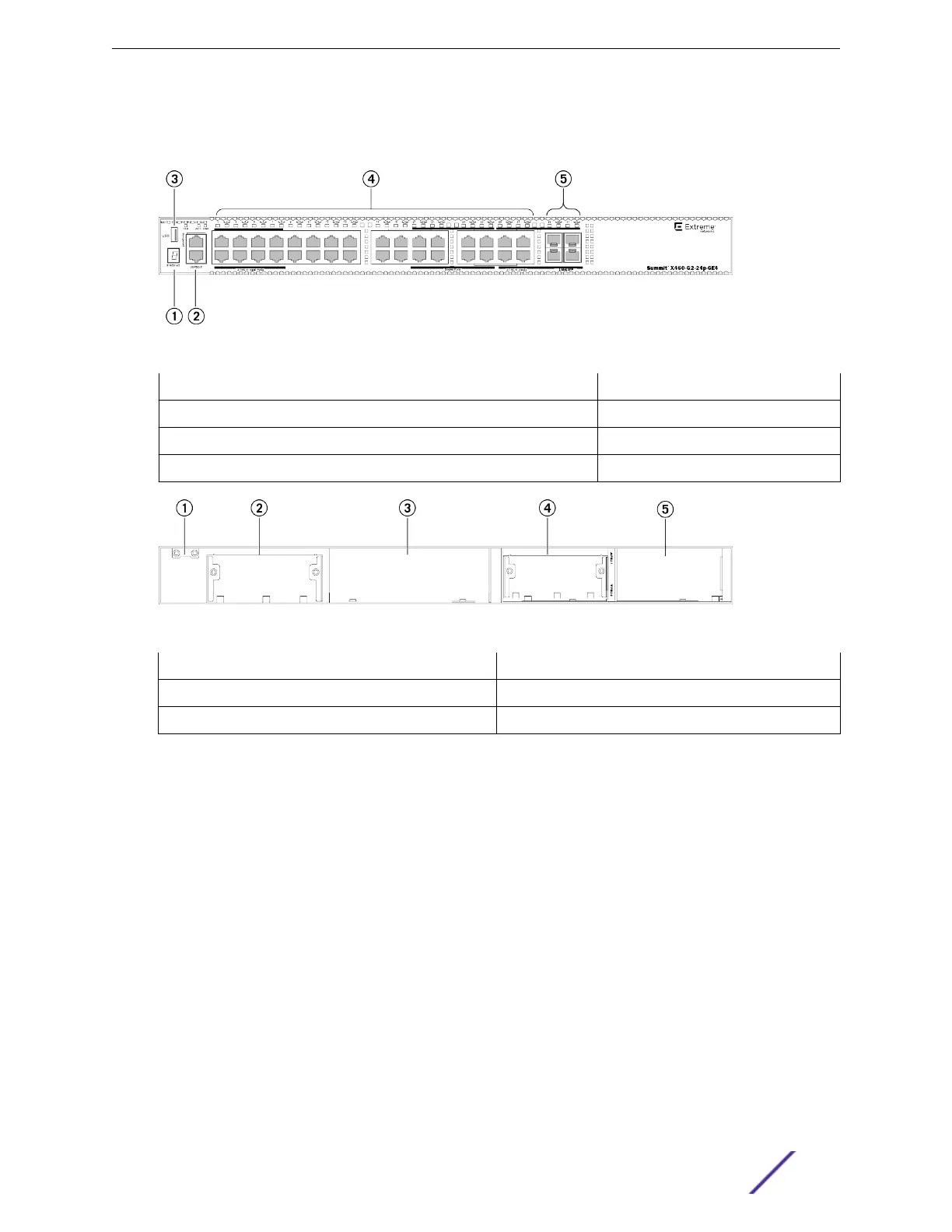

Figure 47: X460-G2-24p-GE4 Front Panel
1 = Stack number indicator 5 = Combo ports
2 = Console port/Ethernet management port 6 = SFP ports
3 = USB port 7 = SFP 1GBASE-X ports
4 = PoE+ 10/100/1000BASE-T ports
Figure 48: X460-G2-24p-GE4 Rear Panel
1 = TM-CLK (clock) slot cover
4 = Blank power supply cover
2 = VIM slot cover 5 = Power supply slot
3 = Fan module slot
ExtremeSwitching X460-G2-24p-10GE4 Switch Ports and Slots
X460-G2-24p-10GE4 switch ports and slots include:
•
24 front panel PoE+ ports of 10/100/1000BASE-T (ports 1-24, four of which are shared with SFP
ports).
•
Four front panel combo SFP ports and four dedicated SFP ports (100/1000BASE-X).
•
Four front panel ports of 10GBASE-X SFP+ (ports 29-32, with two of these ports configurable to be
stacking ports).
•
One front panel USB port.
•
Ethernet management port 1 x 10/100/1000BASE-T.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
One rear panel VIM slot.
•
One rear panel TM-CLK (clock) slot.
ExtremeSwitching Switches
ExtremeSwitching and Summit Switches: Hardware Installation Guide 46
