One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
•
One rear redundant power supply connector.

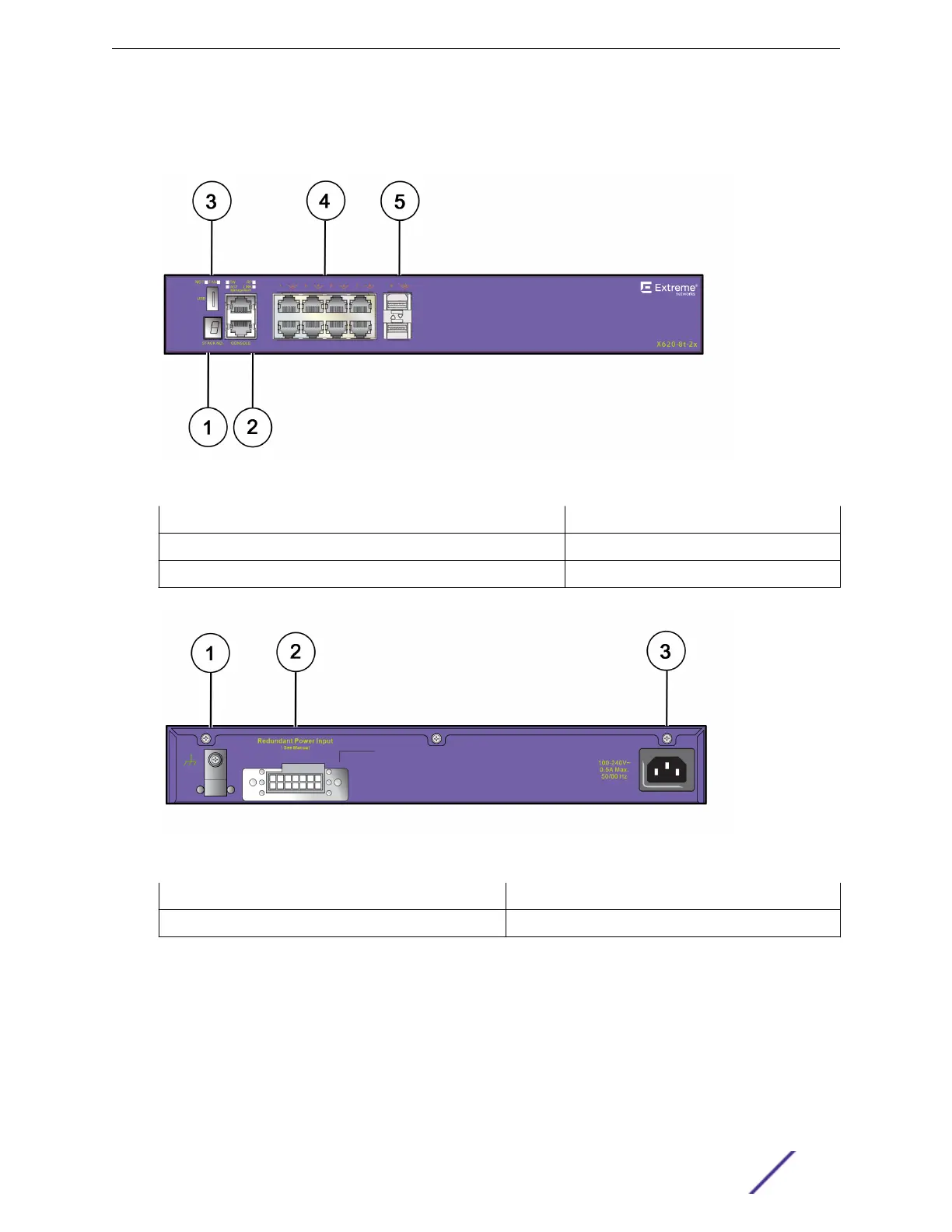

Figure 72: ExtremeSwitching X620-8t-2x Front Panel
1 = Stack number indicator 4 = 100Mb/1 Gb/10GBASE-T ports
2 = Console port/Ethernet management port 5 = 100Mb/1 Gb/10GBASE-X SFP+ ports
3 = USB port (active with ExtremeXOS version 22.2 or later)
Figure 73: ExtremeSwitching X620-8t-2x Rear Panel
1 = Grounding lug
3 = AC power input socket
2 = Redundant power input
ExtremeSwitching X620-10x Switch Ports and Slots
The ExtremeSwitching X620-10x switch ports and slots include:
•
10 front panel SFP+ ports of 100Mb/1 Gb/10GBASE-X SFP+.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
