Extreme Networks ExtremeSwitching X440-G2 Series User Manual

•
Ethernet management port (10/100/1000BASE-T).
•
One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
•
One rear slot for fan module with front-to-back or back-to-front airflow.
•
Rear dual PSU power slots with front-to-back or back-to-front airflow.

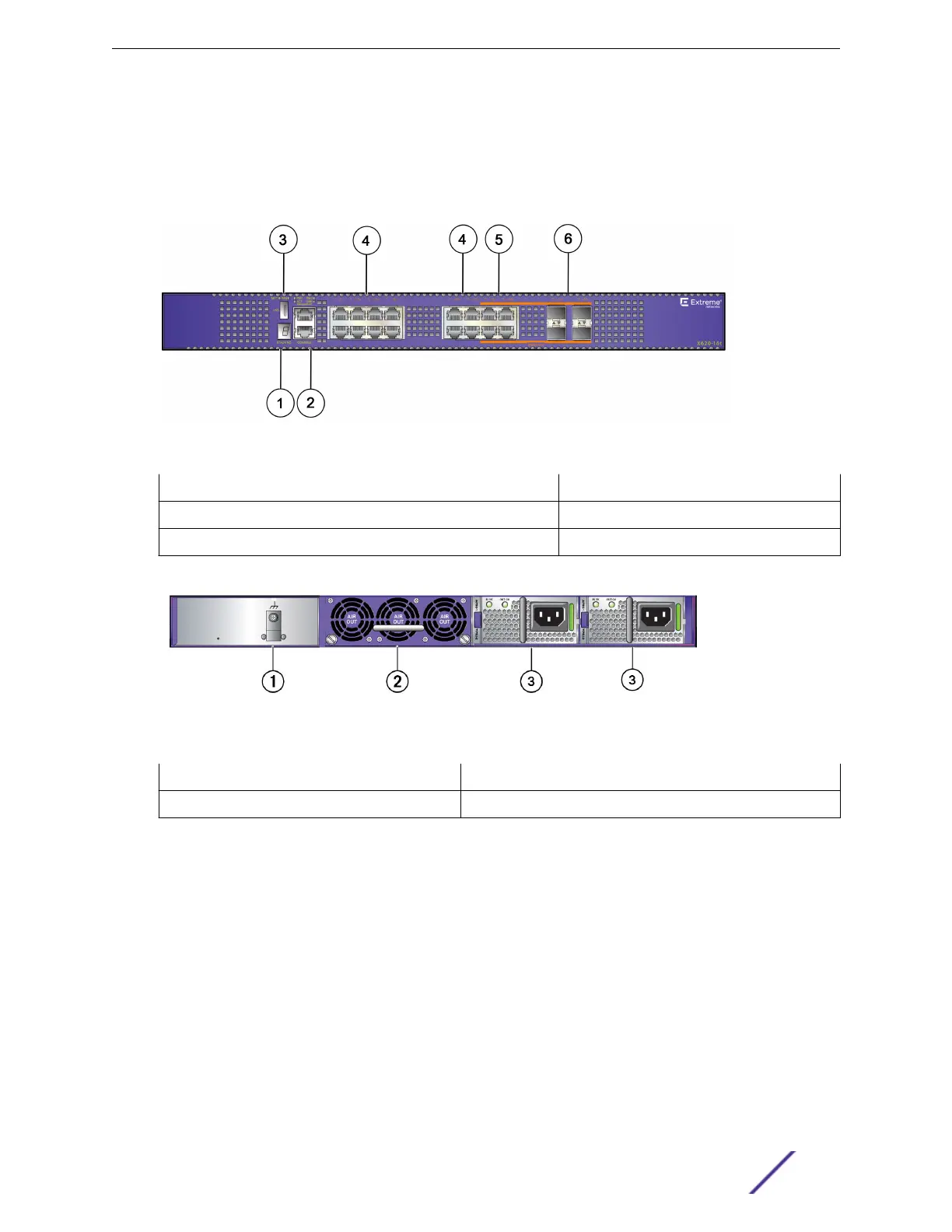

Figure 76: ExtremeSwitching X620-16t Front Panel
1 = Stack number indicator 4 = 100Mb/1 Gb/10GBASE-T ports
2 = Console port/Ethernet management port 5 = 100Mb/1 Gb/10GBASE-T combo ports
3 = USB port (active with ExtremeXOS version 22.2 or later) 6 = 1 Gb/10GBASE-X SFP+ combo ports
Figure 77: ExtremeSwitching X620-16t Rear Panel
1 = Grounding lug
3 = AC power supplies
2 = Fan module
ExtremeSwitching X620-16x Switch Ports and Slots
The ExtremeSwitching X620-16x switch ports and slots include:
•
16 front panel SFP+ ports of 100Mb/1 Gb/10GBASE-X.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
Ethernet management port (10/100/1000BASE-T).
•
One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
•
One rear slot for fan module with front-to-back or back-to-front airflow.
•
Rear dual PSU power slots with front-to-back or back-to-front airflow.
ExtremeSwitching Switches
ExtremeSwitching and Summit Switches: Hardware Installation Guide 67

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
