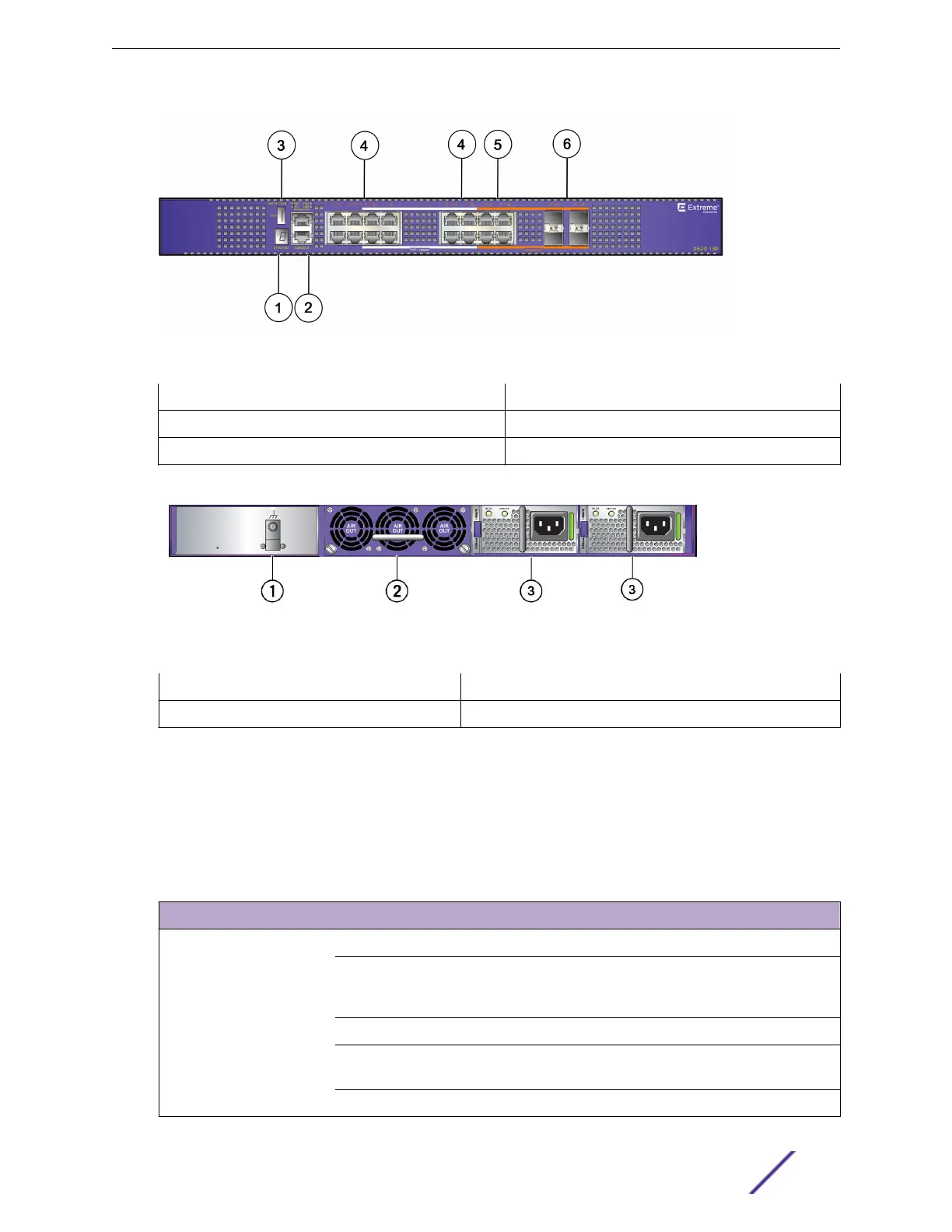

Figure 80: ExtremeSwitching X620-16p Front Panel
1 = Stack number indicator 4 = 100Mb/1 Gb/2.5G/5G/10GBASE-T ports
2 = Console port/Ethernet management port 5 = 100Mb/1 Gb/10GBASE-T ports
3 = USB port 6 = 1 Gb/10GBASE-X SFP+ combo ports
Figure 81: ExtremeSwitching X620-16p Rear Panel
1 = Grounding lug
3 = AC power supplies
2 = Fan module
ExtremeSwitching X620 Series Switch LEDs
The following sections describe the meanings of the LEDs on the ExtremeSwitching X620 series
switches.
Table 18: X620 Front Panel LEDs
Label or Type Color/State Meaning
M (Management) Slow blinking green (1 Hz) Normal operation
Fast blinking green (2 Hz) Power-on self test (POST) in progress
or
Switch diagnostics are running
Steady green POST passed: system is booting image
Blinking amber System is disabled: POST failed or system
overheated
O No external power is attached
ExtremeSwitching Switches
ExtremeSwitching and Summit Switches: Hardware Installation Guide 69

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
