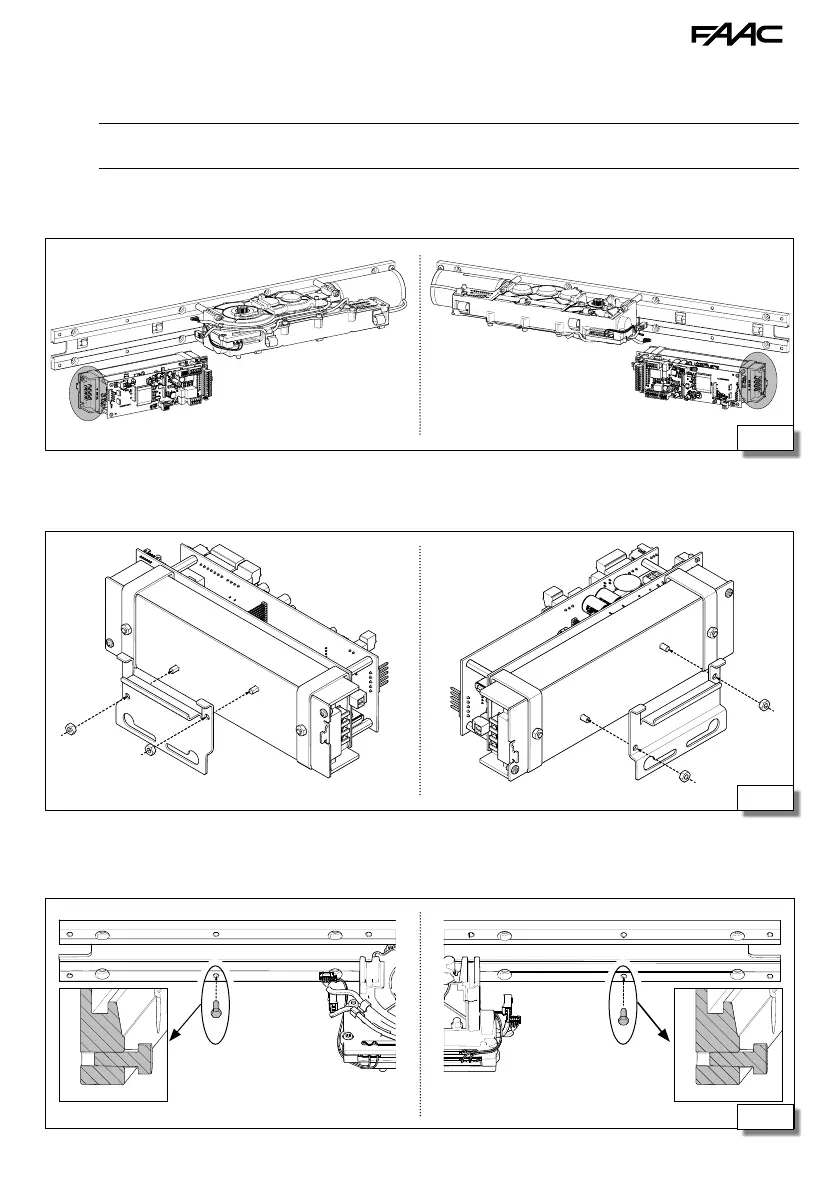

3.8 INSTALLING THE ELECTRONICS ASSEMBLY
1. Arrange the cables that have to be housed under the electronics assembly (e.g. mains power cable, side
selector switch cable, accessories ...).
L
The electronics assembly must be installed on the plate with the mains power supply terminals towards the end of the
plate (9-1).
3. Partially tighten the M5x12 self-tapping screw (11):
2. Mount the bracket as shown in 10,according to the position of the electronic assembly:
