Fargo HDP5000 User Manual

RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP5000 High Definition Card Printer/Encoder User Guide (Rev. 1.3)
9-16
Using the Print Top of Form Option
Follow these instructions:
Step Procedure
1 Verify the Transfer TOF is set to +35.
2 Verify the Print TOF is set to +20.
3 Verify the Print LOF is set to +7.

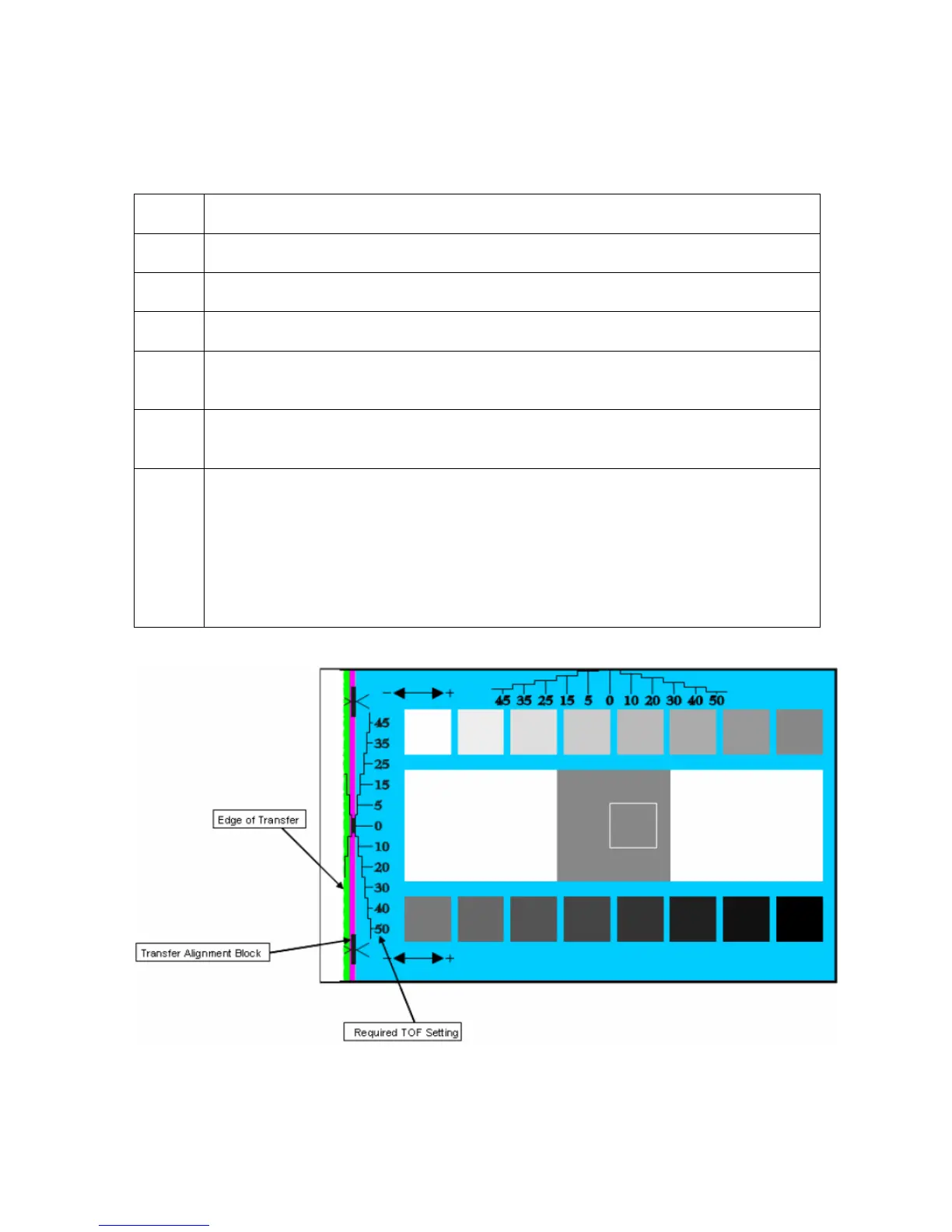

4 Print the alignment card self-test (The front edge should look like Figure
below).
5 Determine which grid line to the left of the center Transfer Alignment Block is
closest to the edge of transfer.
6 Align the leading edge of the center Transfer Alignment Block with the Edge of
Transfer.
• To do this adjust the Print TOF setting up or down by the number located
directly to the right of the line found in the previous step.
• To help with this setting there are (+/-) orientation arrows located at the
upper and lower left sections of the card.

Fargo HDP5000 Specifications

General

Maximum resolution	300 x 300 DPI
Print speed (color)	7 card/h
Print speed (monochrome)	14 card/h
Product color	Black
Internal memory	16 MB
Total input capacity	100 sheets
Compatible operating systems	Windows 2000 / XP / Server 2003 / Vista (32 bit) Mac OS X v10.4 / v10.5 Linux

Weight and Dimensions

Weight	7300 g
Dimensions (WxDxH)	313 x 235 x 292 mm
