133
HMI.

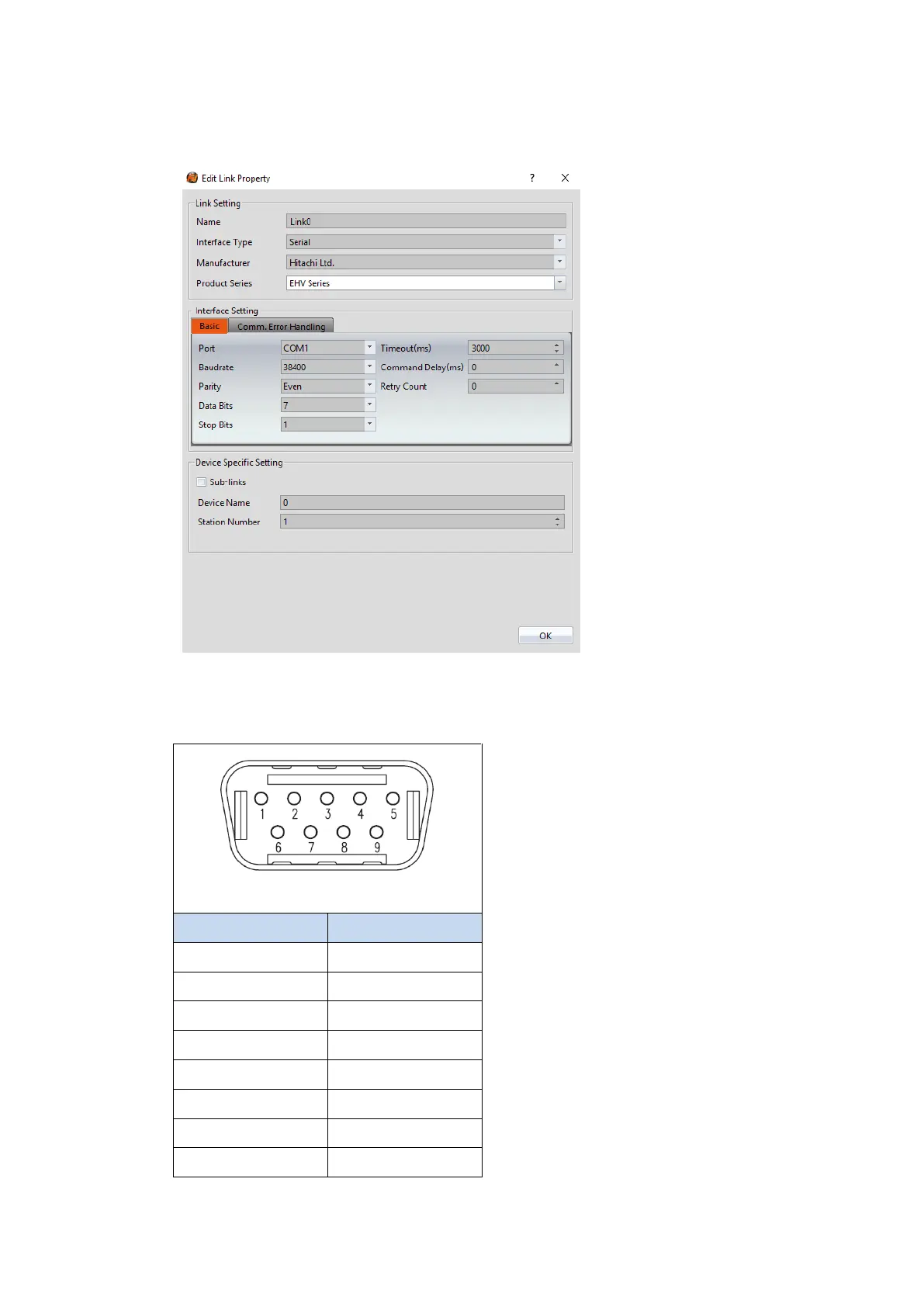

2.5.1.4 Wiring Diagrams
HMI COM1 Pinout
*Looking into COM1 Port
PIN#
COM1 (RS232)
1
2
RX
3
TX
4
5
GND
6
7
RTS
8
CTS
