FATEK P5070S - Page 134

134
9

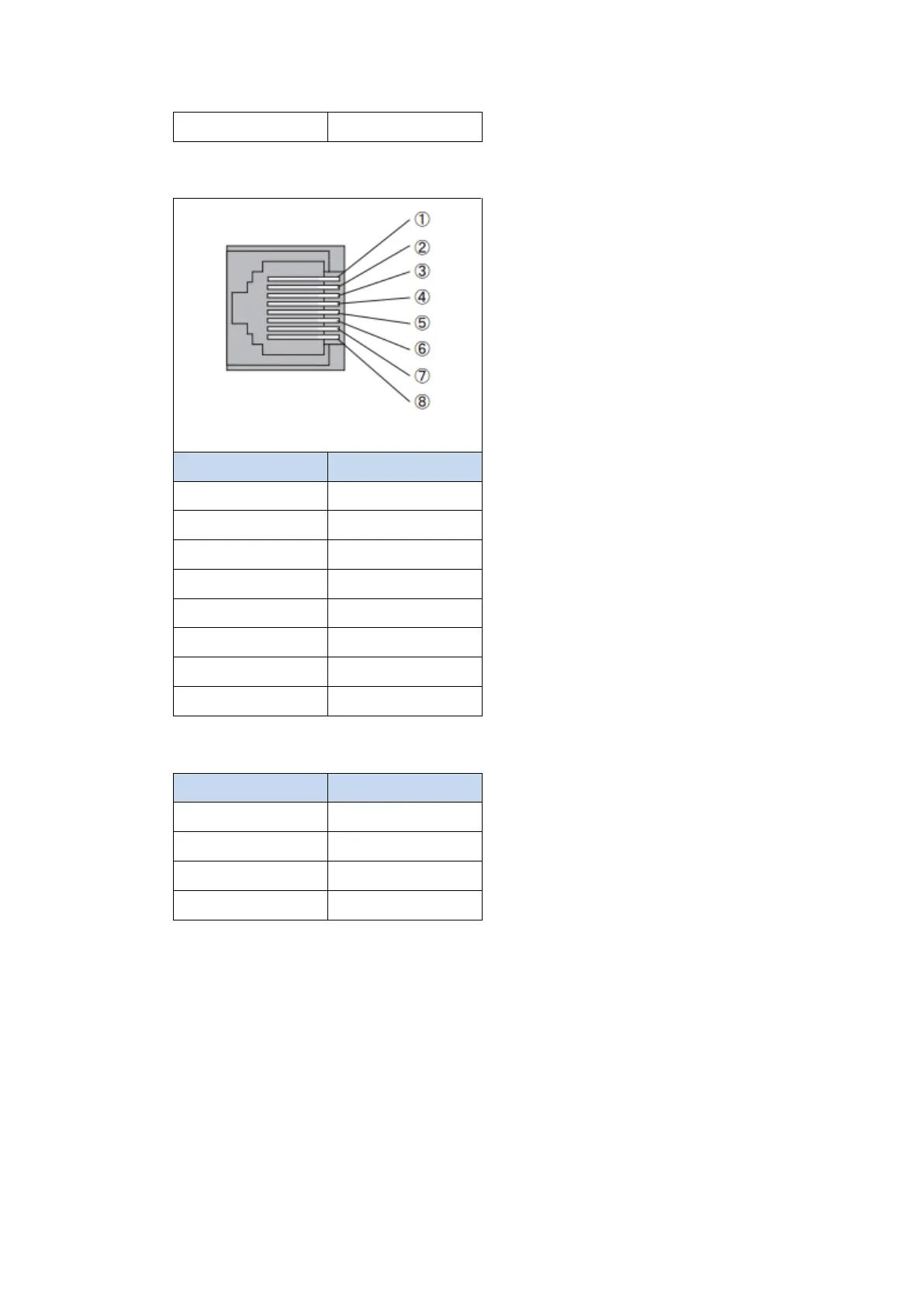

PLC RS232 Pinout
*Looking into PLC
PIN#
Signal
1
SG
2
VCC
3
ER
4
5
TxD
6
RxD
7
8
RTS
All P5 Series
HMI COM1
PLC RS232 Port
2 RX
5 TxD
3 TX
6 RxD
5 GND
1 SG
8 CTS
8 RTS
Wiring Diagrams:All P5Series
