measurement may occlude the blood flow and affect the readings of SpO2.
A functional tester or SpO2 simulator cannot be used to access the accuracy of a pulse
oximeter probe or a pulse oximeter monitor.
The pulse oximeter monitor is calibrated to display functional oxgen saturation.
Attention
Make sure that the nail covers the light inside the sensor. The sensor cable should be placed
on the back of hands.
SpO2 waveform and pulse volume are out of proportion.
17.4 Steps of Monitoring
Warning
Select the appropriate placement according to the instrument and its supporting
probe, which is fundamentally vital to neonates.
1. Turn on the monitor;
2. Insert the connector of the sensor cable into the SpO
2
socket.
3. Attach the sensor to the appropriate position on the patient.
Placement of finger adult/pediatric SpO2 sensor:

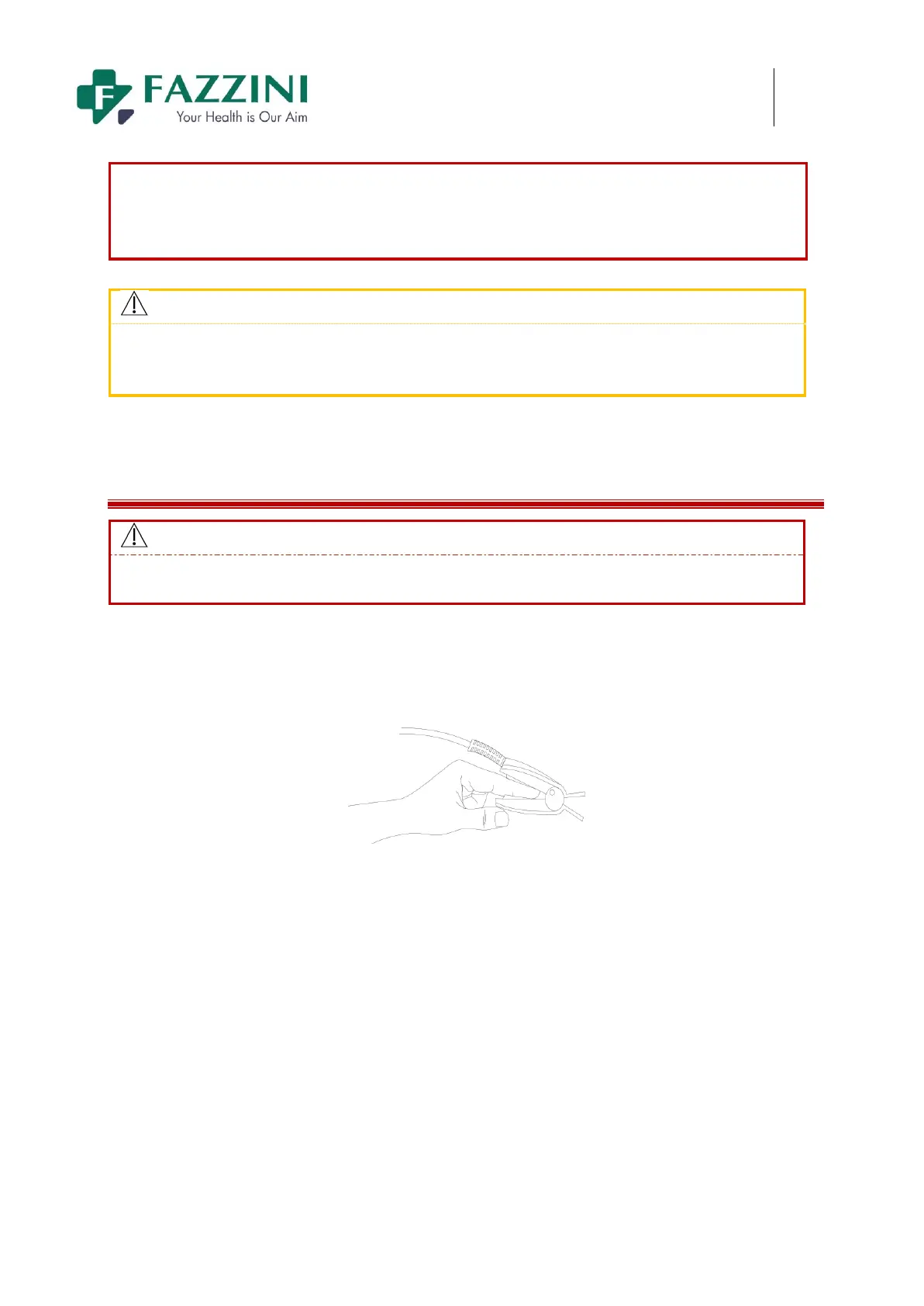

Figure17-2Placement of finger adult/pediatric SpO2 sensor
Placement of neonate SpO2 sensor:
NeonateSpO2sensor consists of the Y-shaped SpO2sensor and sensor jacket. Insert the LED side of the
Y-shaped sensor in the upper groove of the sensor jacket, and respectively the PD side of the sensor in the
lower (See Figure 17-3), then the neonateSpO2sensor is shown in Figure 17-4.
