APPENDIX B - WIRING DIAGRAMS ST100 Series Flow Meter
62 Fluid Components International LLC

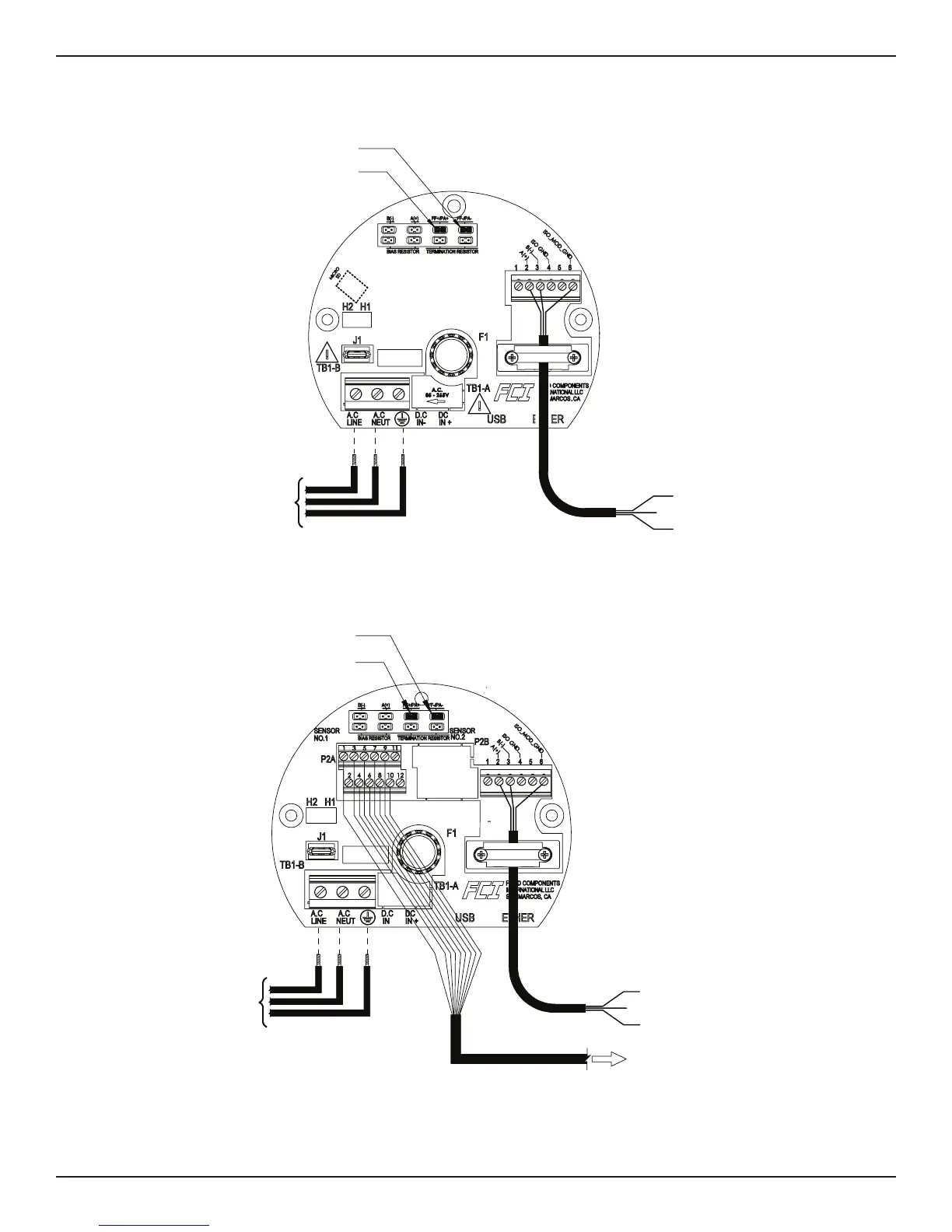

Figure B-5 – Integral: AC Input Power, Foundation Fieldbus Output
Figure B-6 – Remote: AC Input Power, Foundation Fieldbus Output
AC Input Power
86-265 Vac
Customer Connection
16-22 Ga Wire
Line A (+)
Ground
Line B (-)
JUMPER (FF+/PA+)
JUMPER (FF-/PA-)
C01008-1-3
AC Input Power
86-265 Vac
Customer Connection
16-22 Ga Wire
Line A (+)
Ground
Line B (- )
Remote Flow Transmitter
(Element)
300-1000 ft
Remote Cable, Shielded
JUMPER (FF-/PA-)
C01006-1-3
JUMPER (FF+/PA+)
