FCI ST100 series - Page 69

ST100 Series Flow Meter APPENDIX B - WIRING DIAGRAMS
Fluid Components International LLC 63

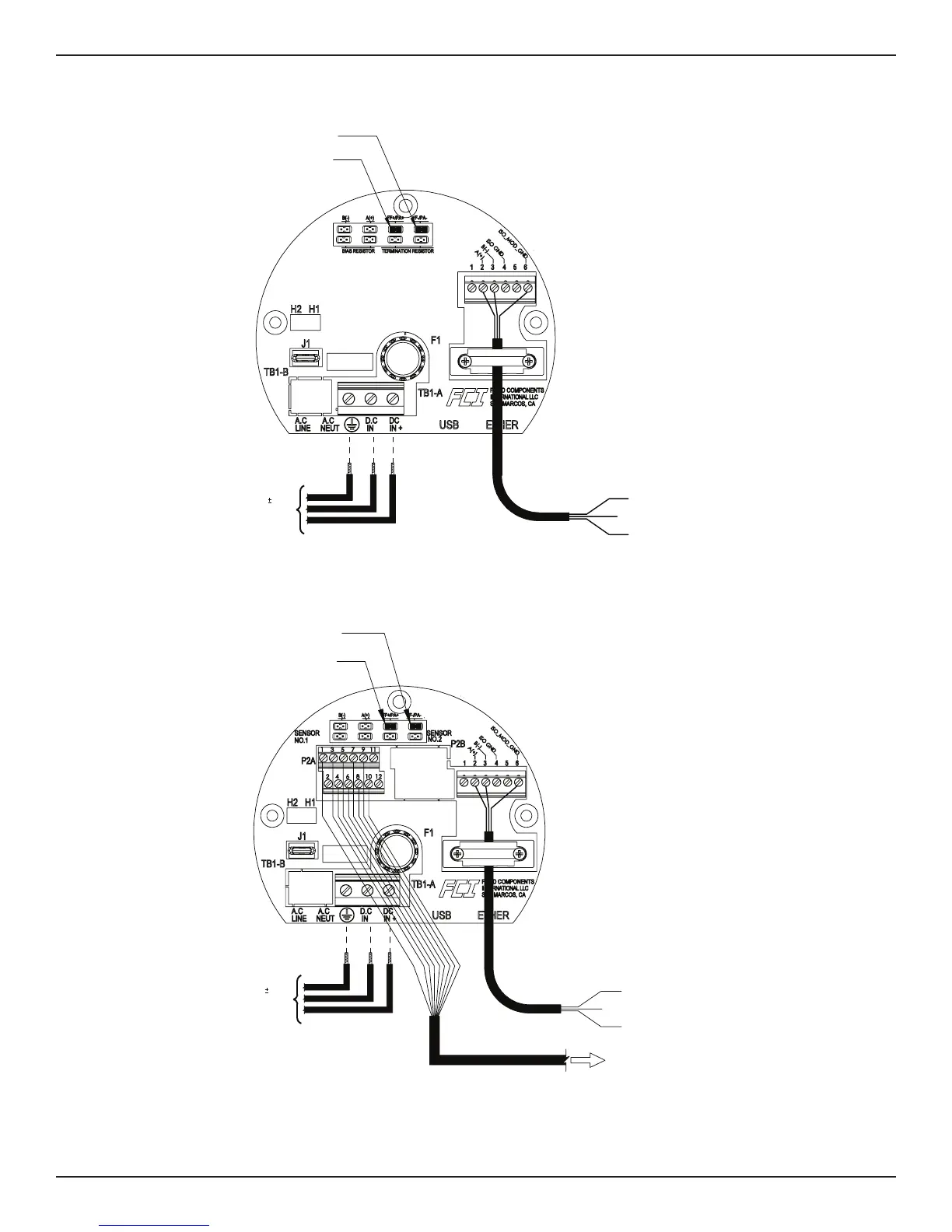

Figure B-7 – Integral: DC Input Power, Foundation Fieldbus Output
Figure B-8 – Remote: DC Input Power, Foundation Fieldbus Output
DC Input Power
24 VDC 20%
Customer Connection
16-22 Ga Wire
Remote Flow Transmitter
(Element)
300-1000 ft
Remote Cable, Shielded
Line B (-)
Line A (+)
Ground
JUMPER (FF+/PA+)
JUMPER (FF-/PA-)
C01007-1-3
DC Input Power
24 VDC 20%
Customer Connection
16-22 Ga Wire
Line A (+)
Ground
Line B (-)
JUMPER (FF+/PA+)
JUMPER (FF-/PA-)
C01010-1-3
