100
OPERATION
Operation_Pic_number:1

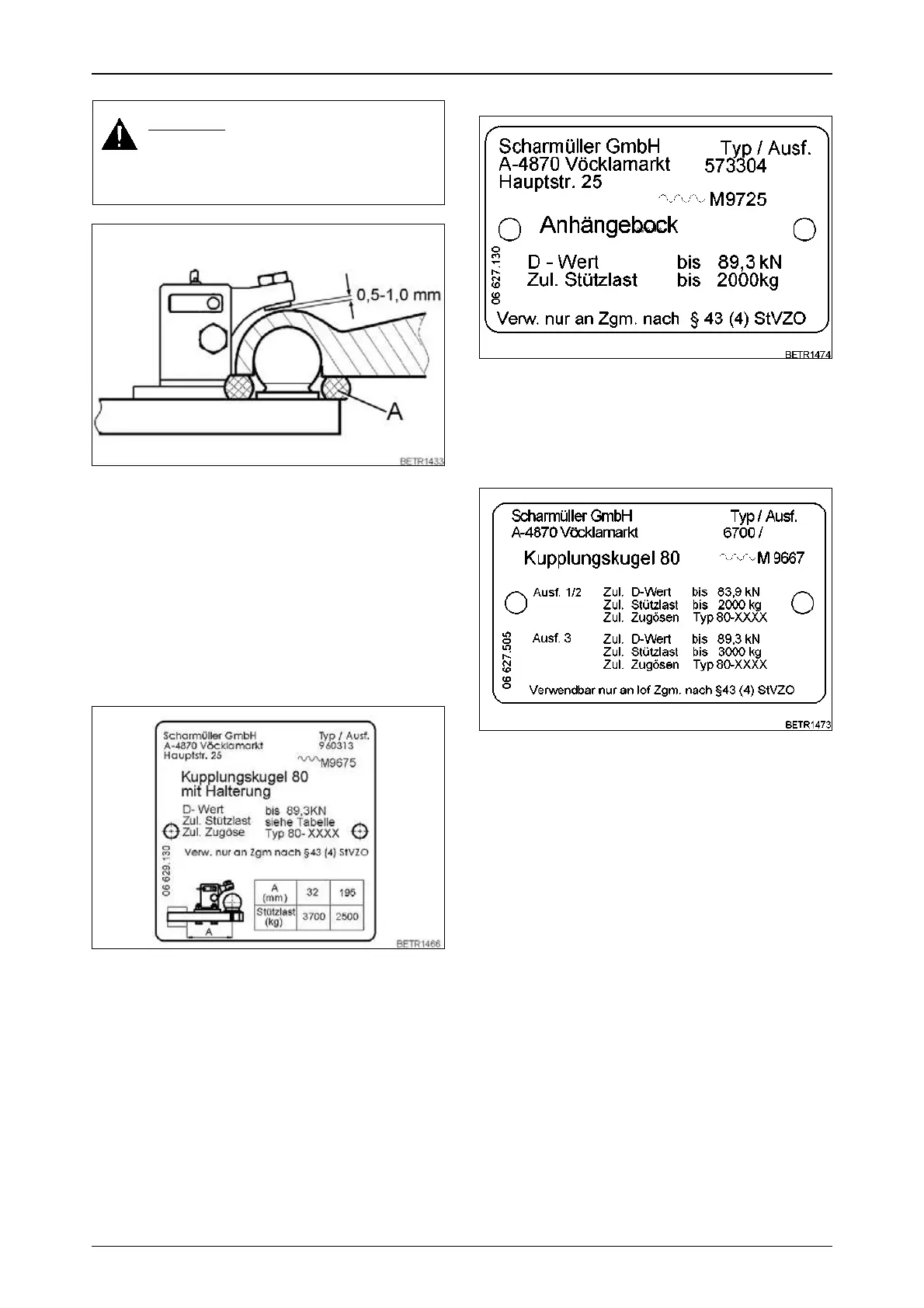

To reduce wear, make sure the foam ring (A) is
fitted.
The permissible vertical play (0.5 mm - 1.0 mm)
can be set with the locking clamp.
To reduce wear, lubricate the contact surfaces of
the ball coupling and hitch mechanism regularly.
After operation, cover ball with cap.
Ball coupling
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)
DANGER:
In secured position, handle (A)
should only be able to be pressed
approx. 4 mm towards the opening.
Fig.232
Fig.233
Ball coupling height adjustable
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)
Ball coupling height adjustable
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)
Text-module
Fig.234
Fig.235
