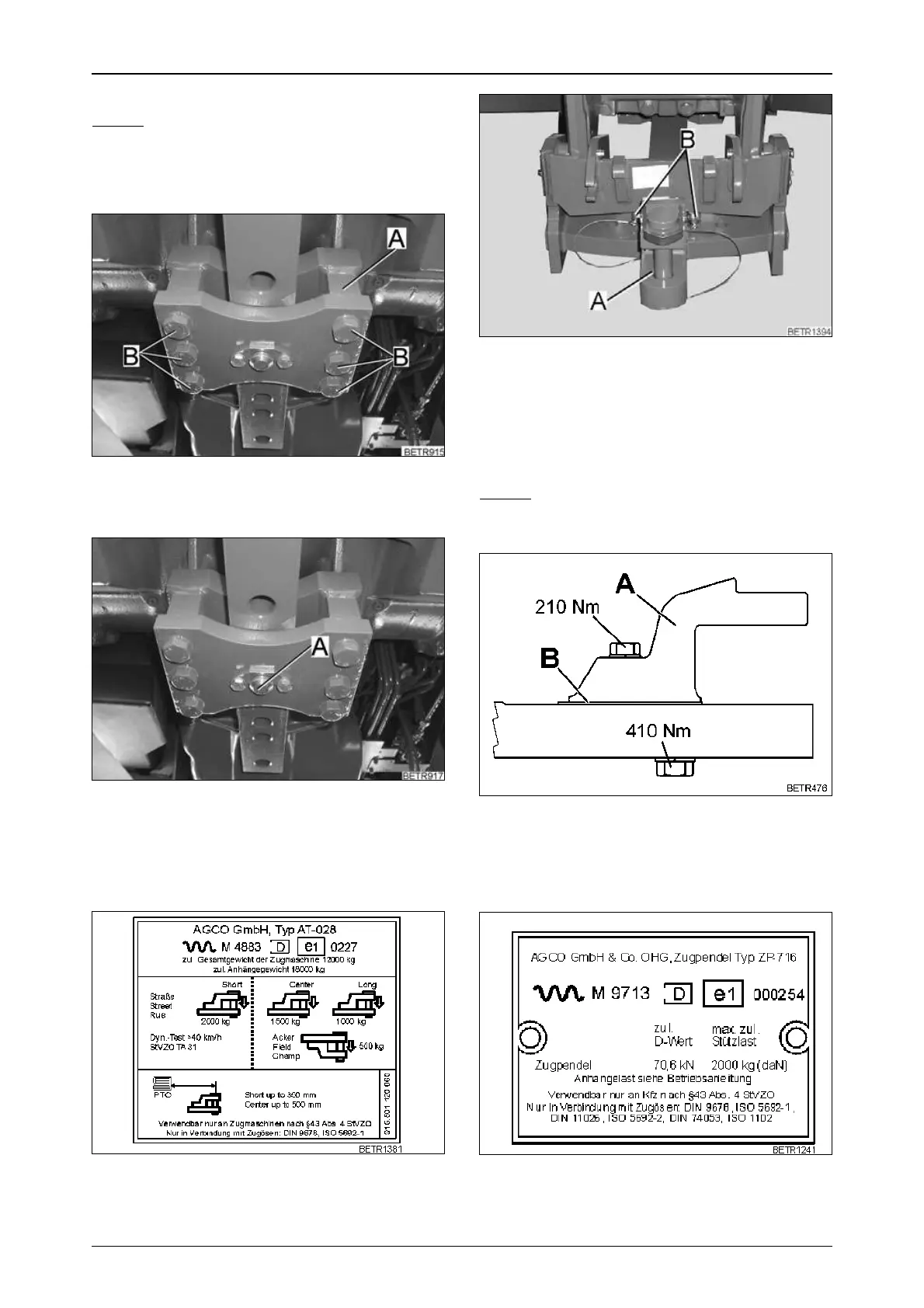

OPERATION
Draw bar
NOTE:
The use of a drawbar is recommended for im-
plements only.
Due to the excessive play, not suitable as a
trailer hitch on public roads.
Operation_Pic_number:1
When the bearing bracket (A) is mounted,
tighten screws (B) with 580 Nm.
Operation_Pic_number:1
The pull rod can be inserted in different holes.
Unscrew safety device. Remove pin (A).
Maximum carrying power (suppor-
ting load)
Operation_Pic_number:1
Do not exceed the maximum permissible vertical
load and positon on public roads (see model
plate).
Fig.236
Fig.237
Fig.238
Operation_Pic_number:1
Text-module
● The bar travel to the left or right can be moved
and/or fully opened by removing both bolts
(B).
● Coupler height can be adjusted by inverting
the drawbar (A).
NOTE:
On public roads, lock the drawbar with with
pin (B).
Operation_Pic_number:1
If coupling jaw (A) has been removed, mount the
intermediate panel (B) if attaching it again.
Observe the specified torques.
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)
Fig.239
Fig.240
Fig.241
