OPERATION
Piton fix
Operation_Pic_number:1
Text-module
NOTE:
The trailer must be equipped with a height-
adjustable support.
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)

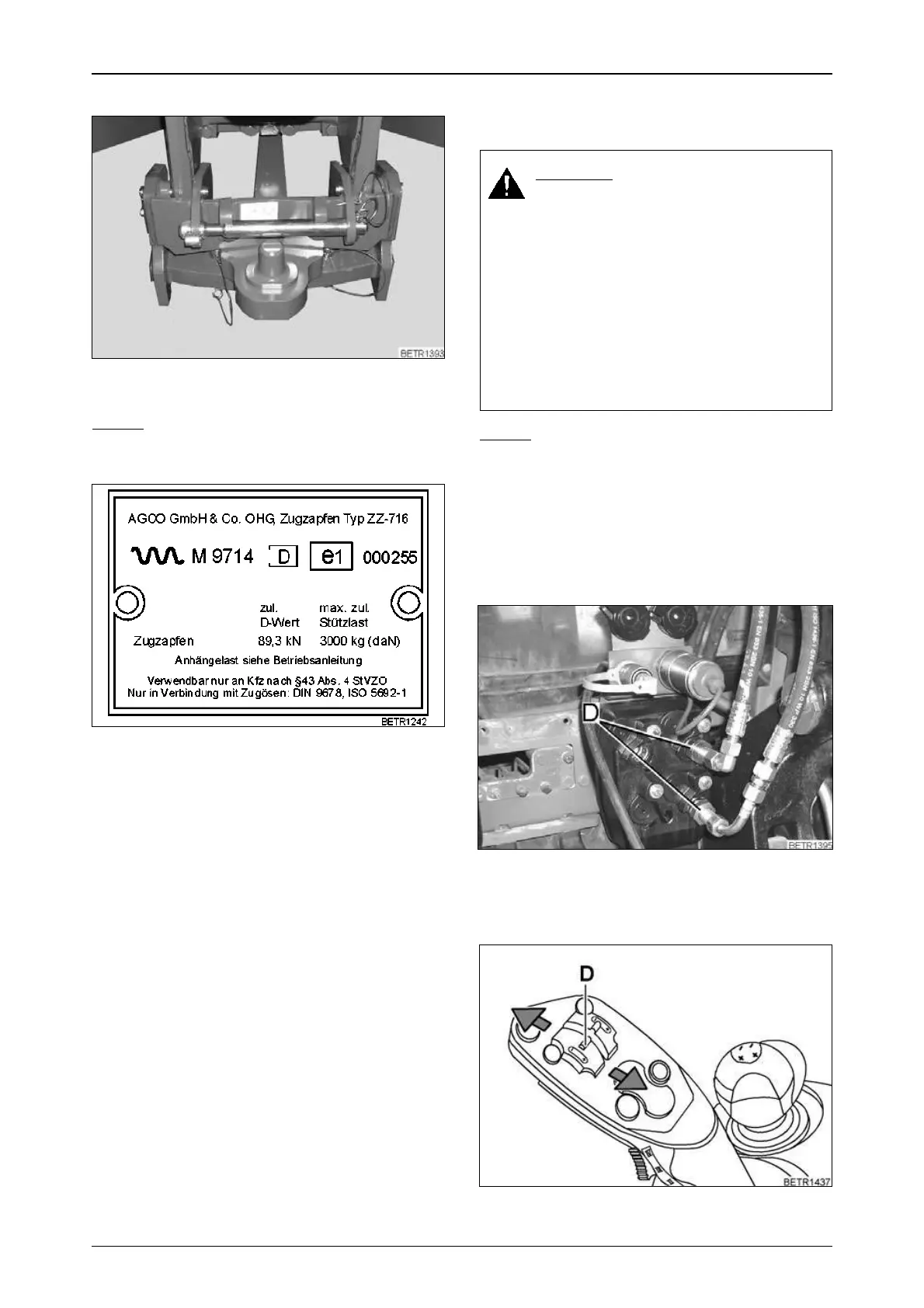

Fig.242
Fig.243
21.6 Hydraulic trailer hitch
Text-module
(optional).
Text-module
NOTE:
The use of a hydraulic automatic coupling on
the road is permissible only if an appropriate
entry has been made in the vehicle docu-
ments.
Observe safety and operating instructions
(see OPERATION Section 17.8).
Text-module
Operating
Operation_Pic_number:1
● Connect hydraulic lines to the desired hy-
draulic connection at the rear, e.g. green
valve (D).
Operation_Pic_number:1
● Lift/lower hydraulic trailer hitch with key (D).
DANGER:
Risk of serious injury in the area
around the three-point link and lif-
ting rods!
When coupling or uncoupling, re-
lease the trailer and/or tractor bra-
kes.
Tractor or trailer may move back-
wards or forwards. Never stand be-
hind or in front of either one of them.
Danger of crushing!
Lock of hitch hook must snap in.
Fig.244
Fig.245
