103
OPERATION

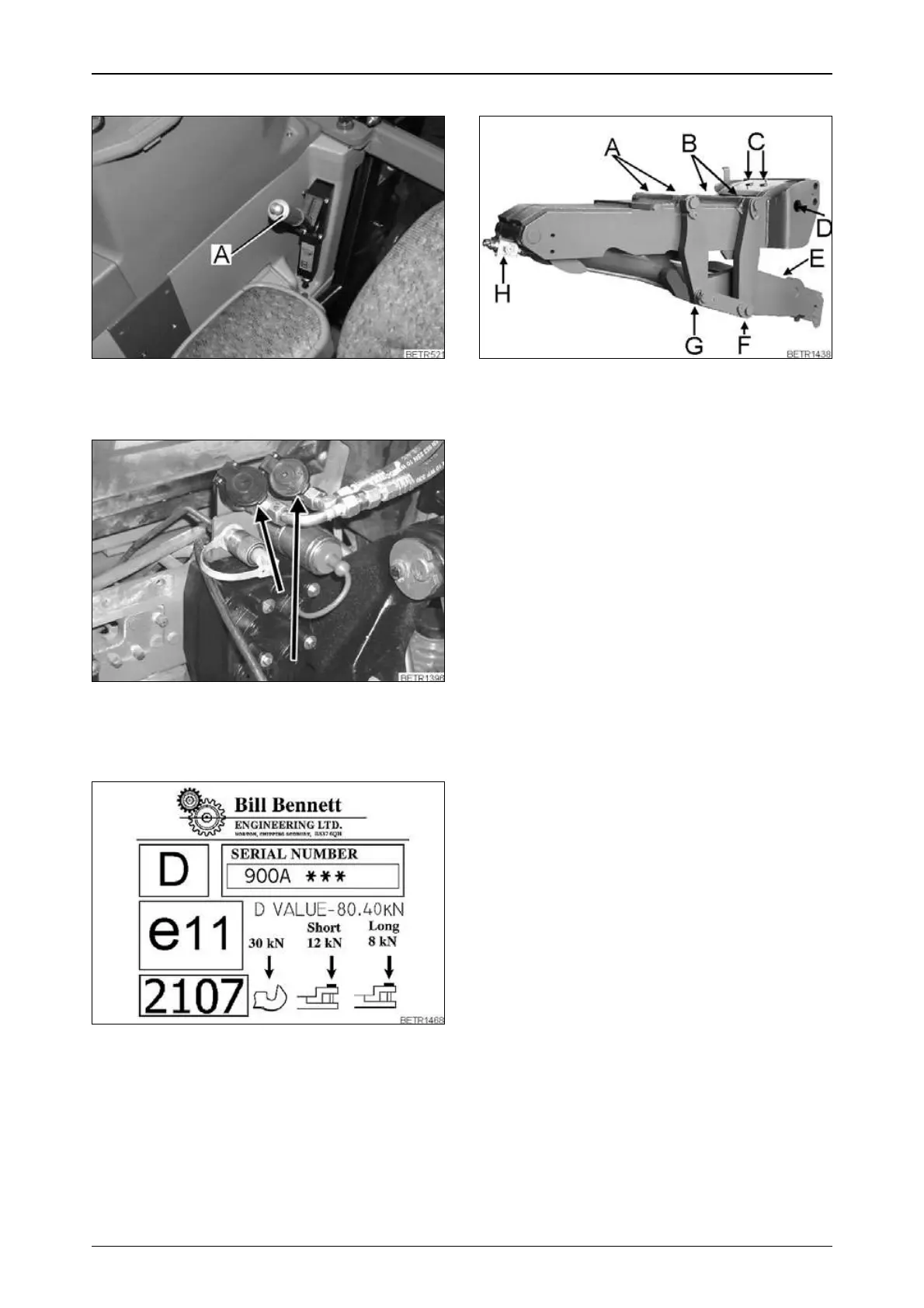

Lowering
Operation_Pic_number:1
● Before lowering, release lock with lever (A).
● Lower hitch hook.
Operation_Pic_number:1
● Lock the hydraulic trailer hitch into parking
position (arrowed) after finishing work to allow
other use of the hydraulic connection.
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)
Fig.246
Fig.247
Fig.248
Maintenance
Operation_Pic_number:1
Lubricate hydraulic trailer hitch every 100
operating hours at the lubrication points
(arrowed).
Text-module
Lubrication points
A = lower hitch, 2 lubrication points.
B = lower hitch, 2 lubrication points.
C = unscrew cover, 2 lubrication points.
D = to the left and right of the catch hook, 2 lubri-
cation points.
E = on hitch hook, 1 lubrication point.
F = underside of hitch, 4 lubrication points.
G = underside of hitch, 4 lubrication points.
H = unscrew cover, 1 lubrication point.
Fig.249
