111
Rev. 5.1
ZMT-ZMTE
OPTIONAL UNITS
12.3
12.4
12-Comandi con distributore (ZMT-ZMTE)
6
5
4
4
5
6
T
P
F
7

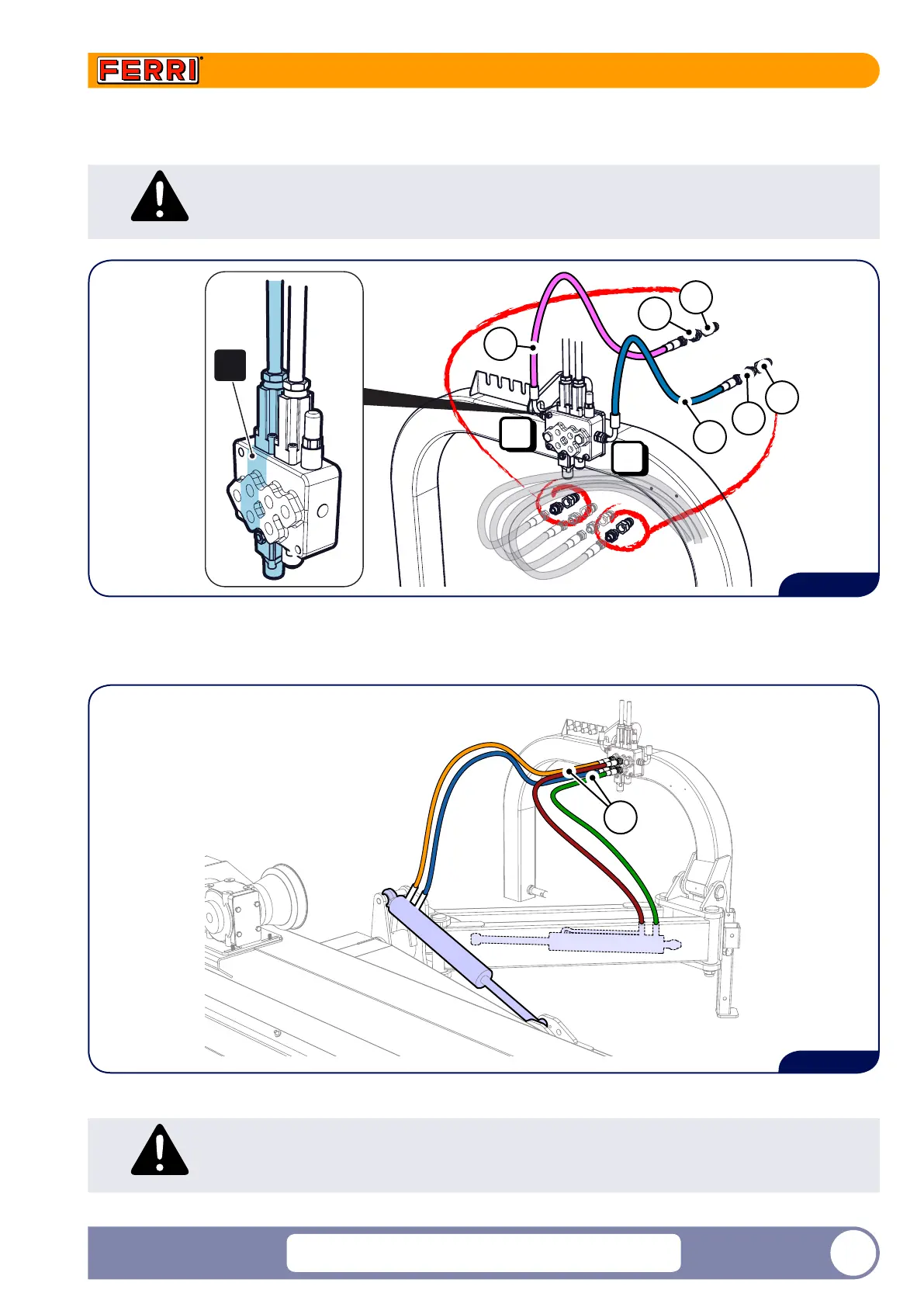

3) Screw the reduction couplings (5) with the relative sealing washers. Disassembly the four quick hitches (4) from
the hoses and install them on the supply hoses (6).
Replace properly the two unused quick hitches.
CAUTION
4) Screw the four reduction couplings to the distributor with the relative sealing washers. Connect the pipes (7) to
the distributor as indicated in the gure.
The oating element (F) must be connected to the shredder orientation hydraulic ram
(1) (see Chapter 6).
CAUTION
