FERRI ZMT - Belt Replacement

91
Rev. 5.1
ZMT-ZMTE
EXTRAORDINARY MAINTENANCE
8.1
08-Sostituzione delle cinghie (ZMT-ZMTE-ZT-ZTE)

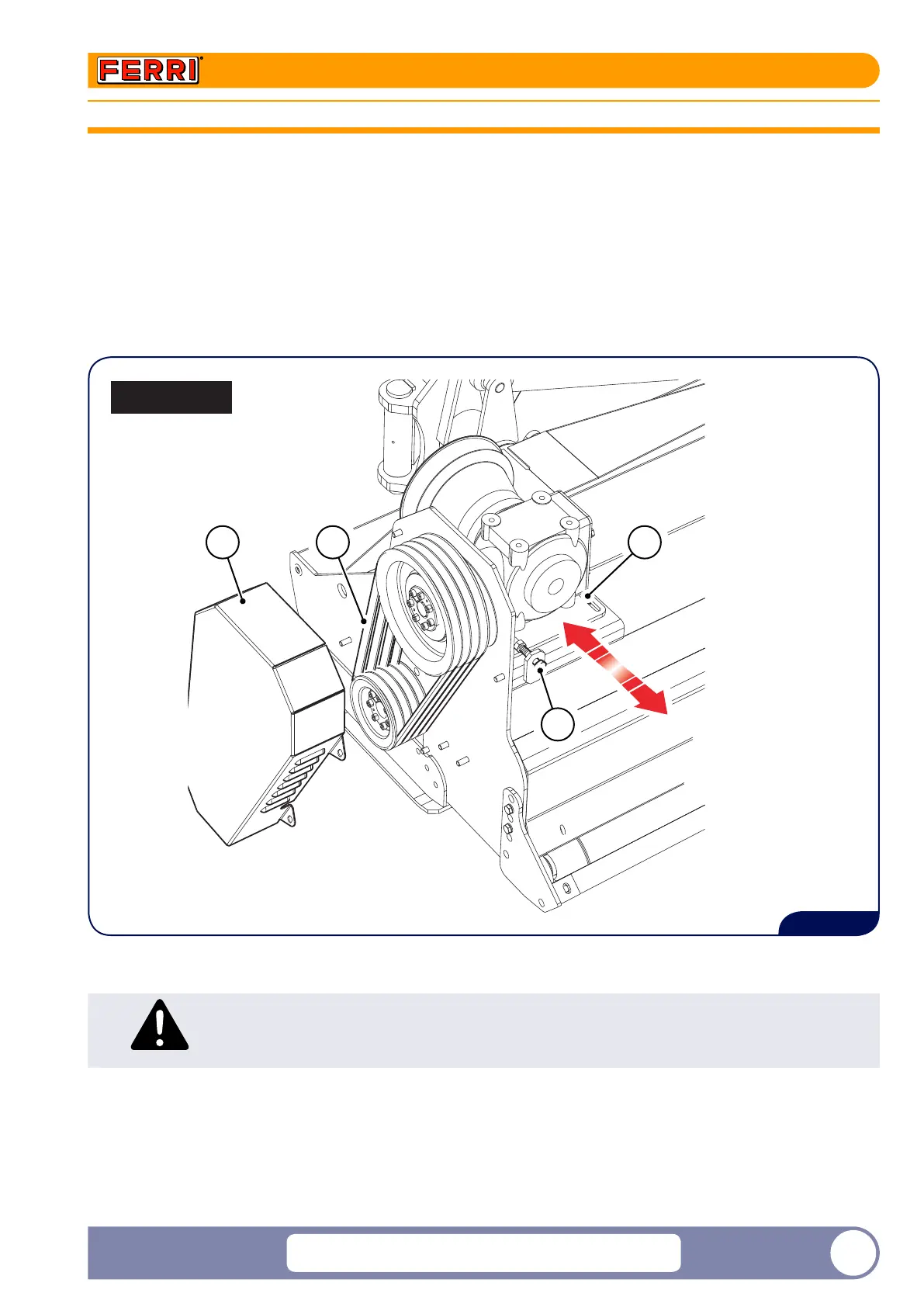

1 4 2
3
ZMT
8.2 Beltreplacement
With internal gearbox:
1) Remove the protective casing from the belts (1);
2) Loosen the 3 fastening screws of the plate (2);
3) Loosen the stabiliser (3);
4) Move the pulley consequently reducing the belt tension;
5) Remove the belts (4) from the respective pulley wheels and replace them with new ones;
6) After replacing the belts (4), adjust as indicated in Chapter 5;
7) Ret the belt cover casing (1).
Replace all the belts in the set even if only one belt is deteriorated.
CAUTION
