FERRI ZMT - Adjusting the Cutting Height

62
ZMT-ZMTE
Rev. 5.1
ADJUSTMENTS
5.1
05-Regolazione altezza di taglio (ZMT-ZMTE)

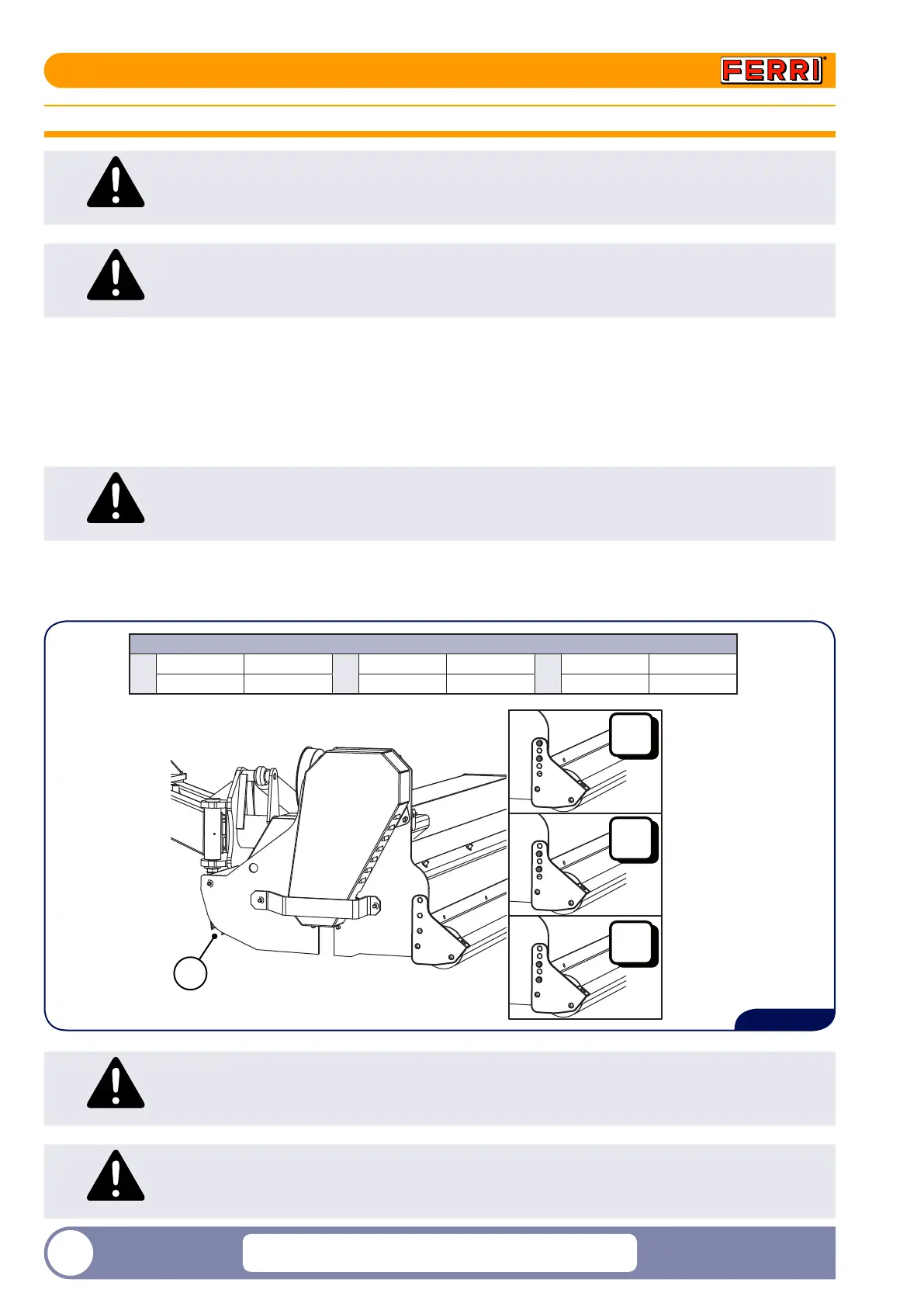

Height between roller and maximum cutting circumference
A
mm 15
B
mm 40
C
mm 65
in 0,59 in 1,57 in 2,55
1
A
B
C
5.2 Adjustingthecuttingheight
Position the tractor on at ground in order to avoid the application of lateral stress on
the machine linkage system. Before adjusting, turn o󰀨 the engine, put the hand brake
on, switch o󰀨 the power and take the key out of the ignition.
CAUTION
Do not work or carry out maintenance or repairs underneath the machine or its
components. This must be supported in a secure way using blocks or supports to prevent
components from falling unexpectedly, serious accidents or even death.
DANGER
Correct adjustment of the machine working height allows:
► jobs to be performed in a workmanlike manner;
► improved performance of the machine - tractor assembly;
► a considerable reduction of wear on the lateral runners (if present).
By adjusting the height of the support roller it is possible to vary the cutting height.
The ails must never touch the ground.
CAUTION
Maintain the shredder in a horizontal position.
To adjust the optimum cutting height, regulate the height of the support roller and the runners (if present) according
to the desired cut.
Pay attention during adjustment operations, to prevent the guards (1) (see FIG. 5.1) being
too far from the ground when the machine is in use, in which case they will not hold back
solid bodies thrown up by the rotating ails.
CAUTION
Work with the rollerscraper always tted on the machine which has the function of cleaning
the support roller and holding up the side panels in case of knocks to the machine.
CAUTION
