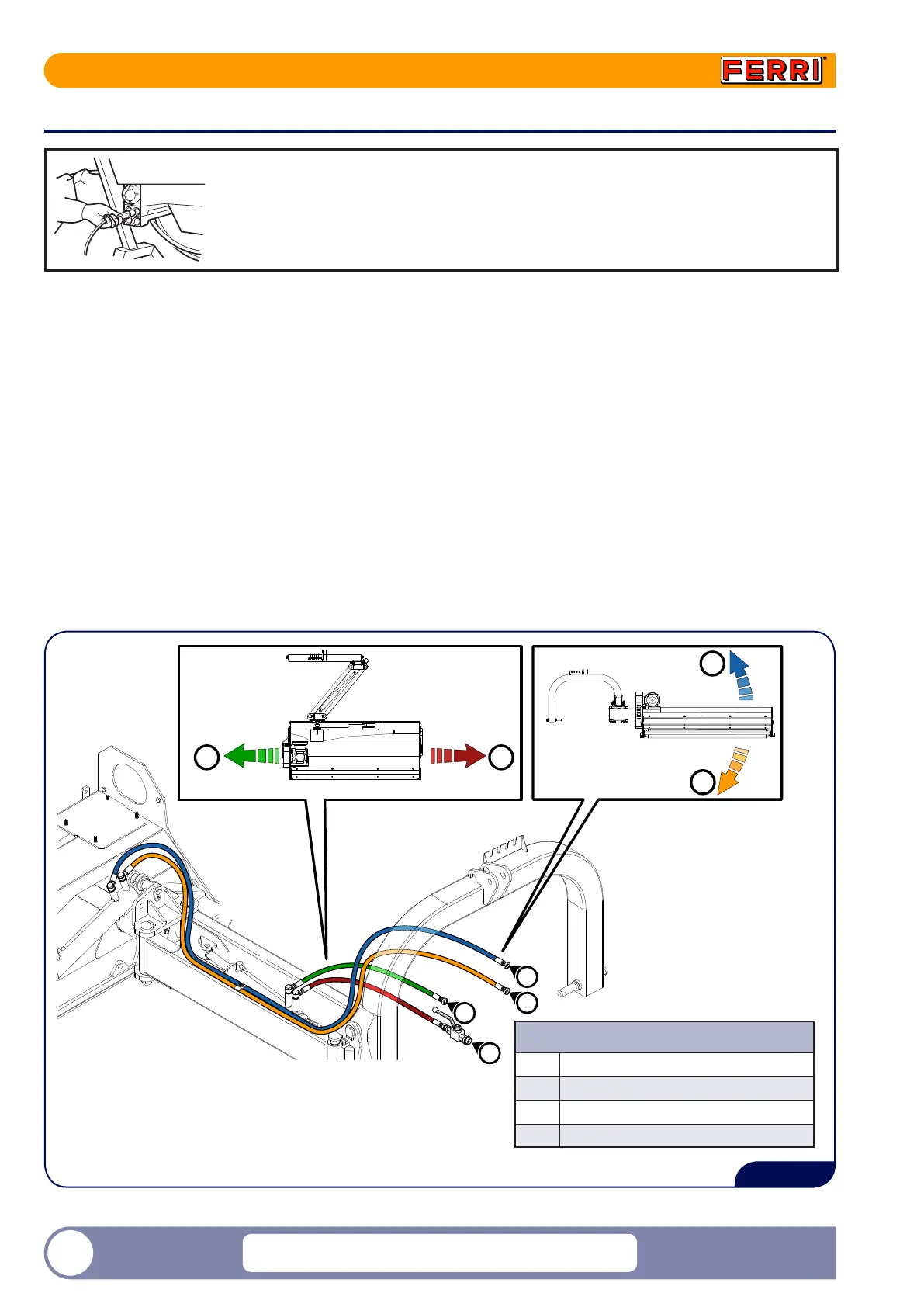

04-Collegamenti idraulici spostamento laterale (con rotazione)
4.3.3 Hydraulic connections for lateral movement
Make sure that the hydraulic hoses are tted and mounted correctly. If they are
inverted this will cause movements opposite to those commanded.
1) Connect the hydraulic hoses with quick hitch on the tractor after having checked that all attachments are clean
and in optimum condition.
2) Connect the male couplers to the quick hitch on the tractor. Ensure that they are properly attached.
3) Give pressure to the hydraulic system and in the event of detecting a loss of pressure, take all possible
precautions to prevent accidents.
4) Liquids under pressure, above all the oil in a hydraulic circuit, can cause serious injuries and lead to infections.
In the event of accidents see a doctor.
5) Once the shredding operation has nished, x the hydraulic hoses, unhooked from the tractor, to the appropriate
supports.
6) Clean the couplings at the end of the hoses and the area around the quick hitch of the tractor using a clean
cloth.
7) Before servicing the hydraulic system, shut down the tractor engine (if in action) and cut the pressure to the
circuit.
8) Do not dispose of used oil and grease residue into the environment. Deliver it to a suitable waste disposal
centre.
Hydraulic pipe identication code
A 2 YELLOW bands
B 1 YELLOW band
C 2 GREEN bands
D 1 GREEN band
