63
Rev. 5.1
ZMT-ZMTE
ADJUSTMENTS
5.2
5.3
05-Regolazione altezza di taglio (ZMT-ZMTE)
2
1
3
C
B
A
4

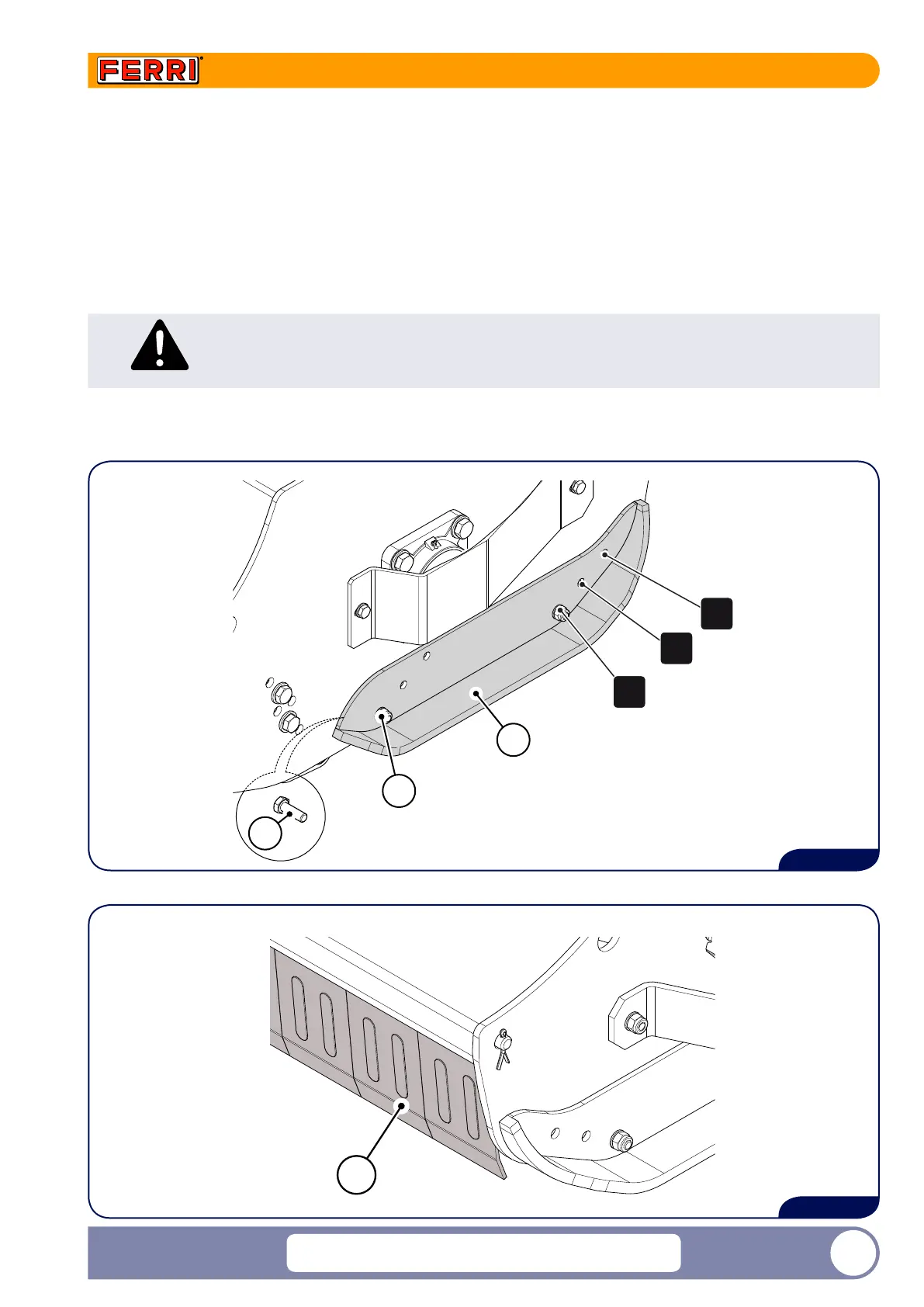

To perform adjustment of the runners (if present), proceed as follows on both sides of the ail head:
1) Maintain the shredder in a horizontal position and lifted o the ground;
2) Unscrew the screws (1), the nut (3) and the relative washers;
3) Depending on the degree of nishing you want to obtain, align one of the three holes (A,B,C) present on the runner
(2) with the hole on the frame;
4) Tighten the screw (1) and the nut (3) in the new position and the relative washers;
5) Position the runners near the support roller A high/high - B medium/medium - C low/low.
The runner adjustment has to be carried out together with the support roller adjustment.
Pay attention in adjustment operations, to prevent the guards (4) being too far from the
ground when the machine is in use, in which case they will not hold back solid bodies
thrown up by the rotating ails.
CAUTION
