FERRI ZMT - Page 92

92
ZMT-ZMTE
Rev. 5.1
EXTRAORDINARY MAINTENANCE
8.2
08-Sostituzione delle cinghie (ZMT-ZMTE-ZT-ZTE)

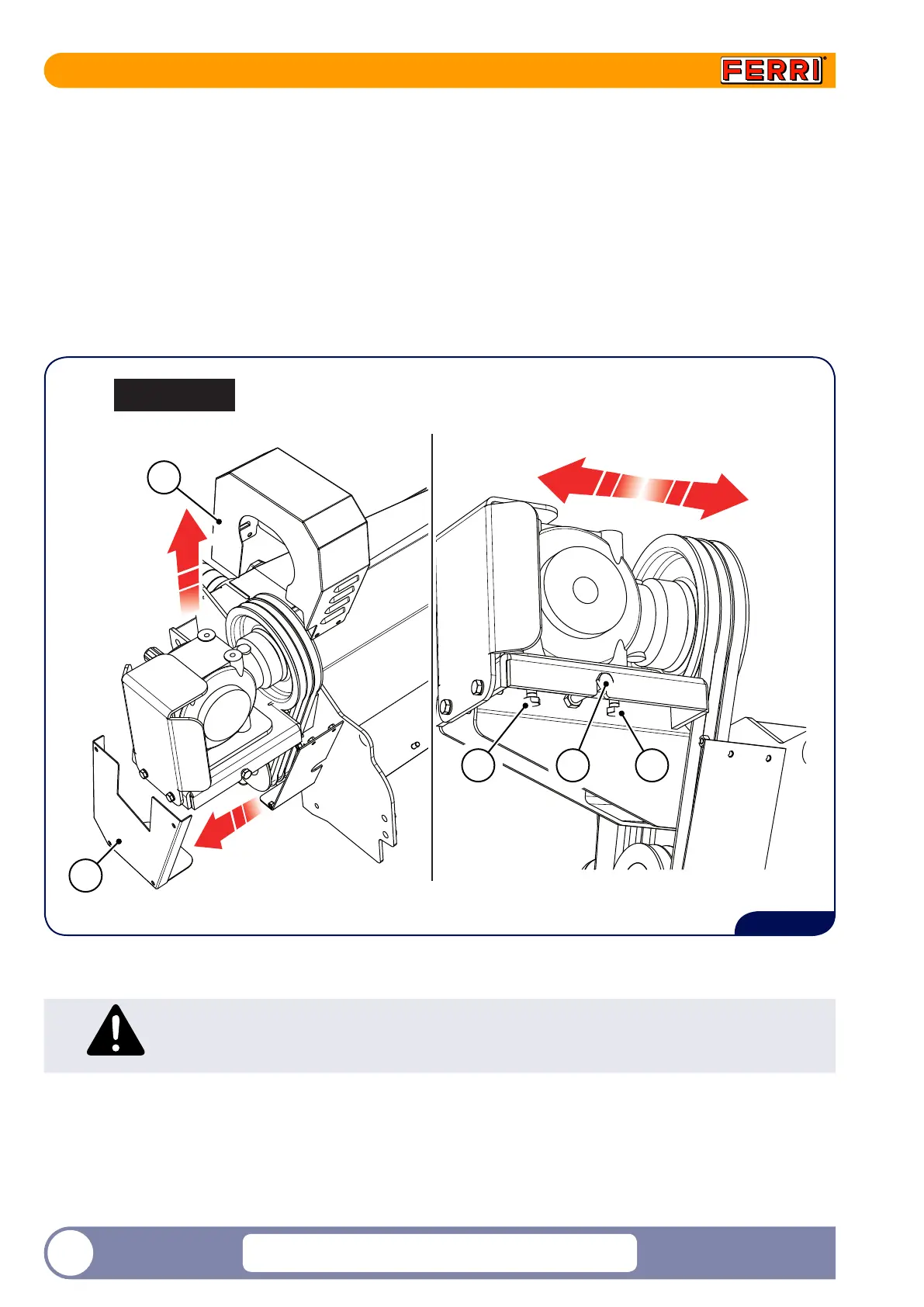

1
2
3 4 3
ZMTE
With external gearbox:
1) Remove the protective casings from the belts (1) and (2);
2) Loosen the 3 fastening screws of the plate (3);
3) Loosen the stabiliser (4);
4) Move the pulley consequently reducing the belt tension;
5) Remove the belts (5) from the respective pulley wheels and replace them with new ones;
6) After replacing the belts (5), adjust as indicated in Chapter 5;
7) Ret the belt cover casings (1) and (2).
Replace all the belts in the set even if only one belt is deteriorated.
CAUTION
