57
Rev. 5.1
ZMT-ZMTE
TRANSPORT AND INSTALLATION
4.20
GIRI R. P. M.
TOURS
DREHEZAHL
MAX. 540
04-Montaggio albero cardanico

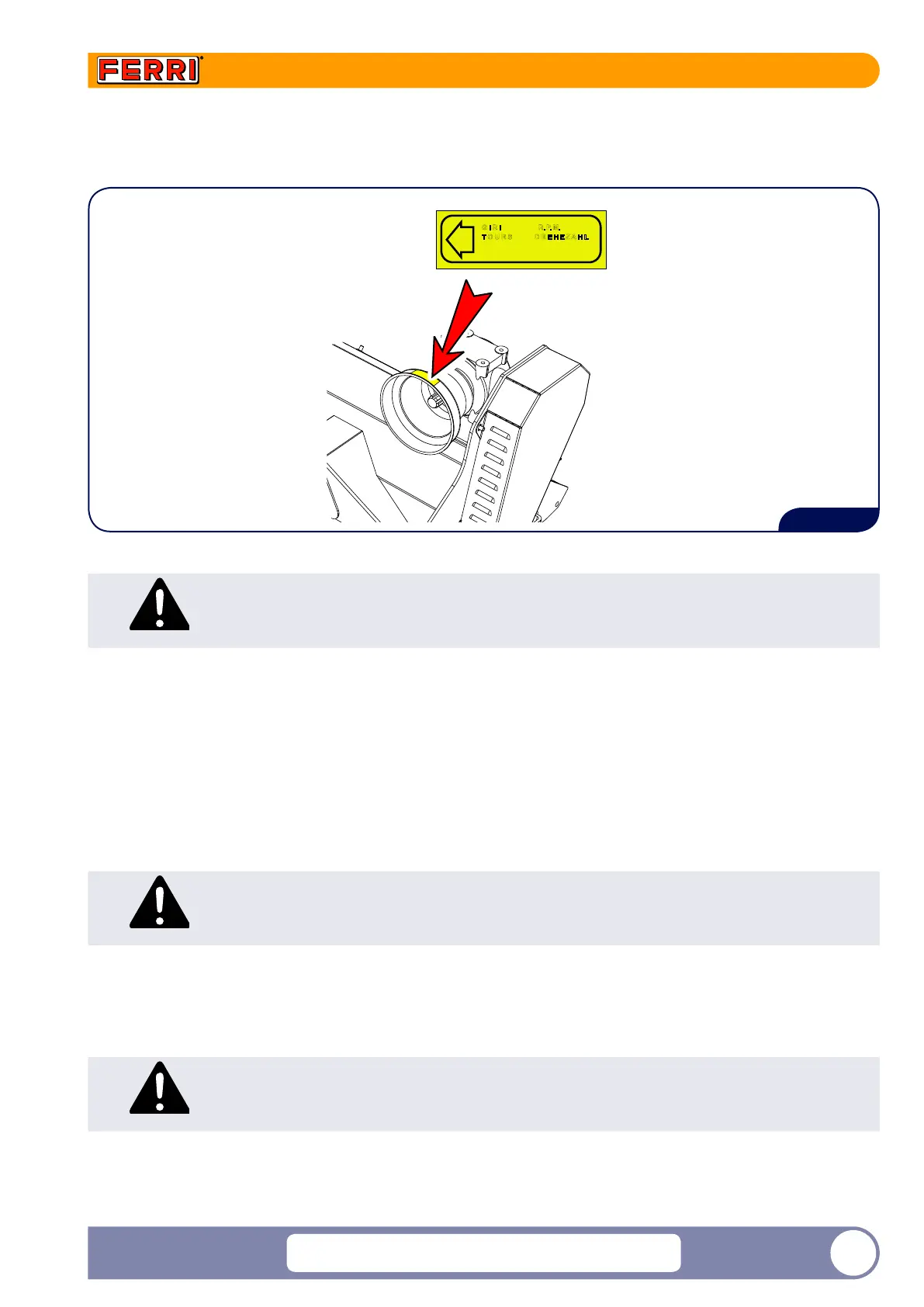

► Fit the PTO shaft onto the machine gearbox assembly. Respect the assembly direction required by the Manufacturer
and indicated on the outer covering of the protection and on the tractor power takeo.
Always connect the PTO shaft last of all to the tractor PTO, and disconnect it rst of all
at the end of work.
CAUTION
► Fasten the protections of the PTO shaft with chains to the machine and to the tractor to prevent their rotation.
► Ensure that the anti-removal safety block (button) is correctly inserted and blocked in its housing.
► The overlap between cowling and PTO shaft must not be less than 5 cm (1.97 in).
► To connect the machine to the tractor PTO using the PTO shaft, pull the coupling collar back and align the splines
with those of the PTO coupling.
► Push the coupling inside that of the PTO and release the locking collar. Move the coupling until it is inserted as
well as possible to the PTO shaft.
► Push and pull the PTO shaft back and forth to ensure a secure attachment.
► Check that the PTO shaft slides easily and that the couplings rotate freely.
If the PTO shaft does not slide easily, pull it apart and clean the splines and re-insert
it. Be sure the couplings are phased and the splines are in good condition. If the shaft
does not slide freely and the couplings are not aligned, do not force the shaft as this will
cause irreparable damage.
CAUTION
► Connect the PTO shaft to the tractor, retracting the safety pin. Make sure that the pin returns to the safety position
in order to have the coupling assembled correctly. Be sure the coupling is locked in position.
► Always stop the power takeo when lifting the tool or when the manoeuvring angles are too large.
FERRI declines all responsibility for damage caused by incorrect assembly and use of
the PTO transmission.
CAUTION
