6Functions
Festo – GDCP-CMMP-M0-FW-E N – 1304N H 35

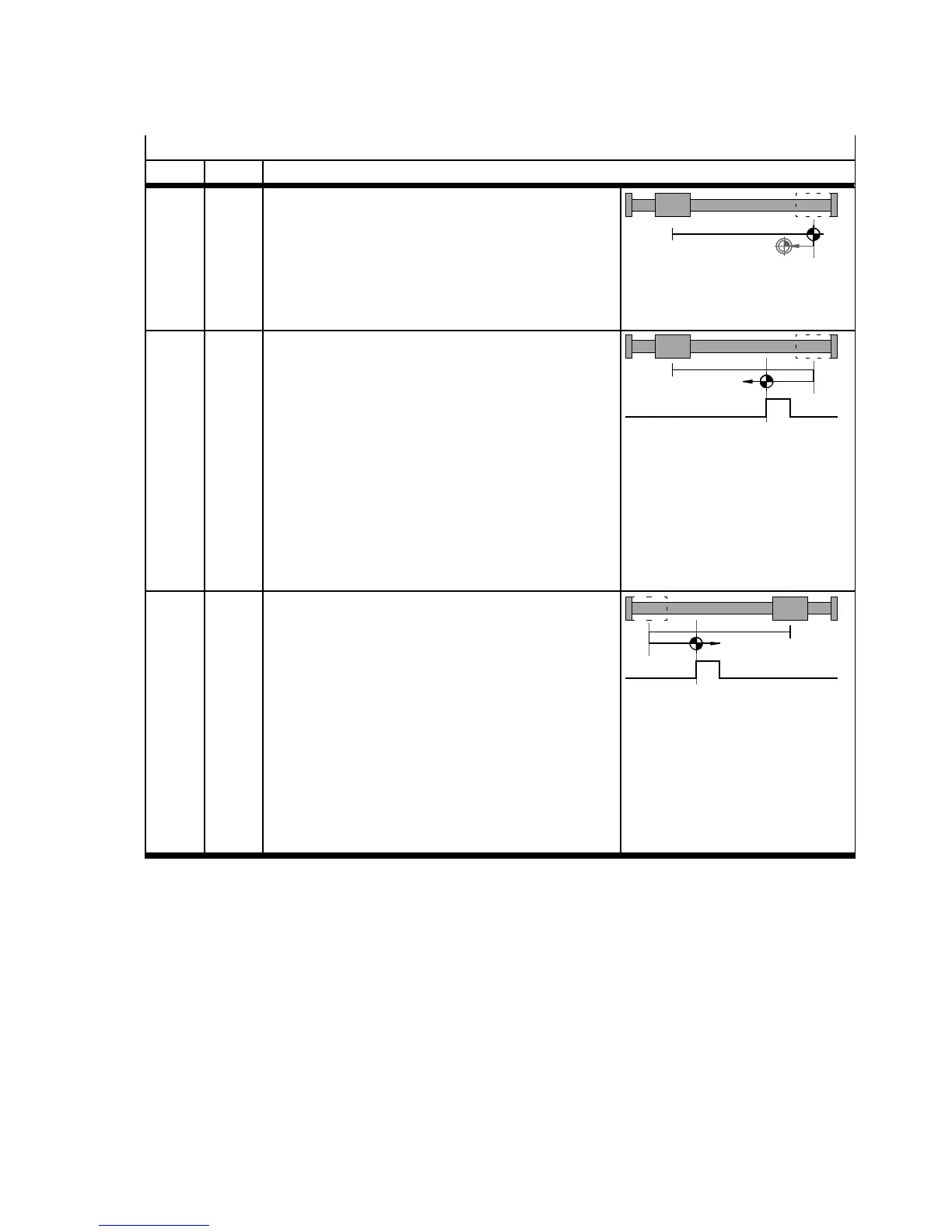

Homing methods
hex Descriptiondec
EEh -18 Positive stop
1)2)3)
1. Travel at search speed in positive direction to
the stop. This position is taken as the homing
point.
2. If this is parameterised: travel at positioning
speed to the axis zero point.
E9h -23 Reference switch in positive direction with travel
to stop or limit switch.
1. Run at search speed in positive direction to
stop or limit switch.
2. Travel at search speed in negative direc tion to
the reference switc h.
3. Travel at creep speed in negative direc tion
until the homing switch becomes inactive. This
position is taken as the homing point.
4. If the axis zero point ≠ 0: Travel at positioning
speed to the axis zero point.
Homing Switch
E5h -27 Reference switch in negative direction with
travel to stop or limit switch
1. Run at search speed in negative direction to
stop or limit switch.
2. Travel at search speed in positive direction to
the reference switc h.
3. Run at crawl speed in posit ive direction until
reference switch becomes active. This
position is taken as the homing point.
4. If this is para meterised: travel at positio ning
speed to the axis zero point.
Homing Switch
1) Only possible for motors with encoder/resolver with index pulse.
2) Limit switches are ignored during travel to the stop.
3) Since the axis is not to remain at the stop, the travel to the axis zero point must be parameterised and the axis zero point offset
mustbe≠0.
Tab. 6.7 Overview of homing methods
