3 Mechanical installation
18 Festo GDCP-CMMS-AS-G2-HW-EN 1310NH English
3 Mechanical installation
3.1 Installation dimensions

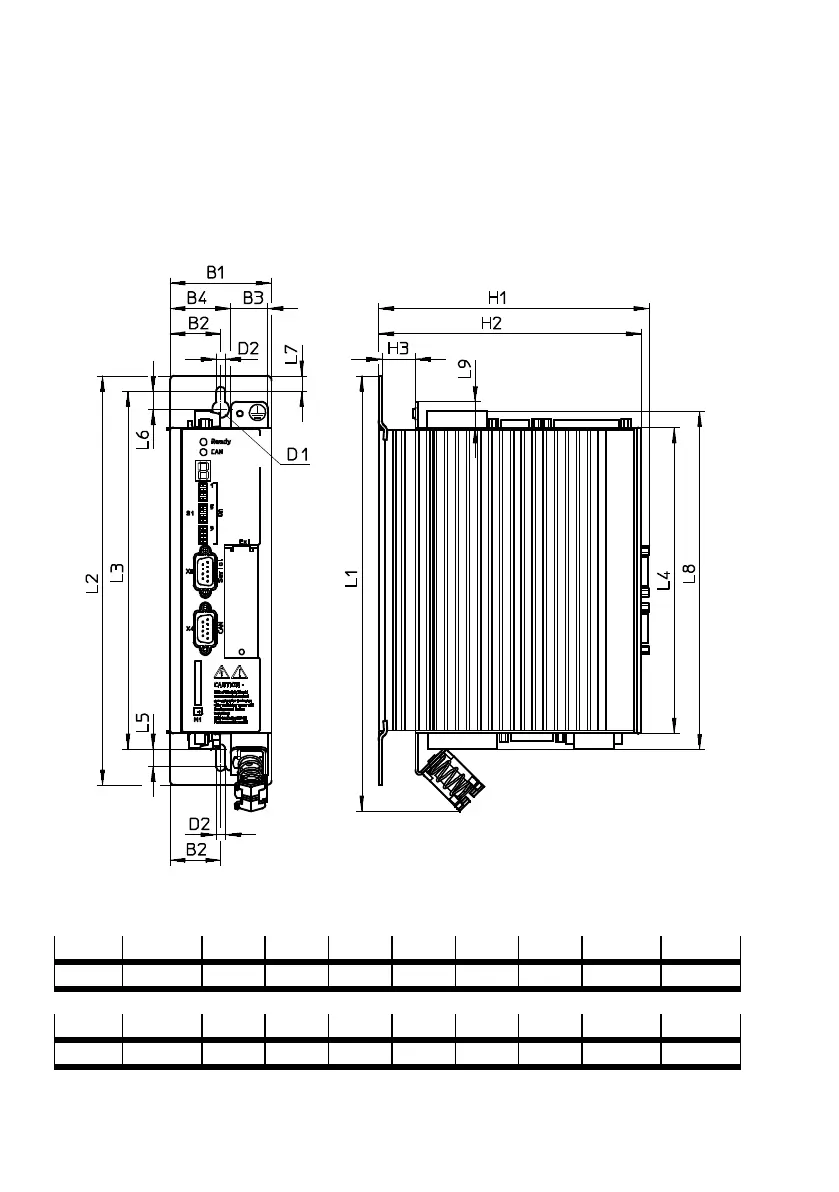

Fig. 3.1 Installation dimensions
Dim.
B1 B2 B3 B4 D1 @ D2 @ H1 H2 H3
[mm] 60.1 30 22 35.8 10 5.5 160 155 19.7
Dim. L1 L2 L3 L4 L5 L6 L7 L8 L9
[mm] 257 242 211.85 181 10 10.5 9.25 201 15.3
Tab. 3.1 CMMS-AS-...-G2: Installation dimensions
