1. Installation
1−11
Festo P.BE−CPX−FB13−EN en 0811c
Setting the station number with DIL switch 4
Note
Station numbers may only be assigned once per field bus
master.
You can set the PROFIBUS address of the CPX terminal in
binary coded form with the 8−element DIL switch 3:
1 Setting the
station number
(switch elements
1 Ū 7)
1234 5678
1

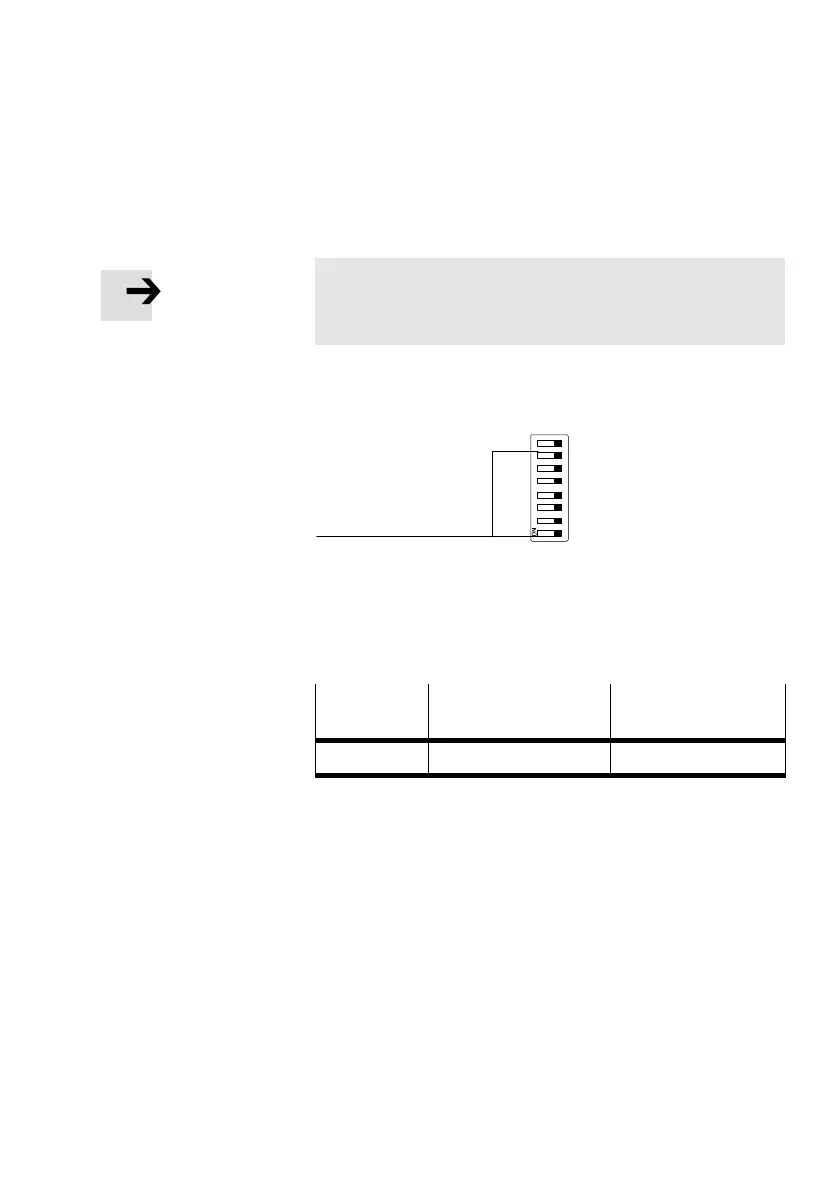

Fig.1/4: Setting the station number (8−element DIL switch 3)
The following station numbers are permitted:
Protocol
Address designation Permitted station
numbers
PROFIBUS−DP PROFIBUS address 1; ...; 125
Recommendation:
Assign the station numbers in ascending order. Assign the
station numbers to suit the machine structure of your system.
