MS-9050 Series Manual — P/N 52413:F 10/22/2010 47
ANN-BUS Devices Installation
The LEDs are wired as illustrated in Figure 2.19. Note that the illustration depicts only connectors
P1 and P2. Wiring is identical for P3 (LEDs 21-30) and P4 (LEDs 31-40).

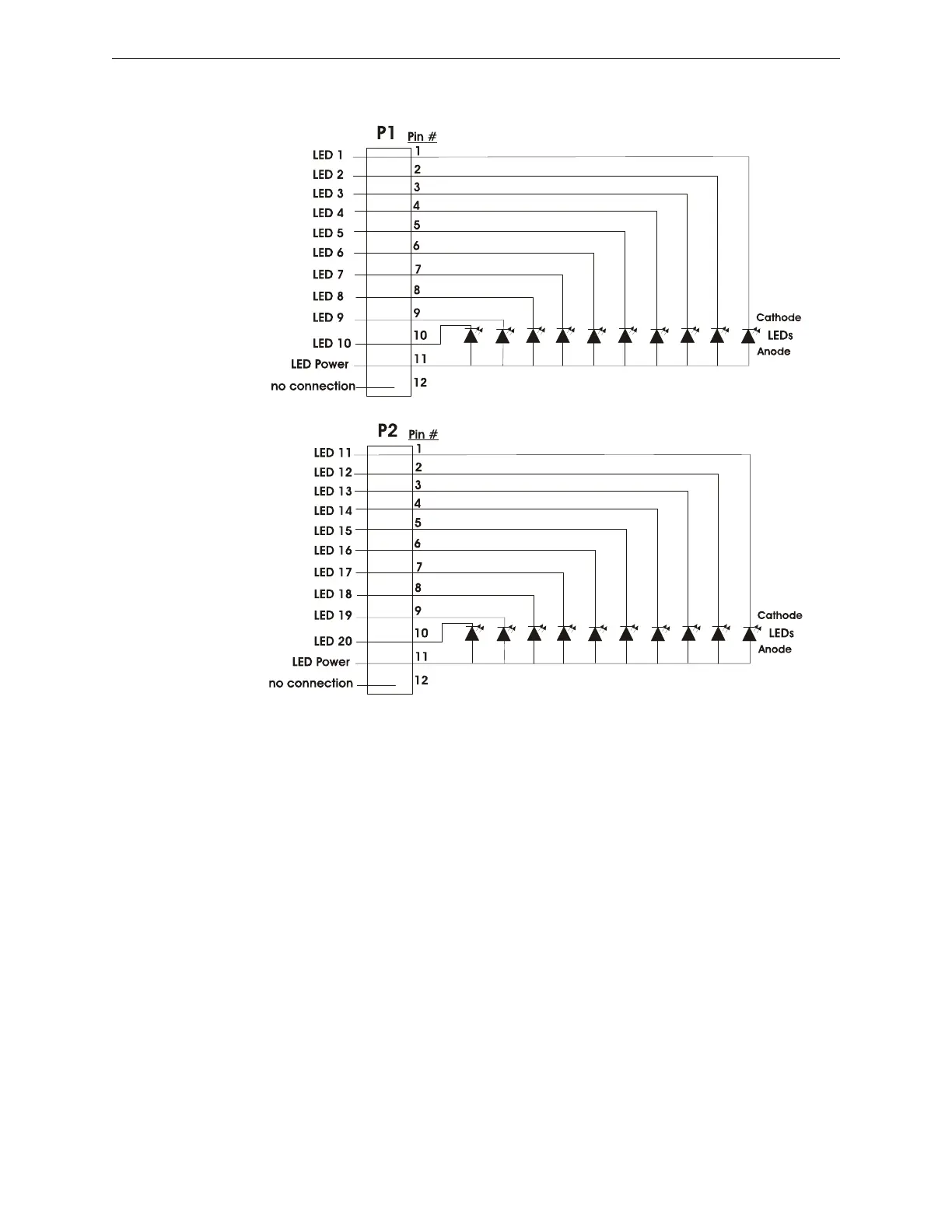

Figure 2.19 ANN-I/O LED Wiring
ann-IOleds.wmf
