5.1.3 Navigation in the menu tree
Pressing the button û takes the user from the measured value display to the
main menu.
Measurement point 1
C1
C2 Pa
Pa598.99
Pa29.07
1 2 3 4
Pa
U
\
1 2 3 4
Login
Quick access
Configuration
Info
A
A
A
A
U
û

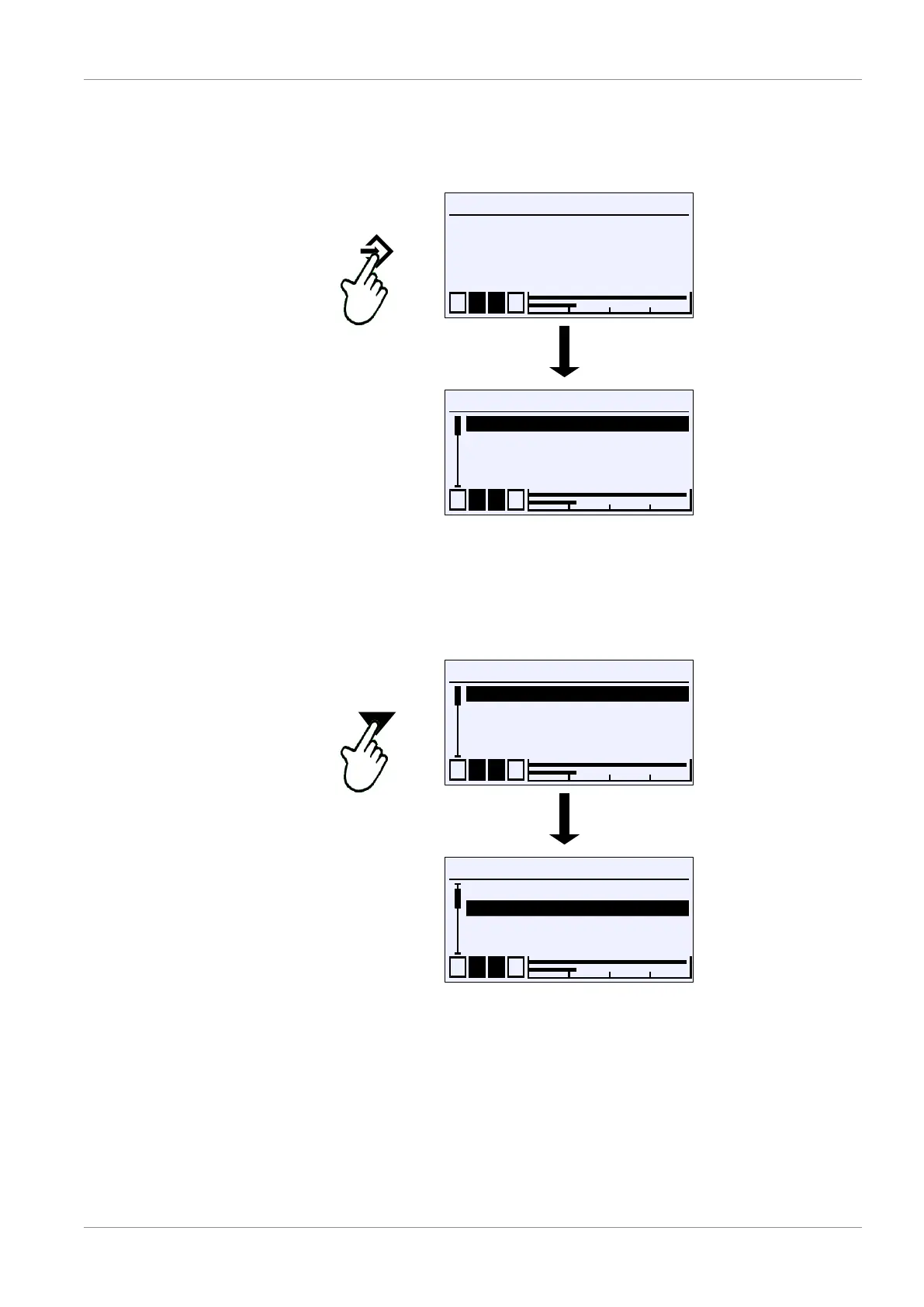

Fig.32: Call up the main menu (Level 0)
The menu has up to five levels called 'Level' hereinafter. The levels are
numbered from 0 to 4. Level 0 is the main menu. No distinction is made
between the menu and the parameters in this presentation. However, a menu
can be recognised on the indicator A .
\
1 2 3 4
Login
Quick access
Configuration
Info
A
A
A
A
U
\
1 2 3 4
Login
Quick access
Configuration
Info
A
A
A
A
U
ÿ
Fig.33: Page down menu (Level 0)
The buttons ÿ and þ are used to move the cursor through the menu. The
button û opens the menu and the submenu of the next level appears on the
display.
