5.5.3.3 Characteristic C3 (menu expansion)
The menu changes depending on the set operating mode of the measuring
channel.
5.5.3.3.1 Characteristic C3 (difference)
Directory: \Configuration\Channel 3\Characteristic C3
Level: 3
Characteristic C3
1 2 3 4
Displ.range C3 unit
Displ.range C3 start
Displ.range C3 end
Formula C3
U
A
A

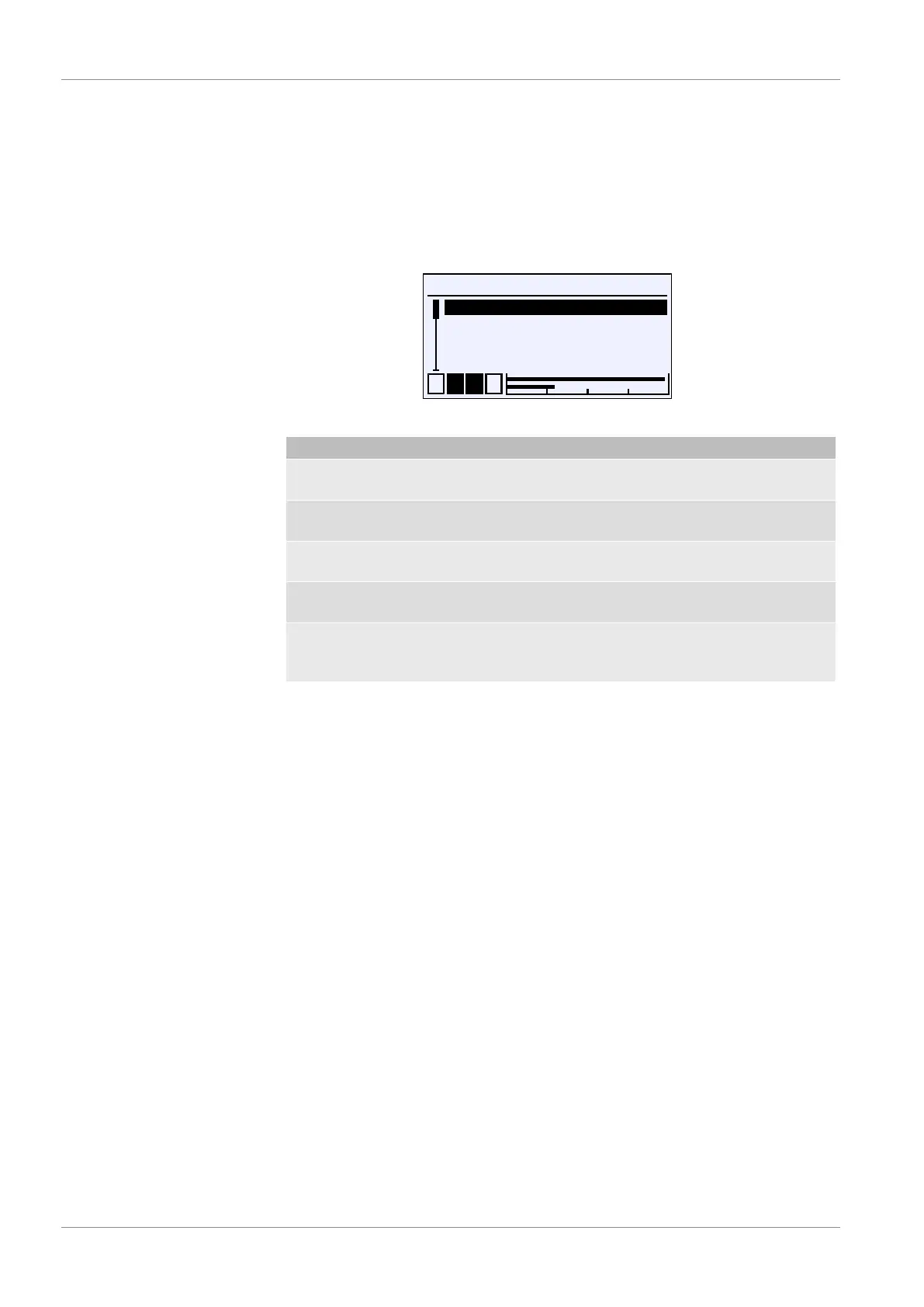

Fig.98: Characteristic C3 (difference)
Menu name Description
Displ.range C3 unit A This parameter can be used to assign
a unit to the difference.
Displ.range C3 start This parameter defines the beginning
of the display range.
Displ.range C3 end This parameter defines the end of the
display range.
Formula C3 A This menu is used to set Minuend and
Subtrahend.
Back E This represents the output (exit) of the
menu. This takes you back to the
Channel 3 menu.
