7.9 Construction design
Process connection Ø outside Ø inside
CK screw connections
made of aluminium
Hose 6 mm 4 mm
Hose 8 mm 6 mm
Pneumatic connector socket
in nickel-plated brass
Hose 6 mm 4 mm
Hose 8 mm 6 mm
Cutting ring connection
in stainless steel
Pipe 6 mm
Pipe 8 mm
Electrical connection 1-channel 2-channel
Connector 1 : Auxiliary energy, output 5-pin male 5-pin male
Connector 2 : Switching outputs 4-pin male 8-pin male
Installation position User-defined
Dimensions (without connections) 120 x 81.5 x 95 mm
Weight max. 380 g
7.9.1 Materials
Materials of the parts that come into contact with the medium
Silicon, PVC, FKM, aluminium, brass, stainless steel
Materials of the parts that come into contact with the surroundings
Polyester, PET, polyamide 6.6, aluminium, nickel-plated brass, stainless steel

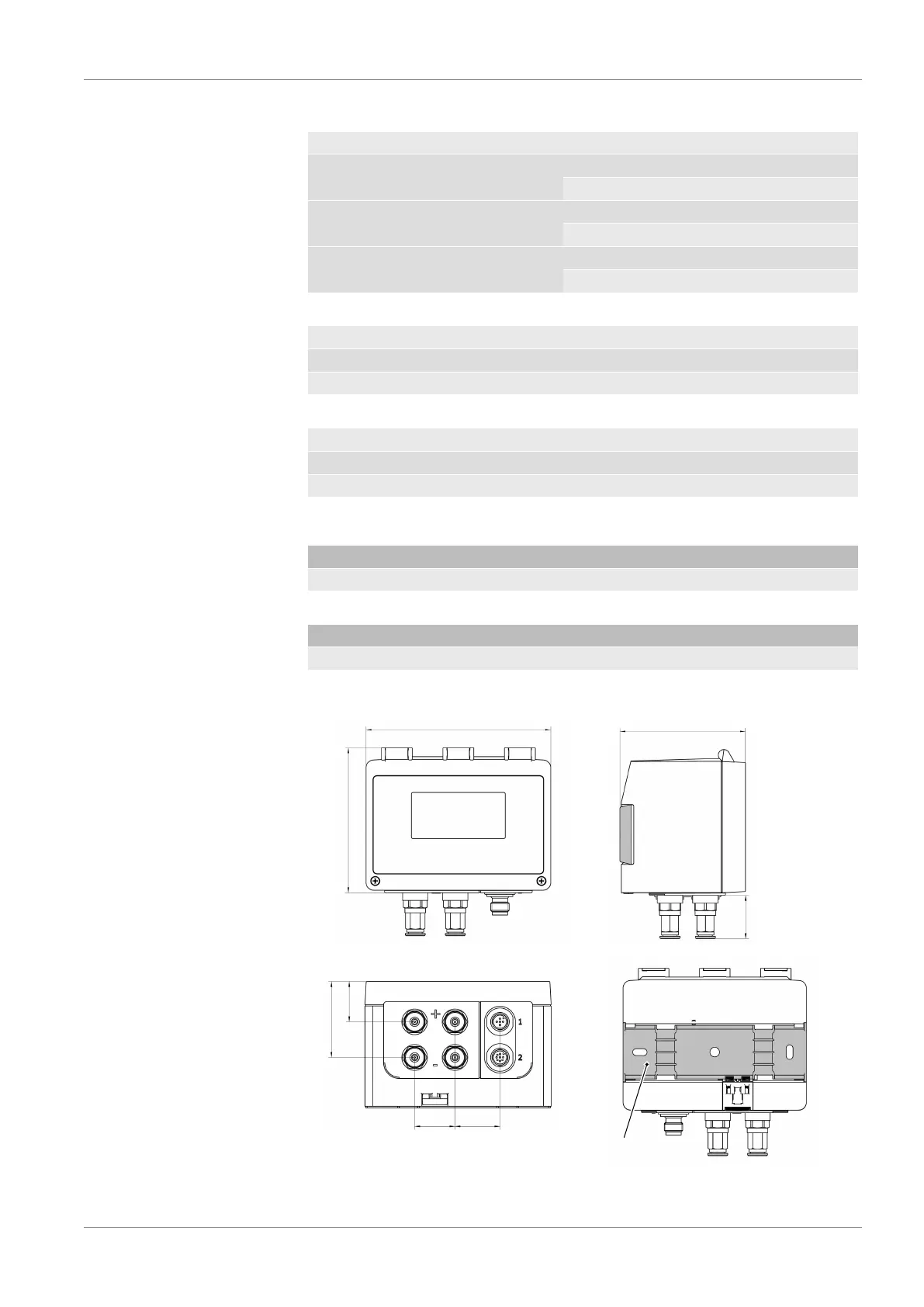

7.9.2 Dimensional drawings
120
95
81,5
26
49
26 29
28
Mounting rail
Fig.138: Dimensional picture
