5.5.5.2 SP1 function
Directory: \Configuration\Switch output\SP1 function
Level: 3
\...\...\SP1 function
1 2 3 4
Normally open
Normally closed
Back
S
E
U
R

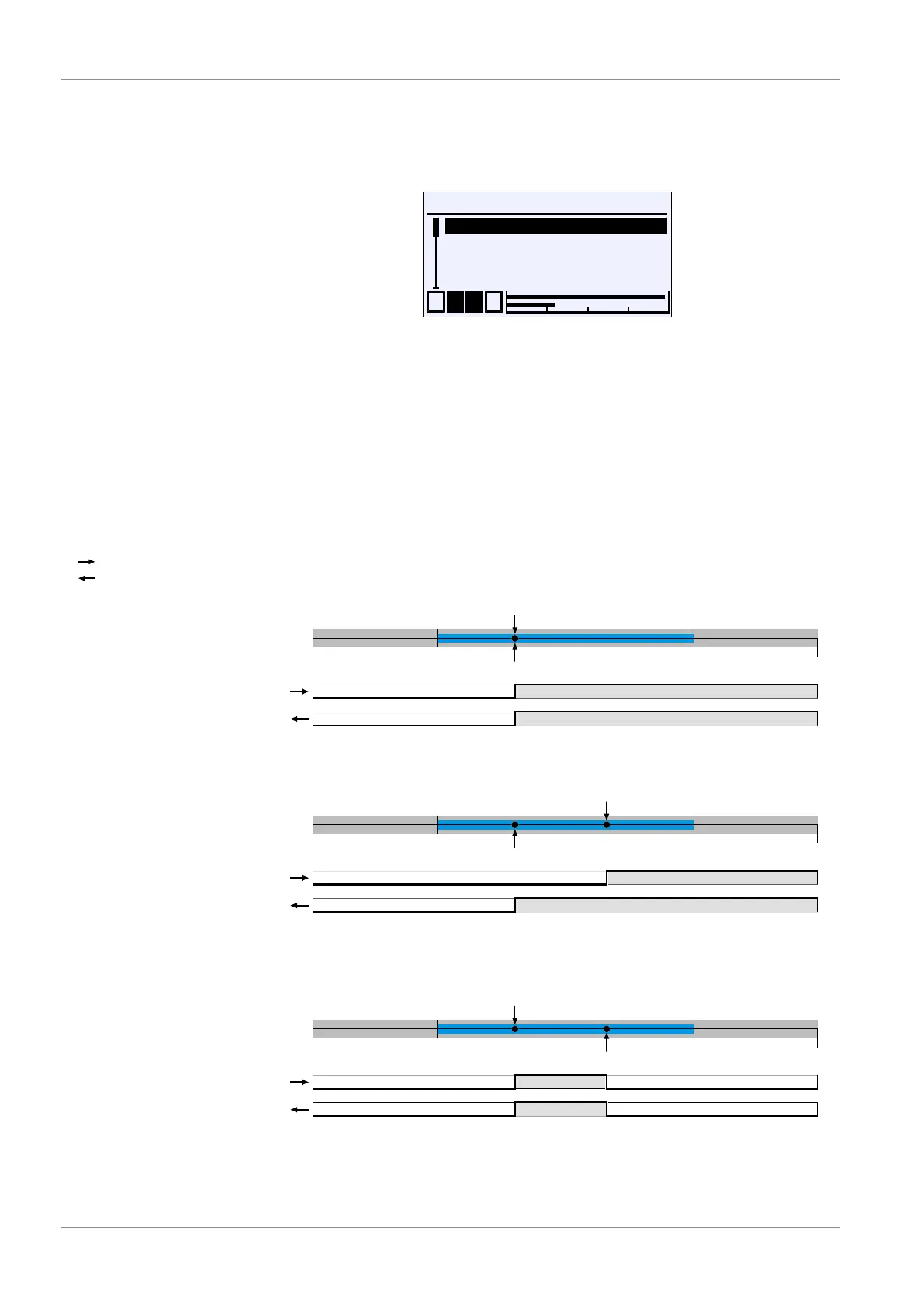

Fig.118: SP1 function
The function of this contact is defined with this parameter.
5.5.5.3 Switching function
The function of the individual parameters is explained for all switch points using
Switch point 1 as an example.
SP1 On defines the activation point, SP1 Off the deactivation point of switch
output 1. The values are shown in the valid unit and set accordingly. The values
are shown in the valid unit and set accordingly. Both parameters can be set in-
dependently over the entire value range.
Increasing input signal
dropping input signal
If the parameter SP1 on = SP1 off , the contact pulls, if the measured
value exceeds the parameter value. If the measured value undercuts the para-
meter value, the contact drops.
MA ME
SP1 On
SP1 Off
If the parameter SP1 on > SP1 off , the contact pulls, if the measured
value exceeds the SP1 on. The contact only drops again if SP1 Off is undercut.
MA ME
SP1 On
SP1 Off
If the parameter SP1 on < SP1 off , the contact pulls, if the measured
value lies between the parameter values:
SP1 on<Measured value<SP1off. Otherwise the contact will drop.
MA ME
SP1 On
SP1 Off
Fig.119: Switch point setting
