Delay
The switching behaviour of the contact can be delayed with the two parameters
SP1 delay on and SP1 delay off .
On
Off
On
Off
Time
SP1 delay on
SP1 delay off
SP1
SP1 delayed
Time

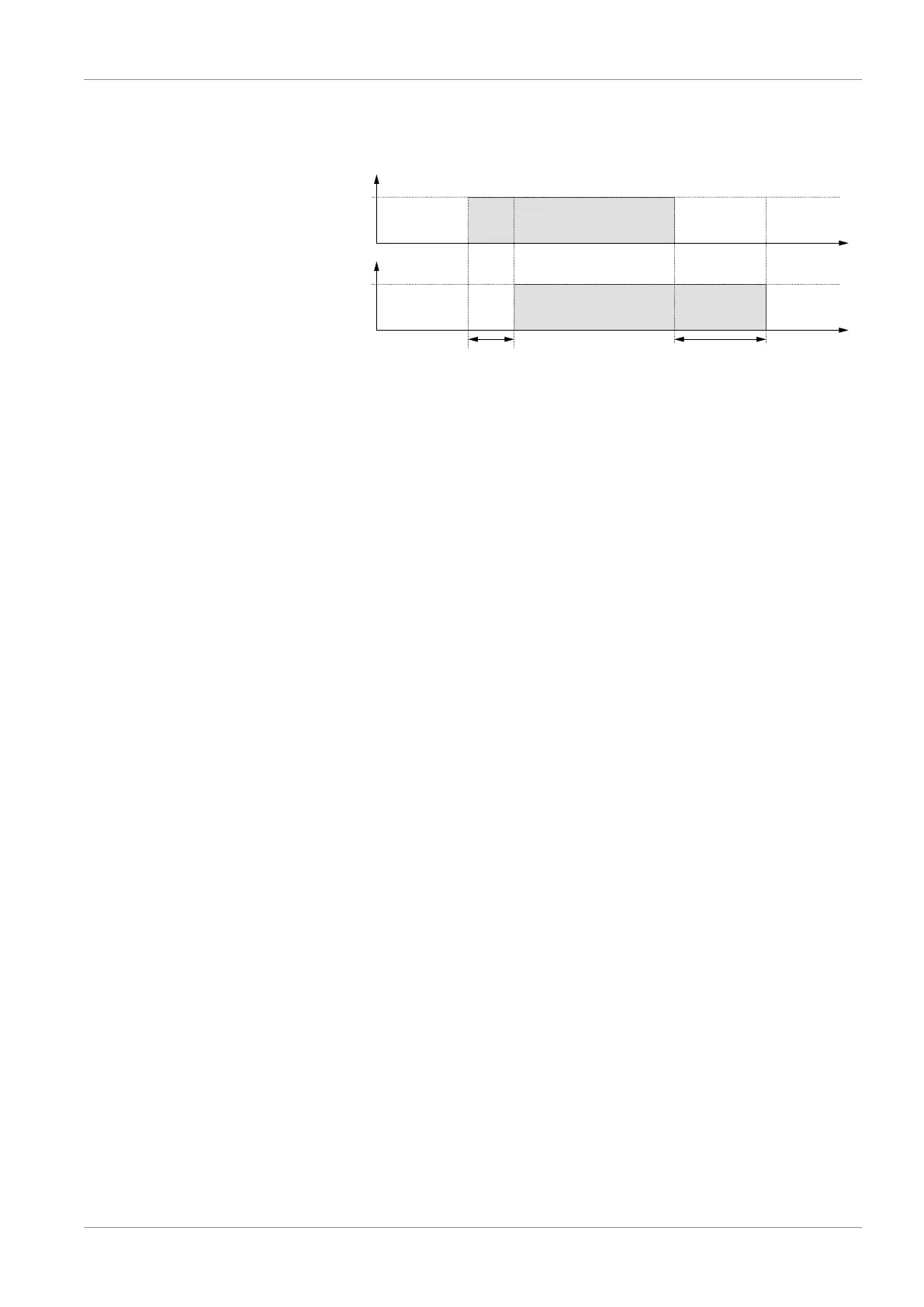

Fig.120: Delay
