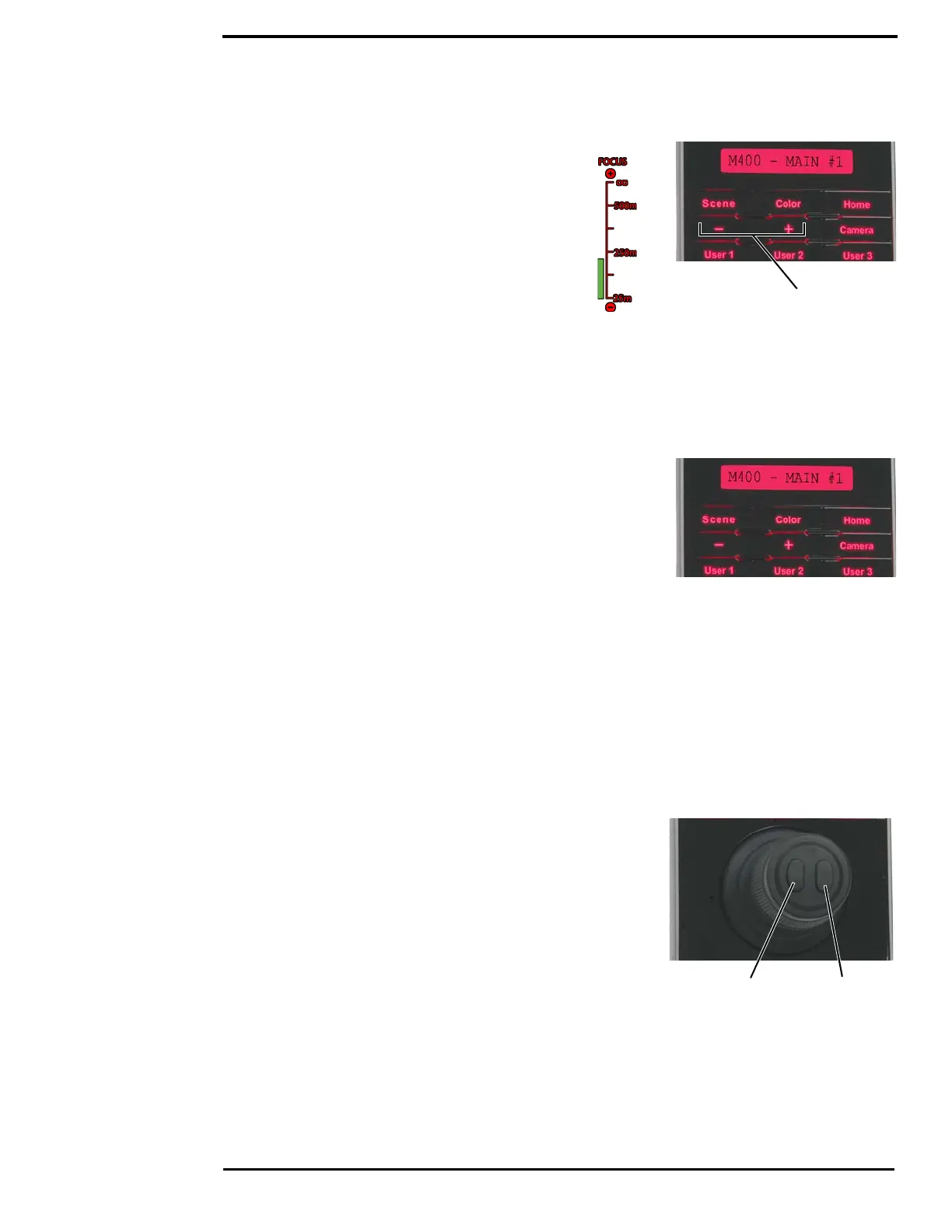

Focus Buttons
The M400 thermal camera can be focused either
manually or automatically. The visible-light camera
is always focused automatically.
The manual focus buttons are effective only when
the IR camera is the Active Camera.
the – button will move the focus nearer
the + button will move the focus farther away
During the manual focus operation, the OSD focus
bar will change accordingly.
Camera Button
Switch the Active Camera shown on the main video output. The buttons on the JCU II are effective
only on the Active Camera, except as noted.
User Buttons
The User buttons are programmable one-touch buttons that
quickly access the most often used settings or functions.
Configure the short-press action of this button from the User
Programmable Button menu entry (see page 27).
Default User Button Settings:
• User 1 – Auto Focus
• User 2 – Stabilization on/off
• User 3 – Spotlight
Display Camera and JCU II IP Address
Press the Color button while pushing the joystick forward; the IP address of the JCU II and then
the camera will display on the JCU II screen.
JCU II Joystick
The JCU II joystick and can be moved left or right, forward and
back, and twisted in either direction. The joystick movement is
translated to control the pan/tilt position of the camera and the
zoom setting.
Note: The joystick uses proportional control; therefore, the
farther it is rotated or directed from center, the faster the
camera will move.
Tilting the Camera
The camera has two tilt modes: Gaming and Pilot. When in Gaming mode (the default), moving
the joystick forward causes the camera to tilt up; moving the joystick back causes the camera to tilt
down.
To Next Page
